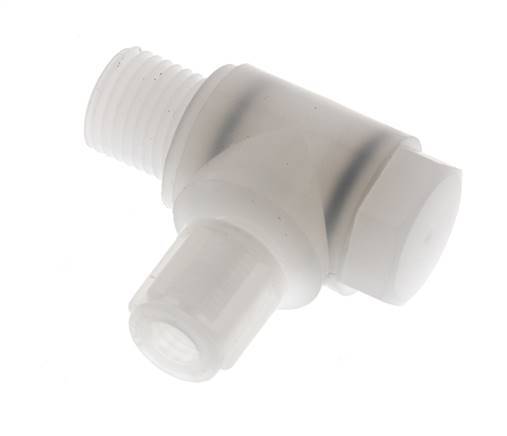

6x4mm & G1/4'' PVDF Elbow Compression Fitting with Male Threads with Banjo Bolt 10 bar
Reference:
F28HF
Brand:
Tameson
This pvdf elbow screw in connection is designed with one male threaded connection, one compression ring connection port and with a banjo bolt. Connection 1 is a 6x4 mm compression ring. Connection 2 has male G 1/4 inch threads. The maximum pressure is 10 bar (145 psi). The fitting is suitable for temperatures from -40 to 140 °C (-40 to 284 °F).
- Regular price
- $131.46
excl VAT
Shipping to United States: Free
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days
Description
Specifications
Downloads
Related products
Description
This pvdf elbow screw in connection is designed with one male threaded connection, one compression ring connection port and with a banjo bolt. Connection 1 is a 6x4 mm compression ring. Connection 2 has male G 1/4 inch threads. The maximum pressure is 10 bar (145 psi). The fitting is suitable for temperatures from -40 to 140 °C (-40 to 284 °F).
Pros:
- It can be used for very soft hoses, liquids, for strong movements between hose and connection or necessary chemical resistance
- It has FDA approval
Cons:
- Since it has a compression ring connection, it can only be used once
- It cannot be used with PTFE hoses
