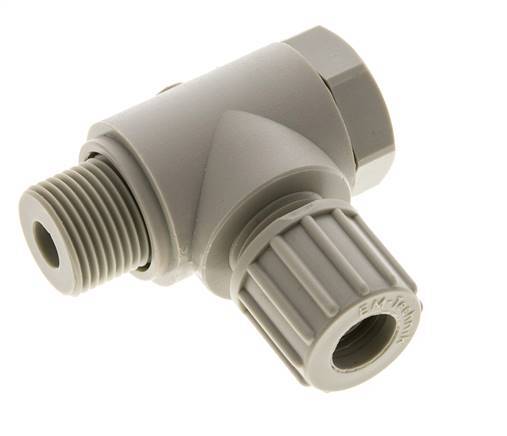

10x8mm & G3/8'' PP Elbow Compression Fitting with Male Threads with Banjo Bolt 10 bar
Reference:
F28H7
Brand:
Tameson
This pp elbow screw in connection is designed with one male threaded connection, one compression ring connection port and with a banjo bolt. Connection 1 is a 10x8 mm compression ring. Connection 2 has male G 3/8 inch threads. The maximum pressure is 10 bar (145 psi). The fitting is suitable for temperatures from 5 to 90 °C (41 to 194 °F).
- Regular price
- $29.88
excl VAT
Shipping to United States: Free
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 45 - 46 business days
Description
Specifications
Downloads
Related products
Description
This pp elbow screw in connection is designed with one male threaded connection, one compression ring connection port and with a banjo bolt. Connection 1 is a 10x8 mm compression ring. Connection 2 has male G 3/8 inch threads. The maximum pressure is 10 bar (145 psi). The fitting is suitable for temperatures from 5 to 90 °C (41 to 194 °F).
Pros:
- It can be used for very soft hoses, liquids, for strong movements between hose and connection or necessary chemical resistance
Cons:
- Since it has a compression ring connection, it can only be used once
- It cannot be used with PTFE hoses
