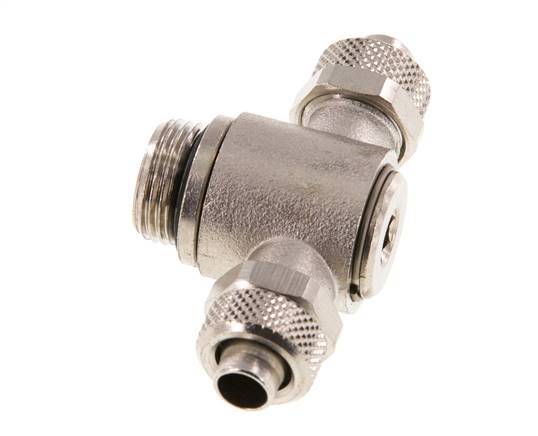

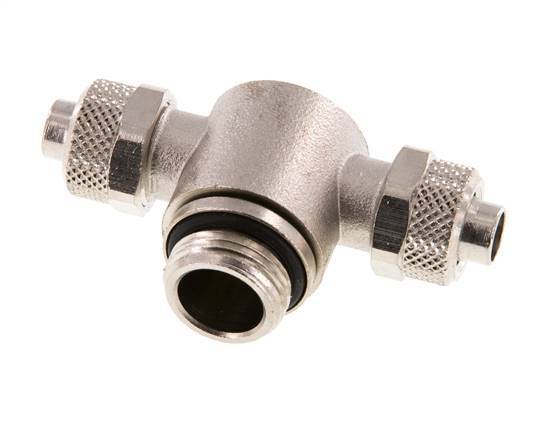

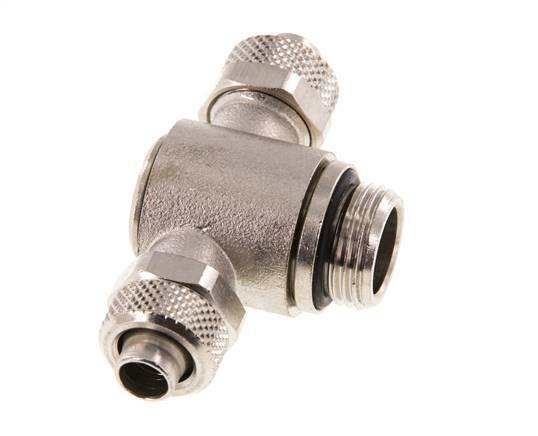

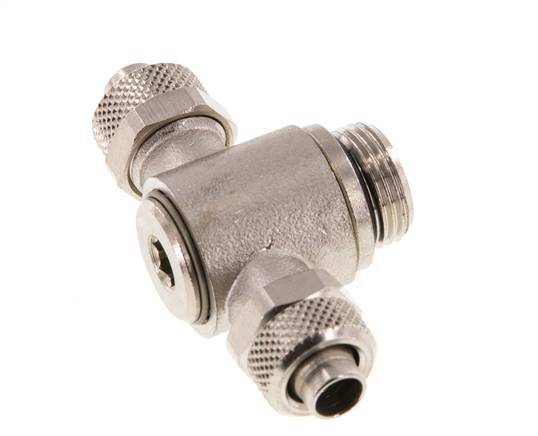

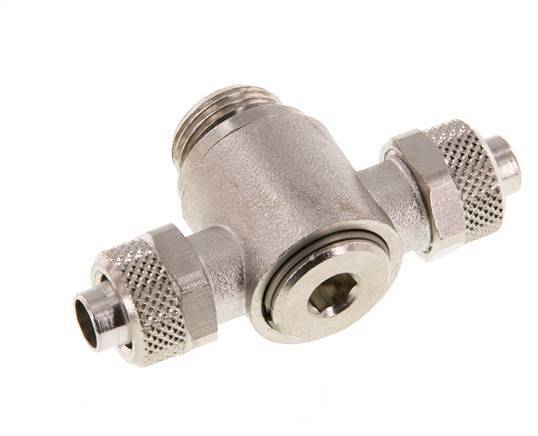

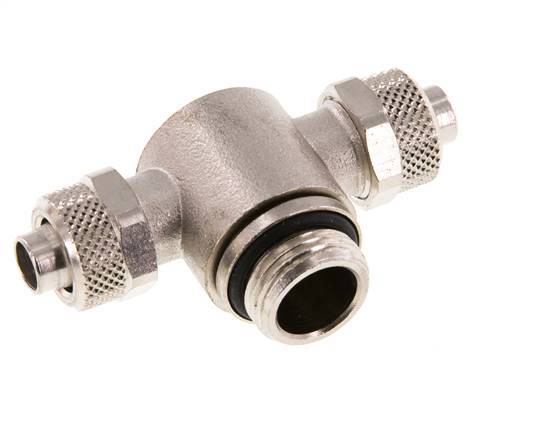

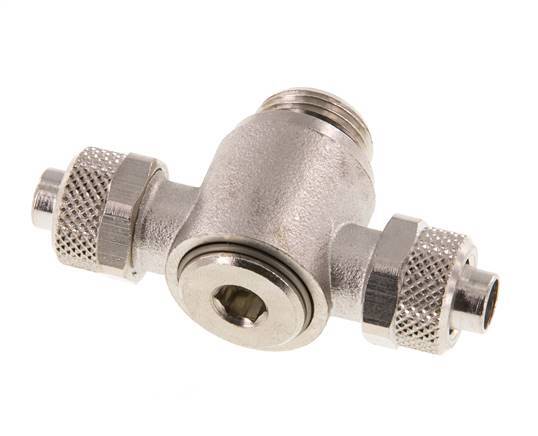

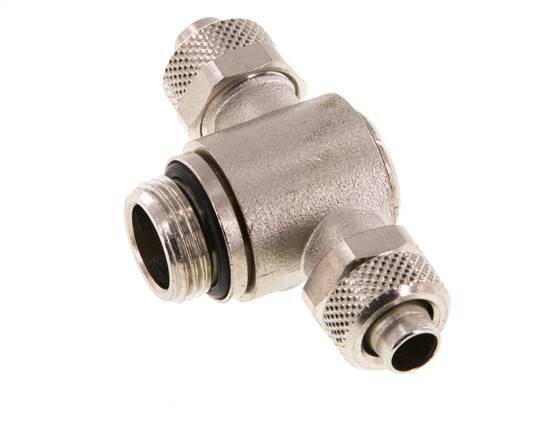

10x8 & G3/8'' Nickel plated Brass Tee Push-on Fitting with Male Threads Rotatable Inner Hexagon
Notice: This product is discontinued
This nickel plated brass tee push-on fitting is designed with two push-on connections and with one male threaded connection. Connection 1 is a 10x8 mm push-on connection. Connection 2 is a 10x8 mm push-on connection. Connection 3 has G 3/8 inch male threads. The operating pressure range is -0.95 to 15 bar (-14 to 218 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 70 °C (-4 to 158 °F).
Notice: This product is discontinued
Description
This nickel plated brass tee push-on fitting is designed with two push-on connections and with one male threaded connection. Connection 1 is a 10x8 mm push-on connection. Connection 2 is a 10x8 mm push-on connection. Connection 3 has G 3/8 inch male threads. The operating pressure range is -0.95 to 15 bar (-14 to 218 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 70 °C (-4 to 158 °F).
Pros:
- Easy assembly and disassembly with the push-on connection design
- It can be used for vacuum applications
- Thread connection is rotatable
- Suitable for neutral and non-corrosive media
- This push-in fitting has an inner hexagon for mounting
