Reference: F27S9
Brand: Tameson

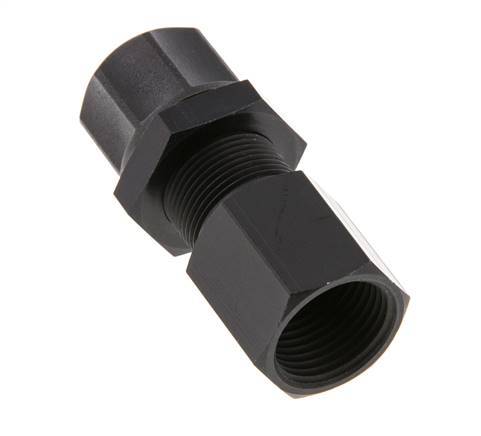

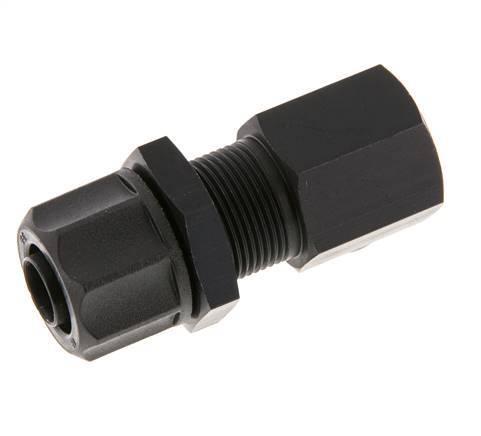

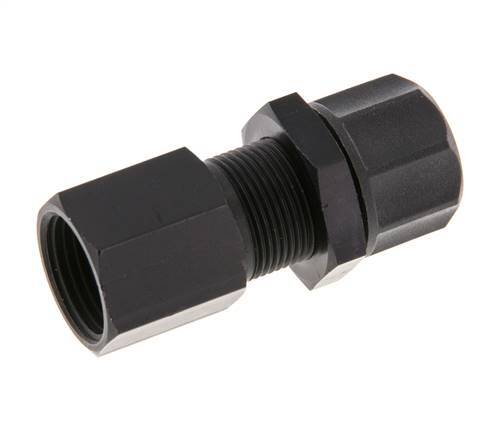

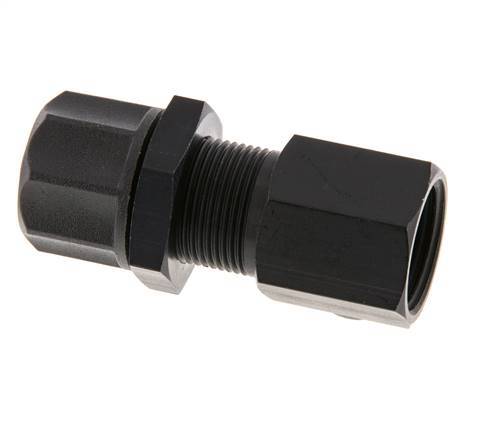

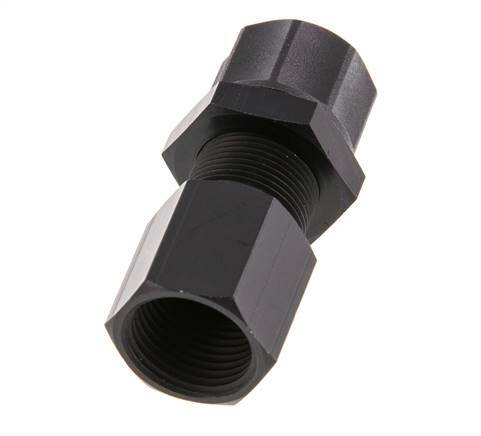

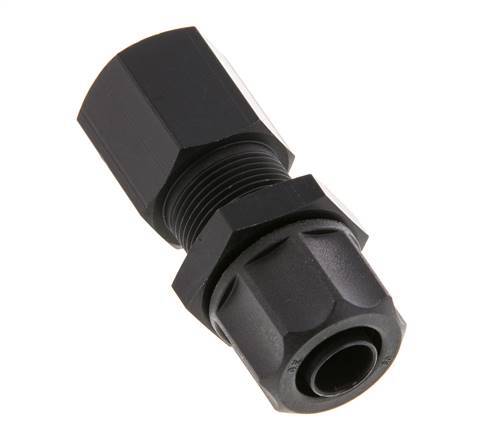

This aluminum straight push-on fitting is designed with one push-on connection and with one female threaded connection. Connection 1 is a 11.6x9 mm push-on connection. Connection 2 has G 3/8 inch female threads. The operating pressure range is -0.99 to 15 bar (-14 to 218 psi). The fitting is suitable for temperatures from -15 to 70 °C (5 to 158 °F). The bulkhead thread has an M 16x1 thread with a length of 9 mm.

View all
$13.91
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 13 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

This aluminum straight push-on fitting is designed with one push-on connection and with one female threaded connection. Connection 1 is a 11.6x9 mm push-on connection. Connection 2 has G 3/8 inch female threads. The operating pressure range is -0.99 to 15 bar (-14 to 218 psi). The fitting is suitable for temperatures from -15 to 70 °C (5 to 158 °F). The bulkhead thread has an M 16x1 thread with a length of 9 mm.

Pros:

  • Easy assembly and disassembly with the push-on connection design

Downloads

Specifications

Thread
3/8 inch
Push-on connection
Size of the push-on connection port.
9x11.6 mm
Connection type
Push-on, Inner thread cylindrical BSPP-G
Material
Housing material.
Aluminium
Min pressure (bar)
-0.99
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
15
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-15
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
70
Fitting features
Bulkhead, Vacuum
Bulkhead length (mm)
9
Bulkhead nut
M16 x 1
Material connection 1
Aluminium
Material connection 2
Aluminium
Shape
Straight
With drain
No
