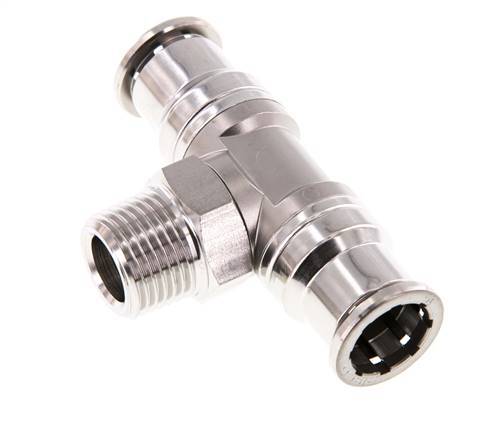

16mm x R1/2'' Inline Tee Push-in Fitting with Male Threads Stainless Steel FKM Rotatable
This is a 3 connection inline tee push-in fitting. Push-in fittings are ideal to create fast and reliable connections for pneumatic hoses. Connection 1 and 2 are 16 mm push-in ports and connection 3 has R 1/2 inch male threads. The body is made of stainless steel. The connection ports are made of stainless steel. The seal material is FKM. The operating pressure range is -0.95 to 10 bar (-14 to 145 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -15 to 120 °C (5 to 248 °F).
- Regular price
- $279.44
Description
This is a 3 connection inline tee push-in fitting. Push-in fittings are ideal to create fast and reliable connections for pneumatic hoses. Connection 1 and 2 are 16 mm push-in ports and connection 3 has R 1/2 inch male threads. The body is made of stainless steel. The connection ports are made of stainless steel. The seal material is FKM. The operating pressure range is -0.95 to 10 bar (-14 to 145 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -15 to 120 °C (5 to 248 °F). The push-in fitting is easily installed by pushing the pneumatic tube against the release ring-end of the fitting until it stops, and the internal claw secures it into place. It is easily uninstalled by pushing the release ring inward towards the fitting and pulling the tubing back.
Pros:
- Quick and easy installation and release of pneumatic tubing
- It can be used for vacuum applications
- The threaded connection is rotatable
- This push-in fitting has an outer hexagon for mounting
- Suitable for use with aggressive media
