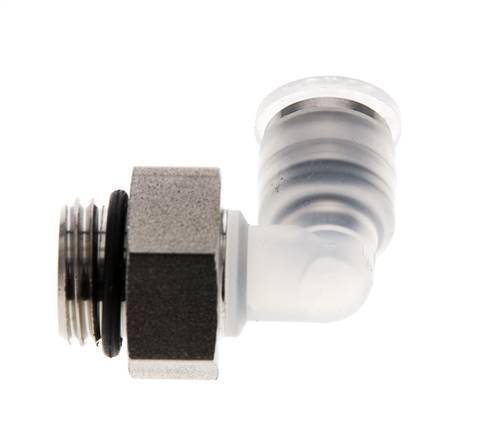

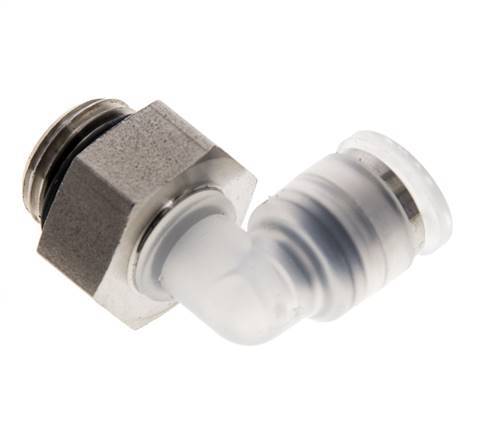

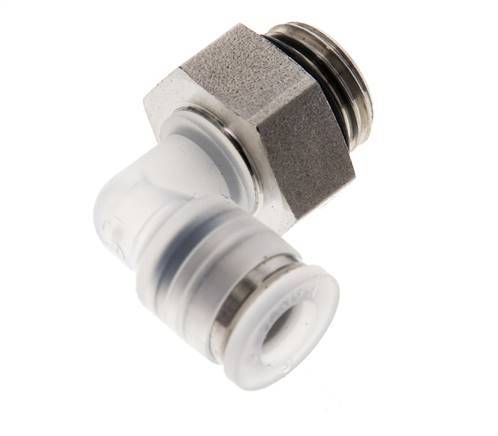

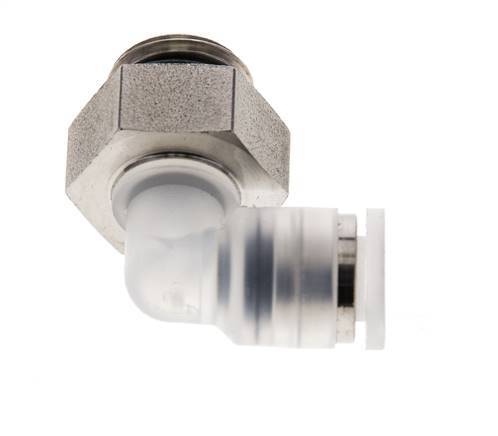

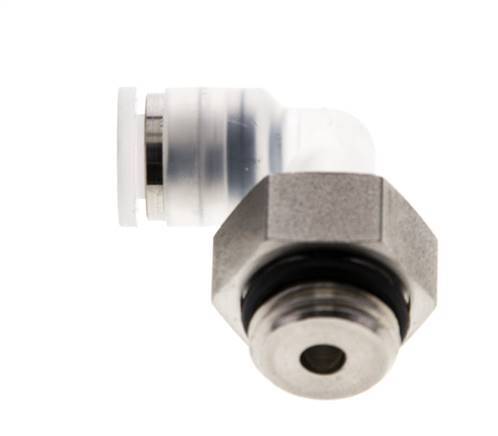

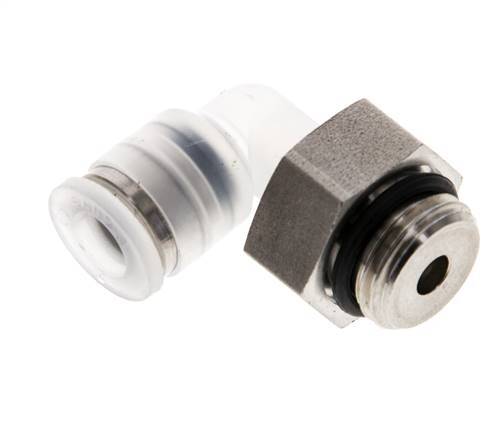

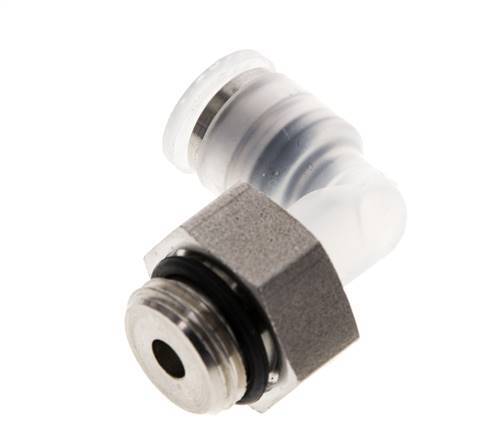

6mm x G1/4'' 90deg Elbow Push-in Fitting with Male Threads PA/Stainless Steel EPDM Rotatable

This is a 2 connection elbow push-in fitting. Push-in fittings are ideal to create fast and reliable connections for pneumatic hoses. Connection 1 is a 6 mm push-in port. Connection 2 has G 1/4 inch male threads. The male thread connection has an O-ring seal. The body is made of Polypropylene. The connection ports are made of stainless steel and polypropylene. The seal material is EPDM. The operating pressure range is -0.95 to 9 bar (-14 to 131 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 80 °C (-4 to 176 °F). The push-in fitting is easily installed by pushing the pneumatic tube against the release ring-end of the fitting until it stops, and the internal claw secures it into place. It is easily uninstalled by pushing the release ring inward towards the fitting and pulling the tubing back.

Pros:

• Quick and easy installation and release of pneumatic tubing
• The male thread connection has an O-ring seal
• It can be used for vacuum applications
• The threaded connection is rotatable
• This push-in fitting has an outer hexagon for mounting
• This fitting is made of hydrolysis-resistant materials
• More economical than any material
