1/2'' x 1/4'' NPT Inline Tee Push-in Fitting with Male Threads Brass/PBT NBR Rotatable

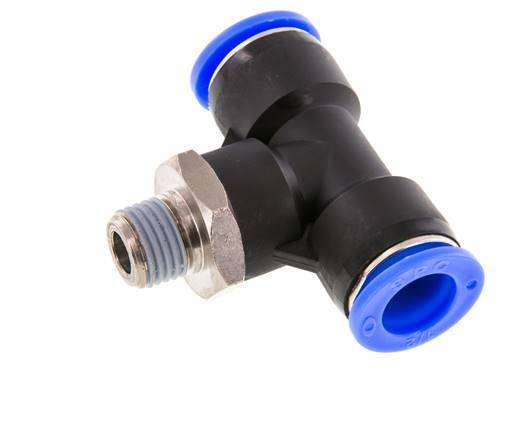

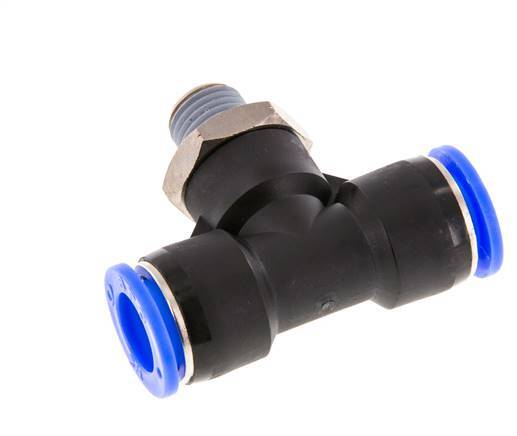

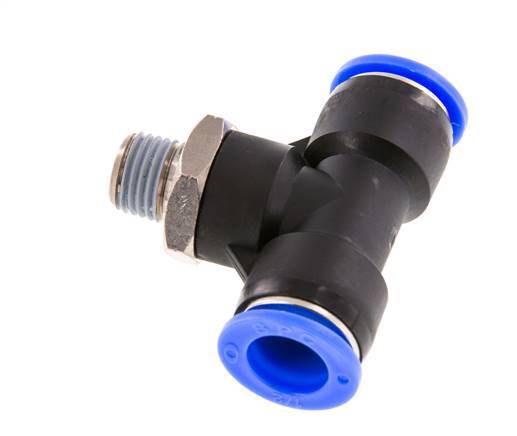

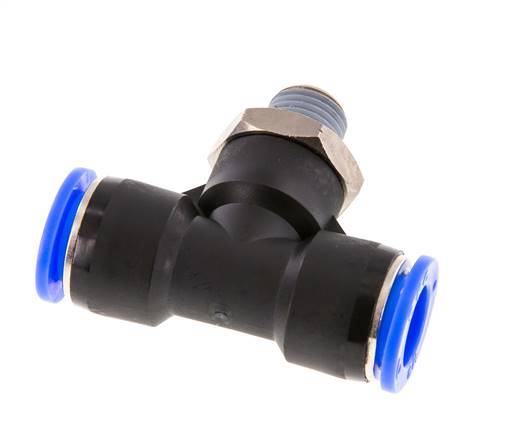

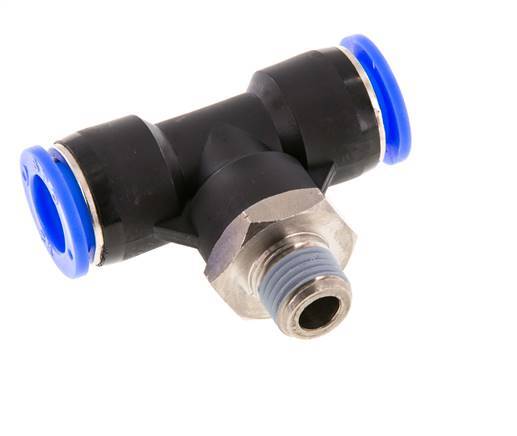

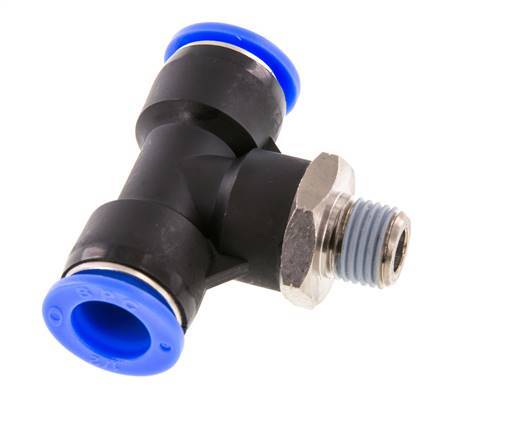

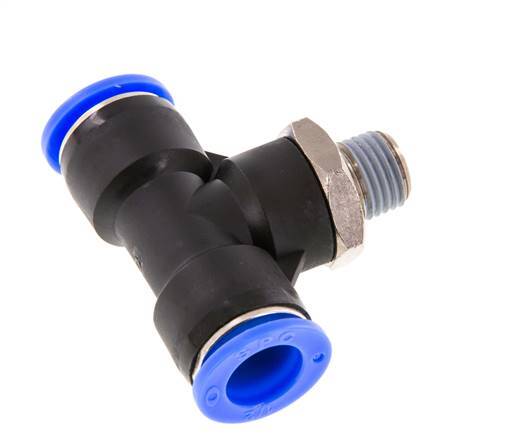

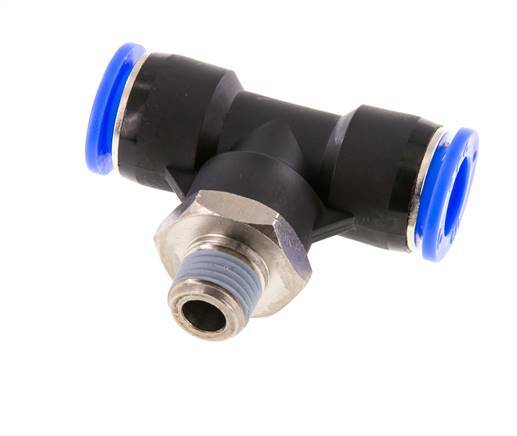

This is a 3 connection inline tee push-in fitting. Push-in fittings are ideal to create fast and reliable connections for pneumatic hoses. Connection 1 and 2 are 1/2 inch (12.7 mm) push-in ports and connection 3 has 1/4 inch NPT male threads. The male thread connection has PTFE-coating. The body is made of PBT. The connection ports are made of nickel plated brass and PBT. The seal material is NBR. The operating pressure range is -0.95 to 10 bar (-14 to 145 psi), making it suitable for vacuums. The fitting is suitable for temperatures from 0 to 60 °C (32 to 140 °F). The push-in fitting is easily installed by pushing the pneumatic tube against the release ring-end of the fitting until it stops, and the internal claw secures it into place. It is easily uninstalled by pushing the release ring inward towards the fitting and pulling the tubing back.

Pros:

• Quick and easy installation and release of pneumatic tubing
• The male thread connection is PTFE-coated
• It can be used for vacuum applications
• The threaded connection is rotatable
• This push-in fitting has an outer hexagon for mounting
• This fitting can be used with hoses of imperial size
• Suitable for use with oiled and unoiled compressed air
