Reference: F2755-X20
Brand: Tameson

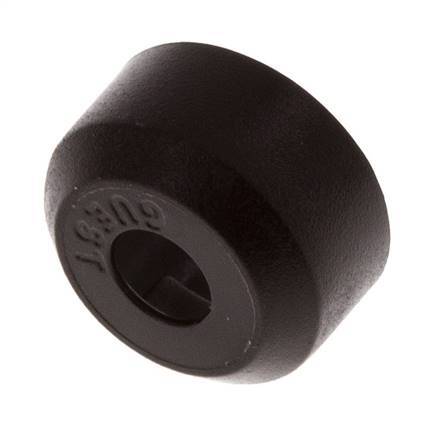

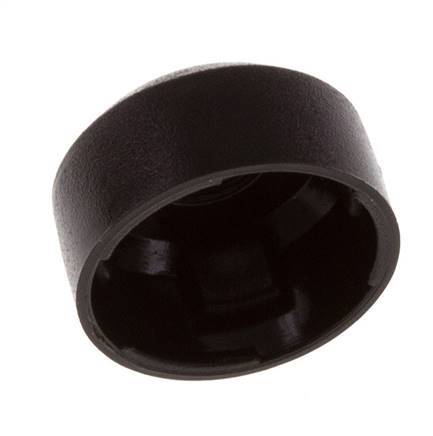

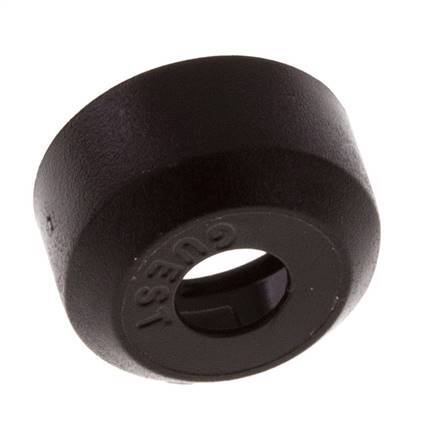

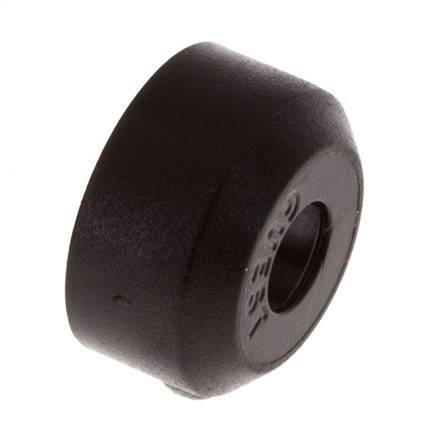

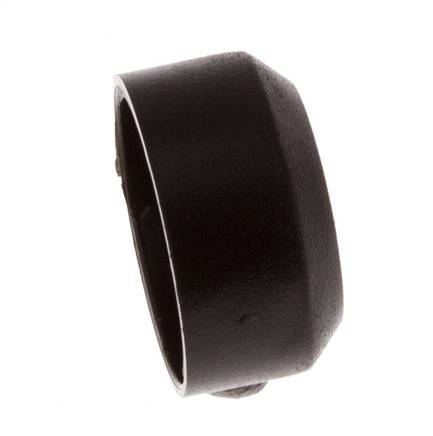

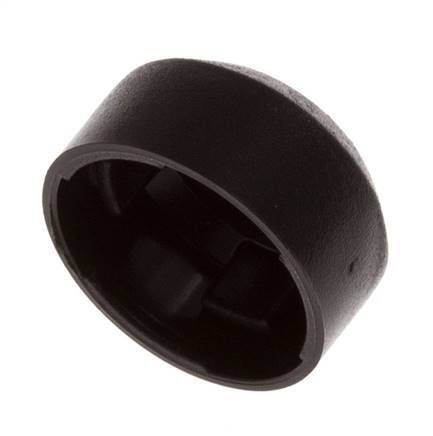

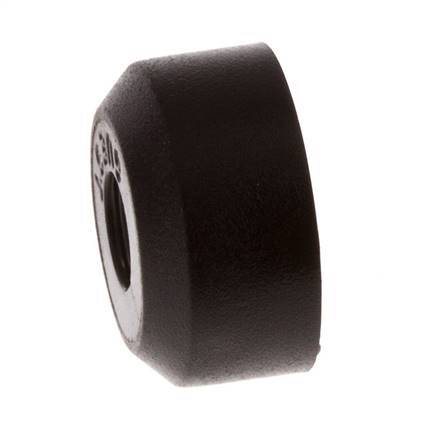

This is a safety cap for a push-in fitting. The body is made of POM. The connection port is made of POM. The operating pressure range is -0.95 to 16 bar (-14 to 232 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 70 °C (-4 to 158 °F).

Contains 20 pieces

View all
$11.84
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 2 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This is a safety cap for a push-in fitting. The body is made of POM. The connection port is made of POM. The operating pressure range is -0.95 to 16 bar (-14 to 232 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 70 °C (-4 to 158 °F). The push-in fitting is easily installed by pushing the pneumatic tube against the release ring-end of the fitting until it stops, and the internal claw secures it into place. It is easily uninstalled by pushing the release ring inward towards the fitting and pulling the tubing back.

Pros:

  • Quick and easy installation and release of pneumatic tubing
  • It can be used for vacuum applications
  • It has FDA, NSF, WRC, ACS and KTW approvals
  • Suitable for use with liquids, foods, and mild chemicals

Downloads

Specifications

Push-in connection
Size of the push-in connection port.
5 mm
Connection type
Push-in
Fitting features
Vacuum
Material
Housing material.
Polyoxymethylene (POM)
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
16
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-20
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
70
Min pressure (bar)
-0.95
Approval
Certifications or approvals indicating safety, quality, or performance standards met.
KTW, FDA, NSF, WRC, ACS
With drain
No
Material connection 1
Polyoxymethylene (POM)
