1/4'' x 1/4'' NPT Plug-in Fitting with Male Threads POM EPDM [10 Pieces]

1/4'' x 1/4'' NPT Plug-in Fitting with Male Threads POM EPDM [10 Pieces]
1/4'' x 1/4'' NPT Plug-in Fitting with Male Threads POM EPDM [10 Pieces]
1/4'' x 1/4'' NPT Plug-in Fitting with Male Threads POM EPDM [10 Pieces]
1/4'' x 1/4'' NPT Plug-in Fitting with Male Threads POM EPDM [10 Pieces]
1/4'' x 1/4'' NPT Plug-in Fitting with Male Threads POM EPDM [10 Pieces]
1/4'' x 1/4'' NPT Plug-in Fitting with Male Threads POM EPDM [10 Pieces]
1/4'' x 1/4'' NPT Plug-in Fitting with Male Threads POM EPDM [10 Pieces]
1/4'' x 1/4'' NPT Plug-in Fitting with Male Threads POM EPDM [10 Pieces]
1/4'' x 1/4'' NPT Plug-in Fitting with Male Threads POM EPDM [10 Pieces]
1/4'' x 1/4'' NPT Plug-in Fitting with Male Threads POM EPDM [10 Pieces]
1/4'' x 1/4'' NPT Plug-in Fitting with Male Threads POM EPDM [10 Pieces]
1/4'' x 1/4'' NPT Plug-in Fitting with Male Threads POM EPDM [10 Pieces]
1/4'' x 1/4'' NPT Plug-in Fitting with Male Threads POM EPDM [10 Pieces]
1/4'' x 1/4'' NPT Plug-in Fitting with Male Threads POM EPDM [10 Pieces]
1/4'' x 1/4'' NPT Plug-in Fitting with Male Threads POM EPDM [10 Pieces]
1/4'' x 1/4'' NPT Plug-in Fitting with Male Threads POM EPDM [10 Pieces]
1/4'' x 1/4'' NPT Plug-in Fitting with Male Threads POM EPDM [10 Pieces]
1/4'' x 1/4'' NPT Plug-in Fitting with Male Threads POM EPDM [10 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: F26YU-X10
Brand: Tameson

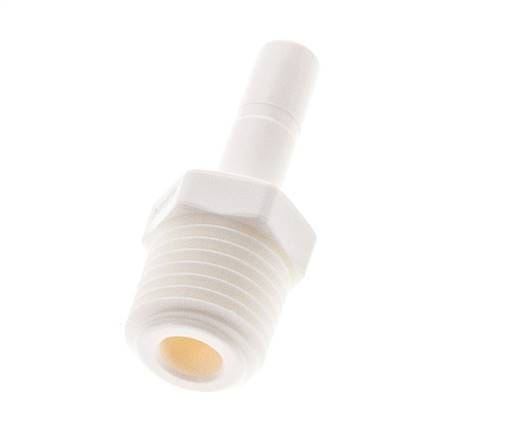

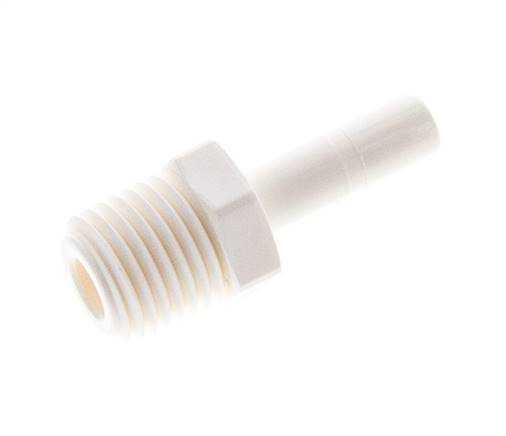

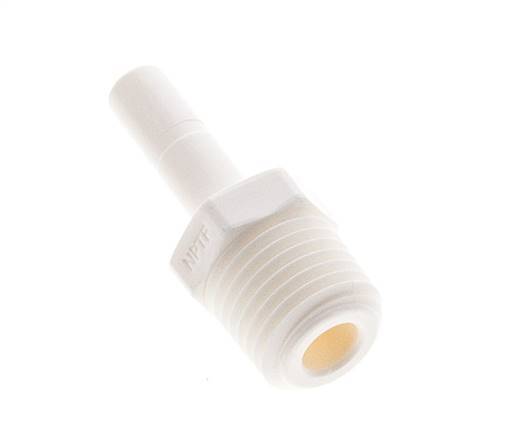

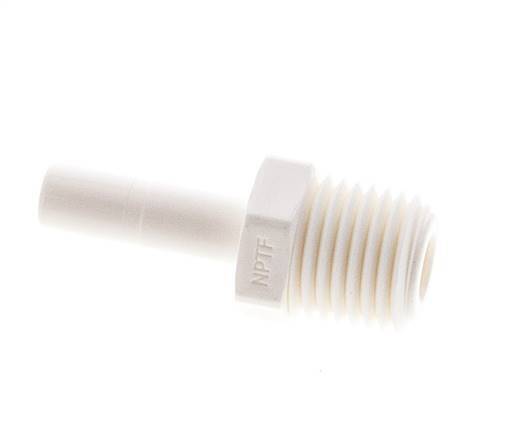

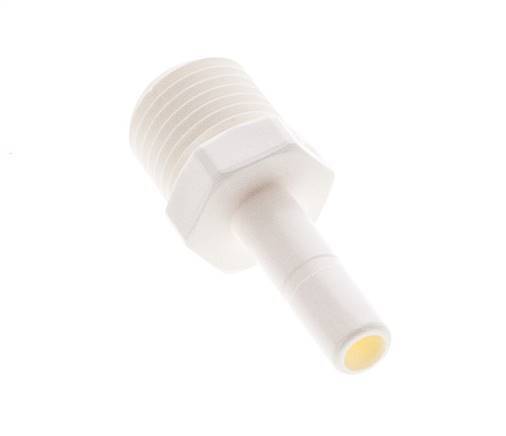

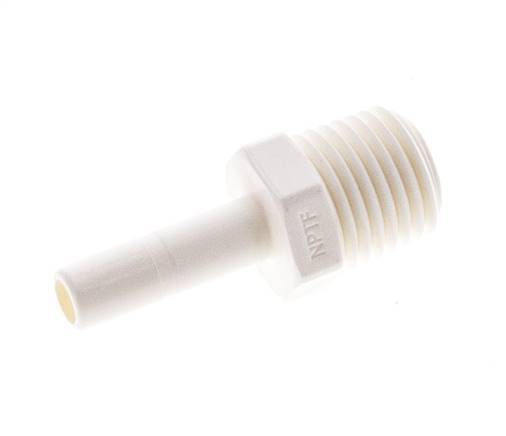

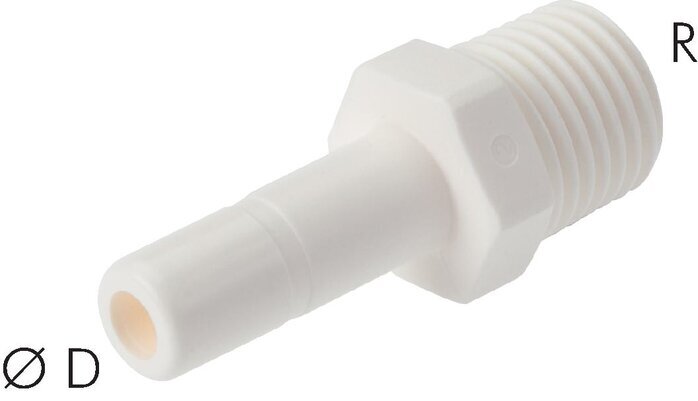

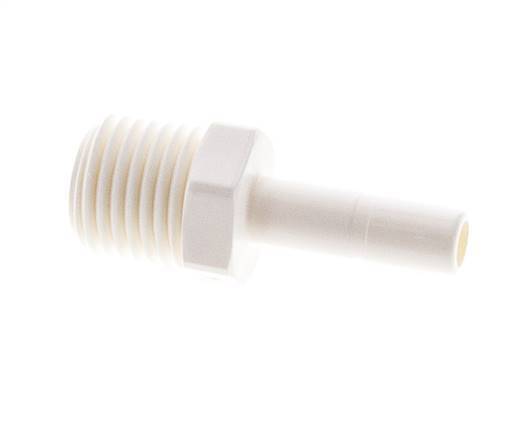

This is a plug-in fitting. It has connection ports to connect a push-in fitting to a hose, pipe or another pneumatic component. Connection 1 is a 1/4 inch (6.35 mm) plug, also called a plug-in connection and connection 2 has 1/4 inch NPT male threads. The body is made of POM. The connection ports are made of POM. The seal material is EPDM. The operating pressure range is -0.95 to 16 bar (-14 to 232 psi), making it suitable for vacuums. The fitting is suitable for temperatures from 0 to 65 °C (32 to 149 °F).

Contains 10 pieces

View all
$11.21 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 11 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications

Description

This is a plug-in fitting. It has connection ports to connect a push-in fitting to a hose, pipe or another pneumatic component. Connection 1 is a 1/4 inch (6.35 mm) plug, also called a plug-in connection and connection 2 has 1/4 inch NPT male threads. The body is made of POM. The connection ports are made of POM. The seal material is EPDM. The operating pressure range is -0.95 to 16 bar (-14 to 232 psi), making it suitable for vacuums. The fitting is suitable for temperatures from 0 to 65 °C (32 to 149 °F).

Pros:

  • It can be used for vacuum applications
  • This push-in fitting has an outer hexagon for mounting
  • Suitable for use with fluids, foods, mild chemicals, and unoiled compressed air

Specifications

Mounting bracket
EV006239
Mounting bracket
TV001233
Mounting bracket
EV020241, TV000201
Mounting bracketi
EV003225
Mounting bracketi
EV006730
Mounting bracket
-0.95
Mounting bracketi
16
Mounting bracketi
0
Mounting bracketi
65
Mounting bracketi
TV001313
Mounting bracket
TV000433, TV001304
Mounting bracket
EV003225
Mounting bracket
EV003225
Mounting bracket
EV000164
Mounting bracket
No
