Reference: F26PD
Brand: Tameson

This is a nickel-plated brass spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. It has 8 mm push-in fittings on both sides. It has an NBR seal that makes it suitable for applications within a temperature range from -20 to 80 °C (-4 to 176 °F). The operating pressure range is 0.2 to 10 bar (3 to 145 psi).

View all
$26.93
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 85 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

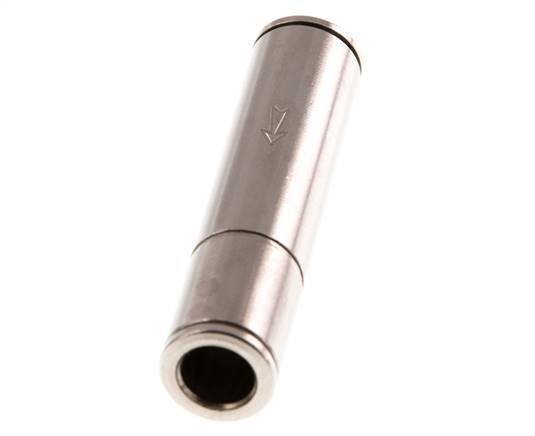

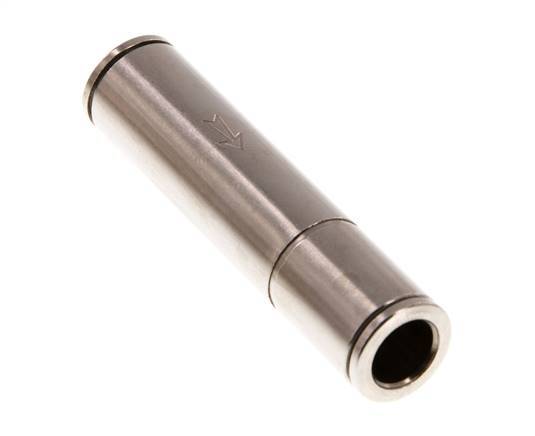

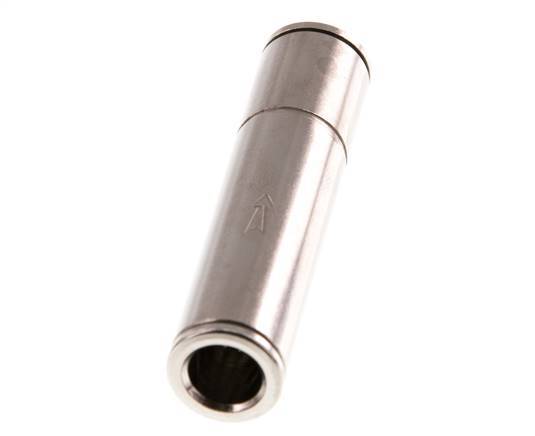

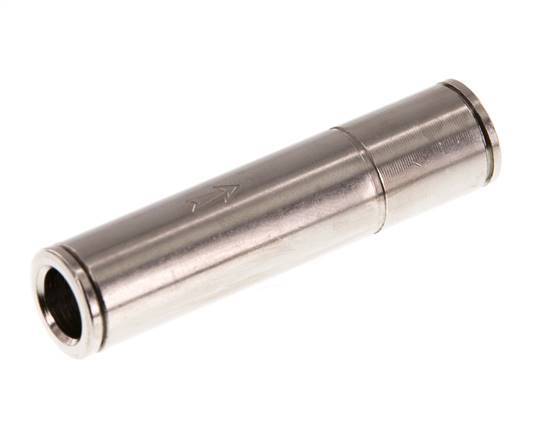

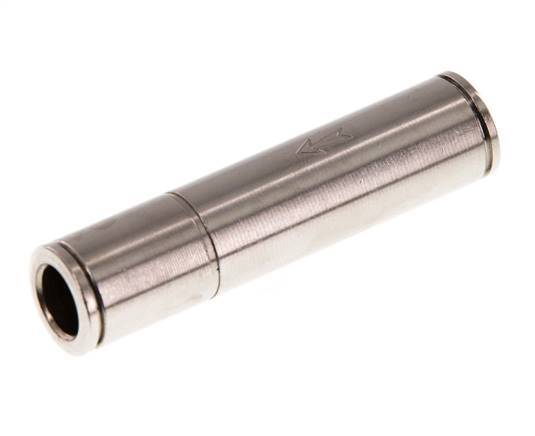

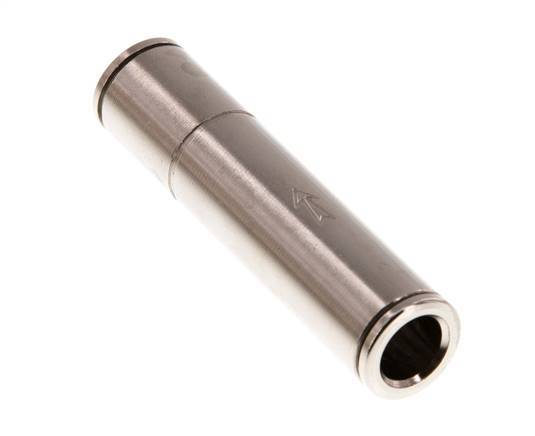

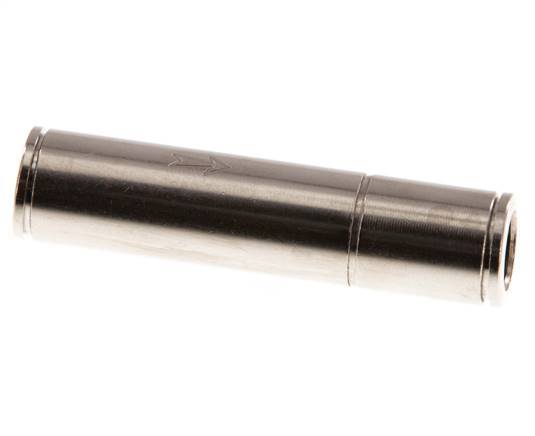

This is a nickel-plated brass spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. It has 8 mm push-in fittings on both sides. It has an NBR seal that makes it suitable for applications within a temperature range from -20 to 80 °C (-4 to 176 °F). The operating pressure range is 0.2 to 10 bar (3 to 145 psi). There is an arrow on the body of the fitting indicating flow direction.

Pros:

  • It has a push-in connection for easy installation and release for pneumatic hosing
  • Suitable for neutral and non-corrosive media

Downloads

Specifications

Push-in connection
Size of the push-in connection port.
8 mm
Connection type
Push-in
Seal material
The choice for sealing materials mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart for substance compatibility.
NBR (nitrile rubber)
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
10
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-20
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
80
Min opening pressure (bar)
A check valve's opening pressure, or cracking pressure, is the pressure at which the valve opens and begins to allow fluid to pass.
0.2
Valve shape
The shape of the housing.
Inline spring closed
Model
Straight
Surface protection
The type of surface protection of the component.
Nickel-plated
