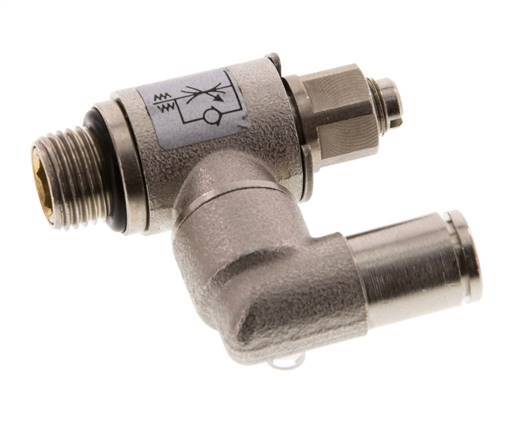

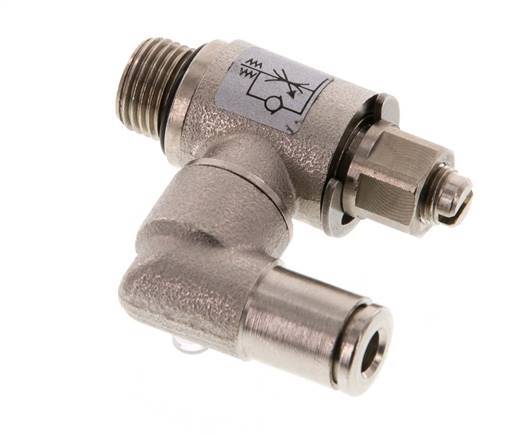

Flow Control Valve Meter-Out Rotatable 4 mm - G1/8'' Brass Slotted Screw
This is a nickel-plated brass meter-out rotatable pneumatic flow control valve for one-directional adjustable control of the air flow. It has a 4 mm push-in fitting on one side and a G 1/8 inch male threaded port on the other side. It has NBR/Plastic seals that make it suitable for applications within a temperature range from -20 to 80 °C (-4 to 176 °F). The operating pressure range is 0.2 to 10 bar (3 to 145 psi). Use the rotatable needle to adjust the orifice size that defines the flow rate in one direction.
- Regular price
- $19.50
Description
This is a nickel-plated brass meter-out rotatable pneumatic flow control valve for one-directional adjustable control of the air flow. It has a 4 mm push-in fitting on one side and a G 1/8 inch male threaded port on the other side. It has NBR/Plastic seals that make it suitable for applications within a temperature range from -20 to 80 °C (-4 to 176 °F). The operating pressure range is 0.2 to 10 bar (3 to 145 psi). Use the rotatable needle to adjust the orifice size that defines the flow rate in one direction.
Pros:
- It has a push-in connection for easy installation and release for pneumatic hosing
- The threaded connection is positionable
