6mm x R1/8'' Double 90deg Elbow Push-in Fitting with Male-Female Threads Brass/PA 66 NBR Rotatable [2 Pieces]
Reference: F25CH-X2
Brand: Tameson

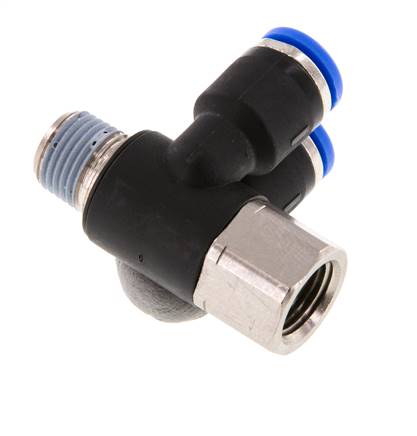

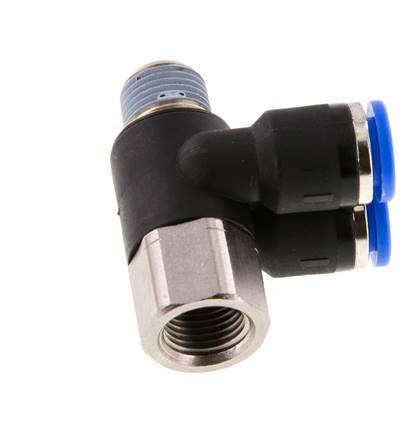

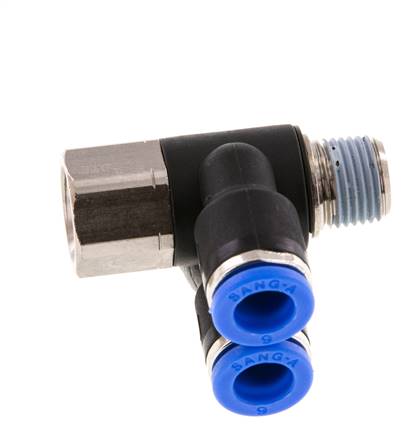

This is a 4 connection double 90 deg elbow push-in fitting. Push-in fittings are ideal to create fast and reliable connections for pneumatic hoses. Connection 1 and 2 have 6 mm push-in port, connection 3 has a R 1/8 inch male threads and connection 4 has R 1/8 inch female threads. The male thread connection has PTFE-coating. The body is made of brass / PA 66. The connection ports are made of brass and PA 66. The seal material is NBR. The operating pressure range is -0.95 to 20 bar (-14 to 290 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 80 °C (-4 to 176 °F).

Contains 2 pieces

View all
$13.31
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 2 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This is a 4 connection double 90 deg elbow push-in fitting. Push-in fittings are ideal to create fast and reliable connections for pneumatic hoses. Connection 1 and 2 have 6 mm push-in port, connection 3 has a R 1/8 inch male threads and connection 4 has R 1/8 inch female threads. The male thread connection has PTFE-coating. The body is made of brass / PA 66. The connection ports are made of brass and PA 66. The seal material is NBR. The operating pressure range is -0.95 to 20 bar (-14 to 290 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 80 °C (-4 to 176 °F). The push-in fitting is easily installed by pushing the pneumatic tube against the release ring-end of the fitting until it stops, and the internal claw secures it into place. It is easily uninstalled by pushing the release ring inward towards the fitting and pulling the tubing back.

Pros:

  • Quick and easy installation and release of pneumatic tubing
  • The male thread connection is PTFE-coated
  • It can be used for vacuum applications
  • The threaded connection is rotatable
  • This push-in fitting has an outer hexagon for mounting
  • Suitable for use with oiled and unoiled compressed air

Downloads

Specifications

Thread
1/8 inch
Push-in connection
Size of the push-in connection port.
6 mm
Connection type
Outer thread conical BSPT-R, Push-in, Inner thread cylindrical BSPP-G
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Brass/PA 66
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
NBR (nitrile rubber)
Fitting features
Vacuum, Rotatable, Outer hexagon
Min pressure (bar)
-0.95
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
20
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-20
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
80
Surface protection
The type of surface protection of the component.
Nickel-plated
Type of sealing
PTFE coated
Model
Double 90 deg elbow
