DN 100 Stainless Steel Tank Truck (TW) Coupling 4'' MK Type

DN 100 Stainless Steel Tank Truck (TW) Coupling 4'' MK Type
DN 100 Stainless Steel Tank Truck (TW) Coupling 4'' MK Type
Image may vary slightly
See specifications for accurate information.
Reference: F245U
Brand: Tameson

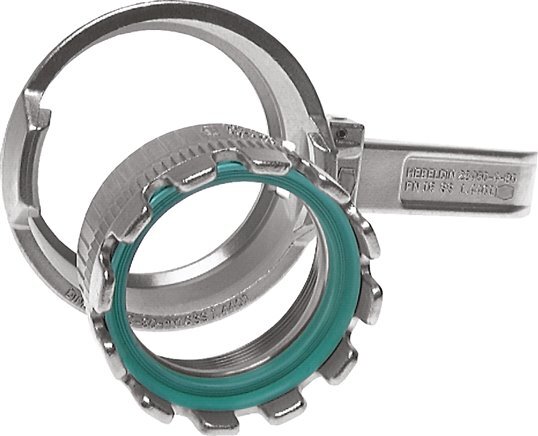

This is a DN 100 tank truck coupling (TW-coupling) of the MK Type (female part). It is made of stainless steel with a PTFE seal. The maximum pressure is 16 bar (232 psi). The coupling is suitable for temperatures between -20 to 80 °C (-4 to 176 °F).

View all
$367.34
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 9 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This is a DN 100 tank truck coupling (TW-coupling) of the MK Type (female part). It is made of stainless steel with a PTFE seal. The maximum pressure is 16 bar (232 psi). The coupling is suitable for temperatures between -20 to 80 °C (-4 to 176 °F).

A tank truck coupling consists of a VK-part (male) and an MK-part (female). The coupling is locked using the lever on the MK-part. The female part couples with the male part by turning the clamping lever. This tank truck coupling adheres the EN 14420-6 (DIN 28450) standard.

Pros:

  • Adheres to the EN 14420-6 (DIN 28450) standard and is interchangeable with other brands
  • The tank truck coupling has a large free flow area
  • Stainless steel couplings have excellent corrosion resistance

Downloads

Specifications

Coupling size
4 inch
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Stainless steel
Nominal diameter (mm)
100
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
Teflon (PTFE)
Shape
MK (female)
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-20
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
80
Quality of material
Stainless steel 316 (1.4401)
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
16
Standard
Meet the requirements of an ISO or DIN Standard
EN 14420-6 (DIN 28450)
