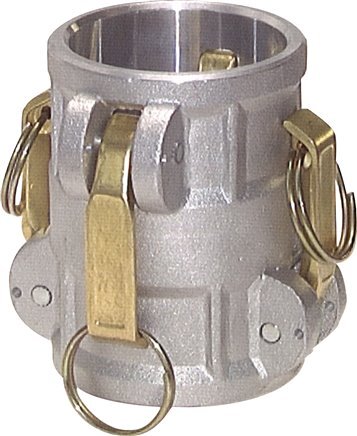

Camlock DN 75 (3'') Aluminium Coupling Connector for Plug MIL-C-27487

Camlock DN 75 (3'') Aluminium Coupling Connector for Plug MIL-C-27487
Camlock DN 75 (3'') Aluminium Coupling Connector for Plug MIL-C-27487
Image may vary slightly
See specifications for accurate information.
Reference: F242Q
Brand: Tameson

Aluminium DN 75 (3 inch) connector for Camlock plug. The maximum operating pressure is 16 bar (232 psi). The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an NBR (nitrile rubber) seal. The coupling adheres to the MIL-C-27487 standard.

View all
$125.96
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 29 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

Aluminium DN 75 (3 inch) connector for Camlock plug. The maximum operating pressure is 16 bar (232 psi). The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an NBR (nitrile rubber) seal. The coupling adheres to the MIL-C-27487 standard.

The coupling requires two parts: the socket (female) and the plug or adapter (male part). To connect the Camlock coupling, insert the plug (adapter) into the socket and press the levers down. To disconnect, lift both levers and pull out the plug.

Pros:

  • Full bore with minimal pressure loss
  • Suitable for solids, since there are no internal valves
  • Aluminum plugs and sockets are lighter in weight than stainless steel
  • The coupling adheres to the MIL-C-27487 standard

Downloads

Specifications

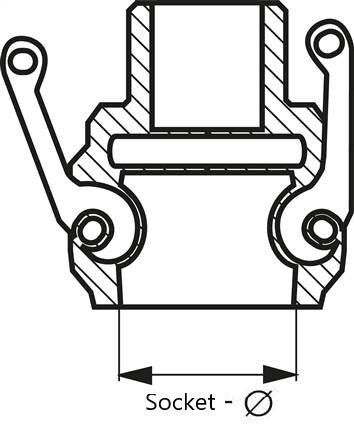

Nominal diameter (mm)
75
Coupling size
3 inch
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Aluminium
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
NBR (nitrile rubber)
Shape
Coupling (female)
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
16
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-10
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
80
