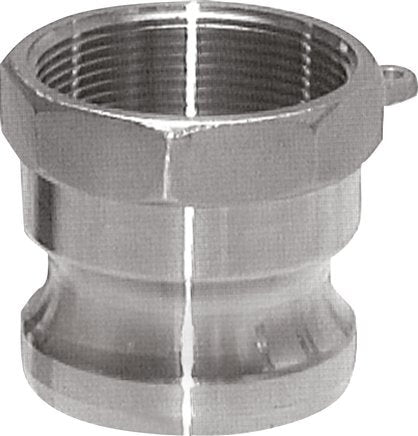

Camlock DN 140 (6'') Aluminium Coupling Rp 6'' Female Thread Type A MIL-C-27487
Aluminium DN 140 (6 inch) Camlock coupling adapter (male) with Rp 6 inch female thread. This is a Type A coupling (plug with female threaded end). The maximum operating pressure is 5 bar (73 psi). The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an NBR (nitrile rubber) seal. The coupling adheres to the MIL-C-27487 standard.
- Regular price
- $44.66 USD
We sell only to registered businesses
Description
Aluminium DN 140 (6 inch) Camlock coupling adapter (male) with Rp 6 inch female thread. This coupling is a Type A coupling (plug with female threaded end). The maximum operating pressure is 5 bar (73 psi). The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an NBR (nitrile rubber) seal. The coupling adheres to the MIL-C-27487 standard.
The coupling requires two parts: the socket (female) and the plug or adapter (male part). To connect the Camlock coupling, insert the plug (adapter) into the socket and press the levers down. To disconnect, lift both levers and pull out the plug.
Pros:
- Full bore with minimal pressure loss
- Suitable for solids, since there are no internal valves
- Aluminum plugs and sockets are lighter in weight than stainless steel
- The coupling adheres to the MIL-C-27487 standard
