Reference: F23MM
Brand: Tameson

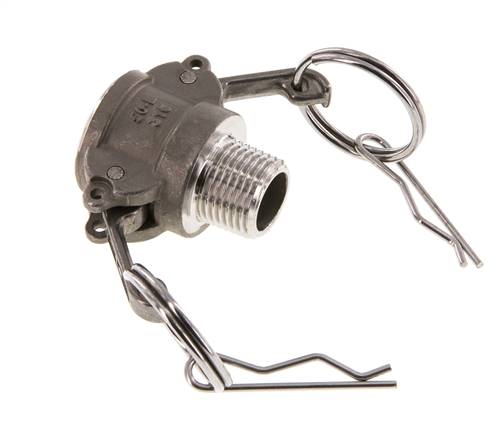

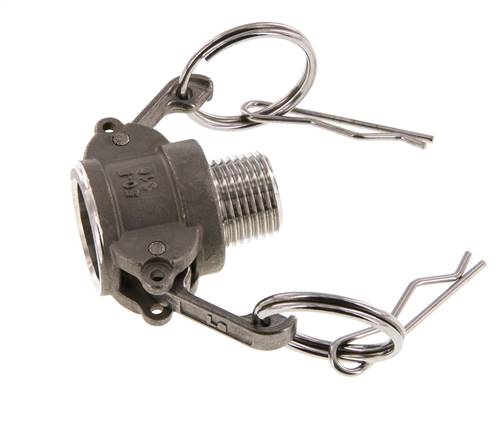

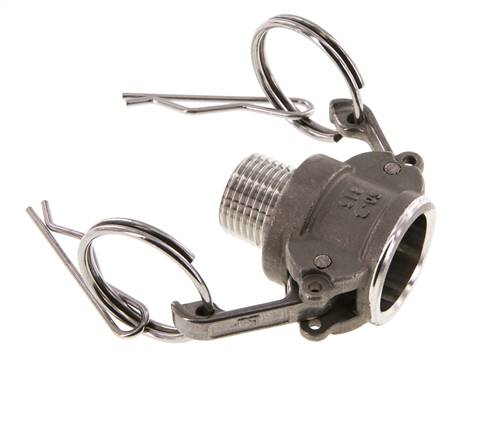

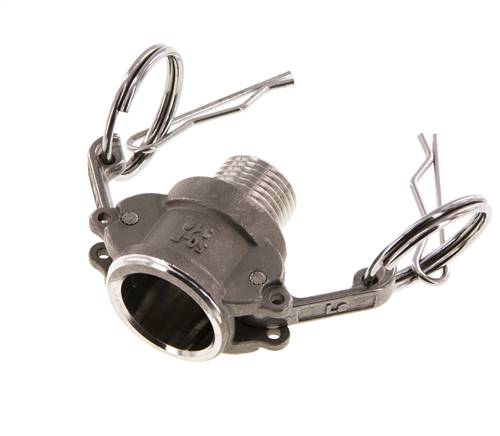

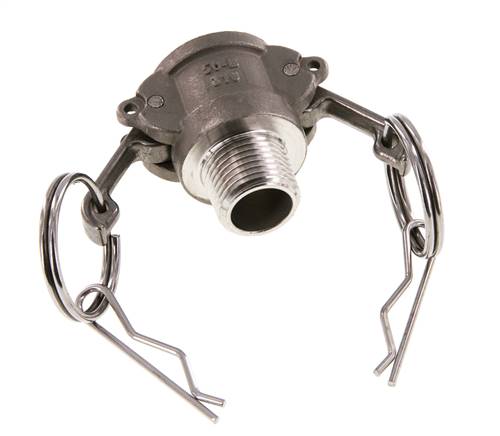

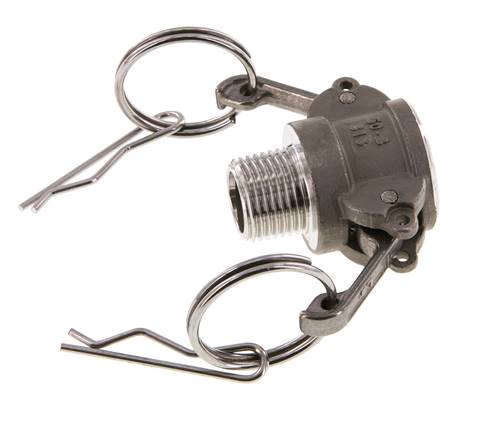

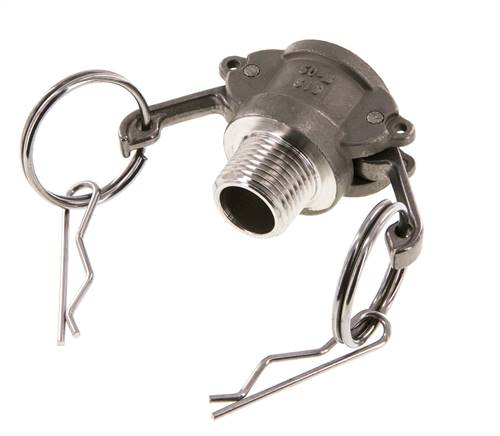

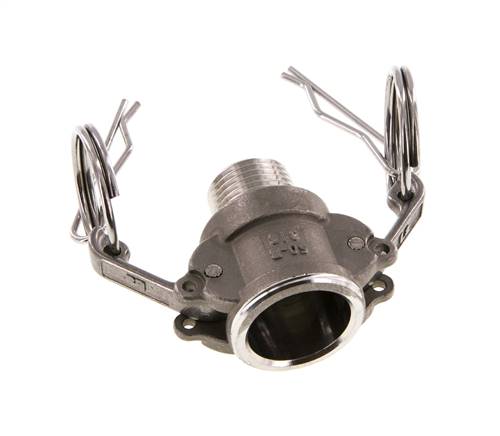

Stainless steel DN 15 (1/2 inch) Camlock coupling socket with R 1/2 inch male thread. This is a Type B coupling (socket with male threaded end). The maximum operating pressure is 11 bar (160 psi). The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an NBR (nitrile rubber) seal. The coupling adheres to the MIL-C-27487 standard.

View all
Regular price
$14.39 USD
excl VAT

In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 156 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

Description
Specifications
Downloads
Related products

Stainless steel DN 15 (1/2 inch) Camlock coupling socket with R 1/2 inch male thread. This coupling is a Type B coupling (socket with male threaded end). The maximum operating pressure is 11 bar (160 psi). The coupling is suitable for temperatures between -10 to 80 °C (14 to 176 °F). It has an NBR (nitrile rubber) seal. The coupling adheres to the MIL-C-27487 standard.

The coupling requires two parts: the socket (female) and the plug or adapter (male part). To connect the Camlock coupling, insert the plug (adapter) into the socket and press the levers down. To disconnect, lift both levers and pull out the plug.

Pros:

  • Full bore with minimal pressure loss
  • Suitable for solids, since there are no internal valves
  • Stainless steel plugs and sockets have excellent corrosion resistance
  • The coupling adheres to the MIL-C-27487 standard
  • It has safety cotter pins to prevent accidental decoupling
