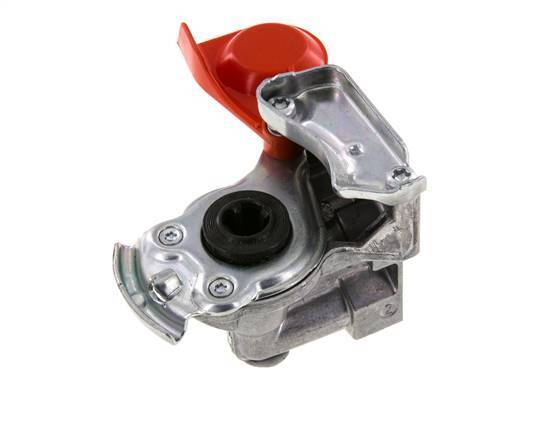

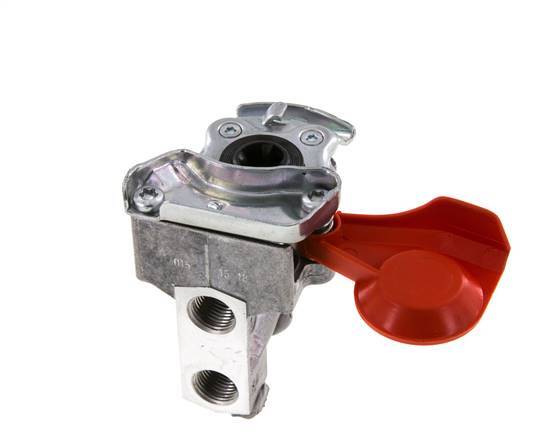

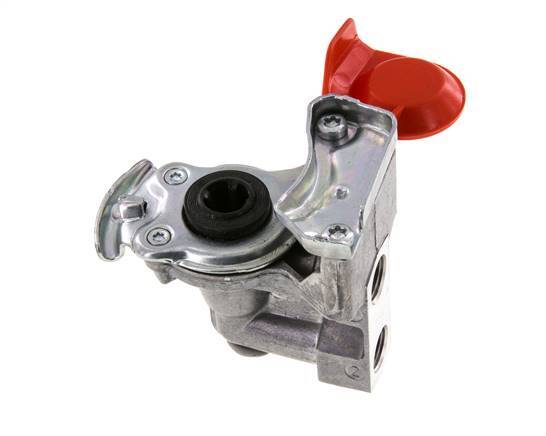

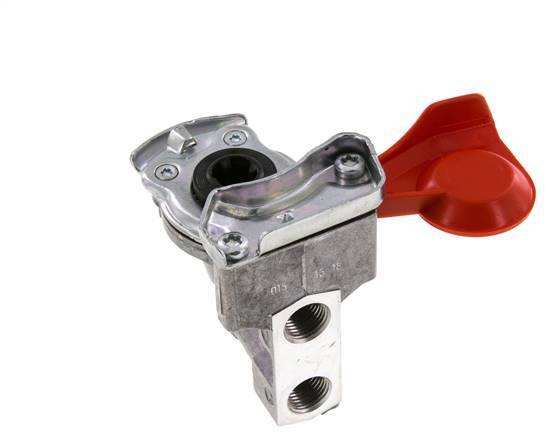

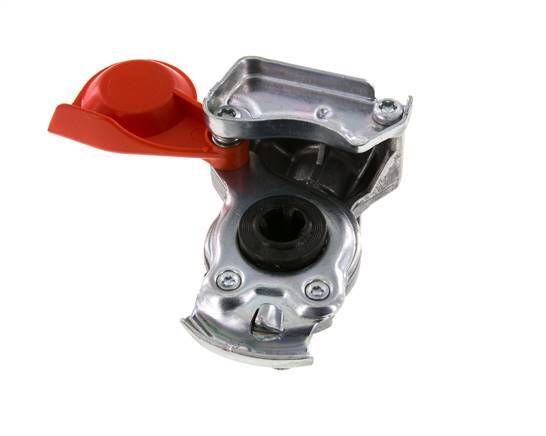

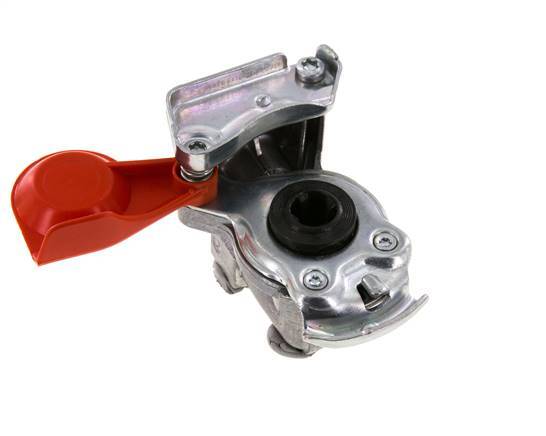

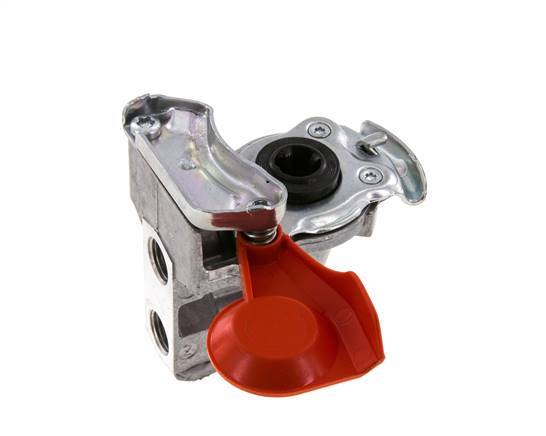

Supply Red Aluminum Gladhand Coupling 2 x M16x1.5 Female Threads DIN 74254

Supply Red Aluminum Gladhand Coupling 2 x M16x1.5 Female Threads DIN 74254
Supply Red Aluminum Gladhand Coupling 2 x M16x1.5 Female Threads DIN 74254
Supply Red Aluminum Gladhand Coupling 2 x M16x1.5 Female Threads DIN 74254
Supply Red Aluminum Gladhand Coupling 2 x M16x1.5 Female Threads DIN 74254
Supply Red Aluminum Gladhand Coupling 2 x M16x1.5 Female Threads DIN 74254
Supply Red Aluminum Gladhand Coupling 2 x M16x1.5 Female Threads DIN 74254
Supply Red Aluminum Gladhand Coupling 2 x M16x1.5 Female Threads DIN 74254
Supply Red Aluminum Gladhand Coupling 2 x M16x1.5 Female Threads DIN 74254
Supply Red Aluminum Gladhand Coupling 2 x M16x1.5 Female Threads DIN 74254
Supply Red Aluminum Gladhand Coupling 2 x M16x1.5 Female Threads DIN 74254
Supply Red Aluminum Gladhand Coupling 2 x M16x1.5 Female Threads DIN 74254
Supply Red Aluminum Gladhand Coupling 2 x M16x1.5 Female Threads DIN 74254
Supply Red Aluminum Gladhand Coupling 2 x M16x1.5 Female Threads DIN 74254
Supply Red Aluminum Gladhand Coupling 2 x M16x1.5 Female Threads DIN 74254
Supply Red Aluminum Gladhand Coupling 2 x M16x1.5 Female Threads DIN 74254
Supply Red Aluminum Gladhand Coupling 2 x M16x1.5 Female Threads DIN 74254
Reference: F23F6
Brand: Tameson

Aluminum gladhand coupling with 2 x M16x1.5 female threads. The maximum operating pressure is 10 bar (145 psi). The coupling is suitable for temperatures between -40 to 80 °C (-40 to 176 °F). The seal material is NBR. The coupling adheres the DIN 74254.

View all
$128.10
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 30 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

Aluminum gladhand coupling with 2 x M16x1.5 female threads. It is a vehicle coupling designed for dual-circuit braking systems.

The maximum operating pressure is 10 bar (145 psi). The coupling is suitable for temperatures between -40 to 80 °C (-40 to 176 °F). The seal material is NBR. The aluminum housing has a galvanic zink plated surface protection. The coupling complies with the DIN 74254 standard.

Note: Non-interchangeable design for dual-circuit braking systems

Pros:

  • Adheres to DIN 74254 and can be combined with other manufacturers
  • The red cover indicates it is for the supply line
  • With valve, to avoid air loss when uncoupling

Downloads

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
M16 x 1.5
Connection type
Inner thread metric
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Aluminium
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
NBR (nitrile rubber)
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
10
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-40
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
80
Standard
Meet the requirements of an ISO or DIN Standard
DIN 74254
Surface protection
Galvanic zink plated
With dust cap
No
