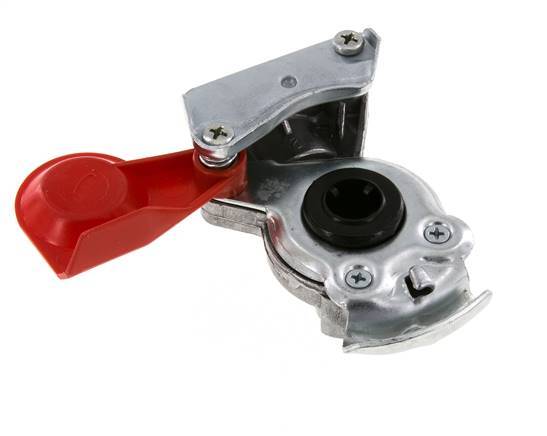

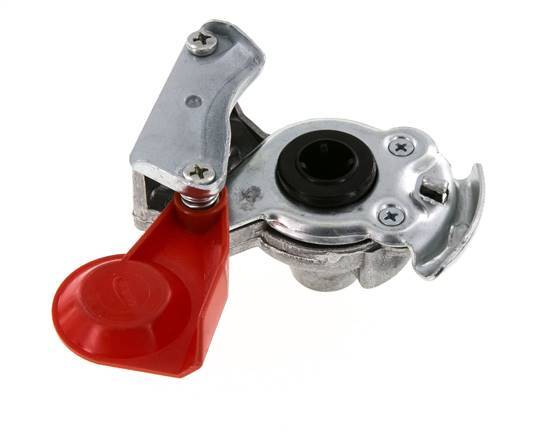

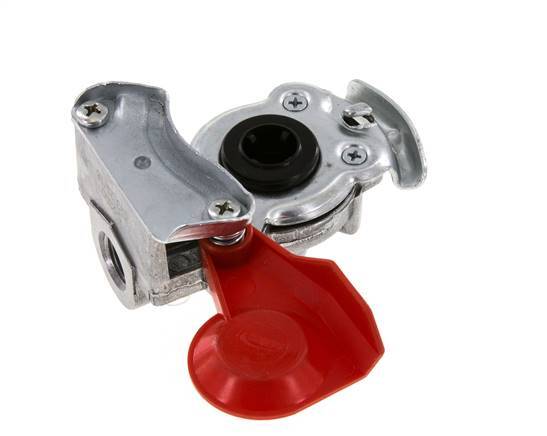

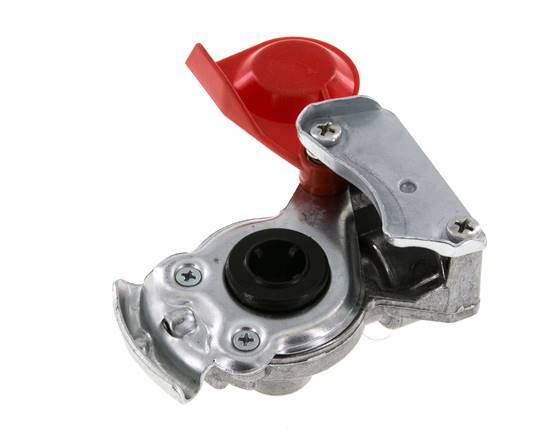

Supply Red Aluminum Gladhand Coupling M16x1.5 Female Threads DIN 74254
Aluminum gladhand coupling with M16x1.5 female threads. The maximum operating pressure is 10 bar (145 psi). The coupling is suitable for temperatures between -40 to 80 °C (-40 to 176 °F). The seal material is NBR. The coupling adheres the DIN 74254.
- Regular price
- $55.12 USD
We sell only to registered businesses
Description
Aluminum gladhand coupling with M16x1.5 female threads. It is a vehicle coupling designed for dual-circuit braking systems.
The maximum operating pressure is 10 bar (145 psi). The coupling is suitable for temperatures between -40 to 80 °C (-40 to 176 °F). The seal material is NBR. The aluminum housing has a galvanic zink plated surface protection. The coupling complies with the DIN 74254 standard.
Note: Non-interchangeable design for dual-circuit braking systems
Pros:
- Adheres to DIN 74254 and can be combined with other manufacturers
- The red cover indicates it is for the supply line
- With valve, to avoid air loss when uncoupling
