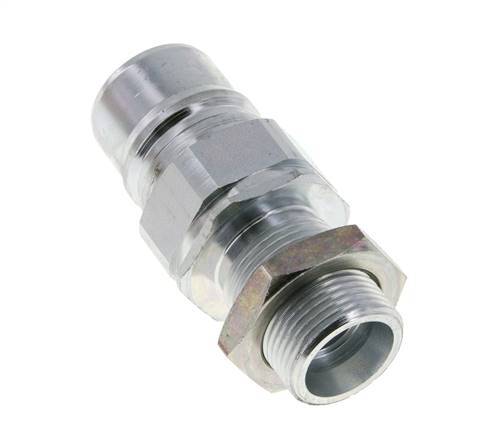

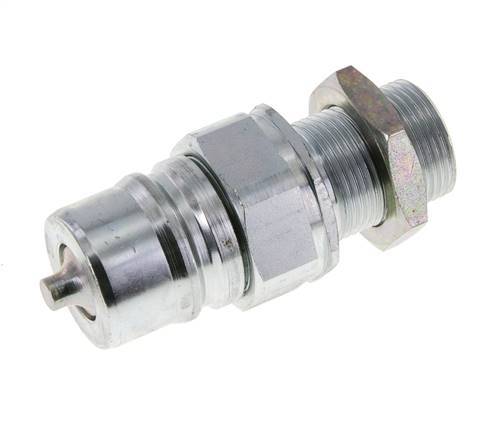

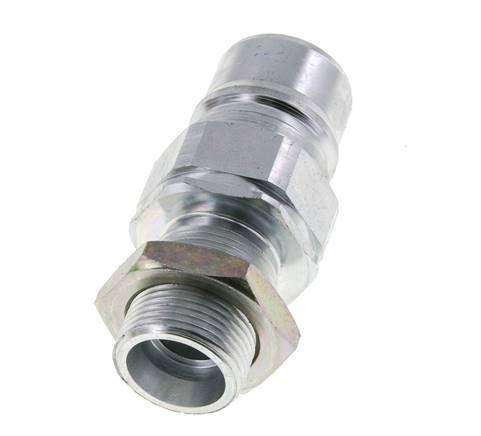

Steel DN 25 Hydraulic Coupling Plug 20 mm S Compression Ring Bulkhead ISO 7241-1 A/8434-1 D 34.3mm
Steel DN 25 hydraulic coupling plug with 20 mm S (heavy) compression ring and bulkhead thread. The maximum operating pressure is 225 bar (3263 psi). The coupling is suitable for temperatures between -20 to 160 °C (-4 to 320 °F). The coupling adheres the ISO 7241-1 A and DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- $78.46 USD
We sell only to registered businesses
Description
Steel DN 25 hydraulic coupling plug with 20 mm S (heavy) compression ring and bulkhead thread. They are typically used for liquid lines to quickly connect and disconnect secure connections.
The 20 mm S (heavy) compression ring connection allows it to securely connect pipes together without soldering. The plug has bulkhead thread to mount it to a panel. The maximum operating pressure is 225 bar (3263 psi). The coupling is suitable for temperatures between -20 to 160 °C (-4 to 320 °F). The steel housing has a galvanic zink plated surface protection. The coupling complies with the ISO 7241-1 A and DIN EN ISO 8434-1 (DIN 2353) standard.
Pros:
- Streamlining design of the flow rate range
- Push-Pull design: Coupling can be decoupled by pushing or pulling the sleeve
- Adheres to ISO 7241-1 A worldwide standard and DIN EN ISO 8434-1 (DIN 2353)
- Can be combined with other manufacturers, such as Parker, Rectus, Cejn, Stucci, Faster or Snap-Tite
- The plug has bulkhead thread to mount it to a panel
