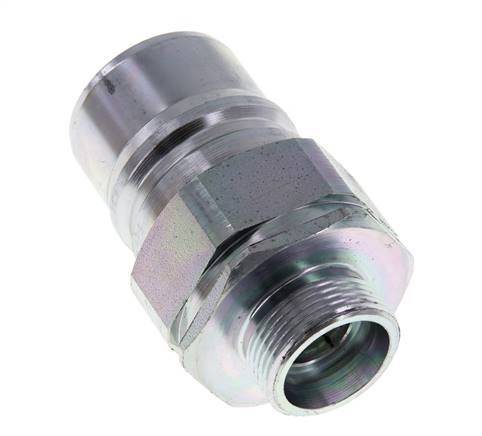

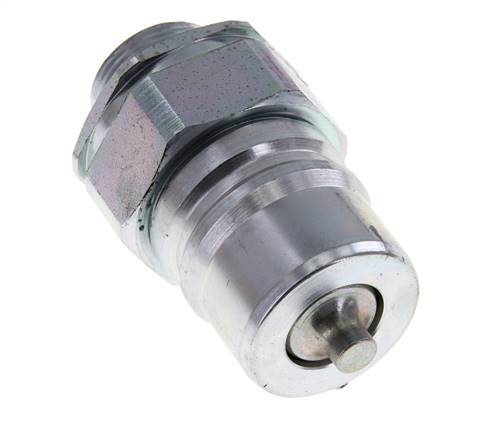

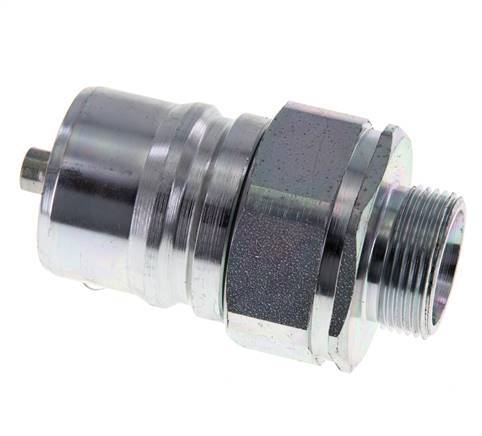

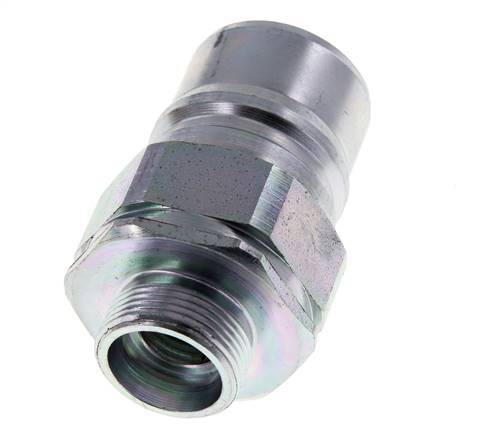

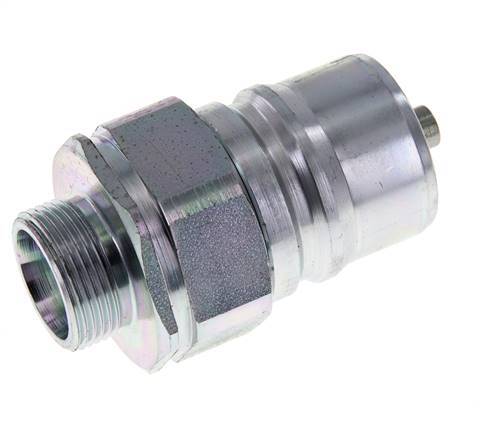

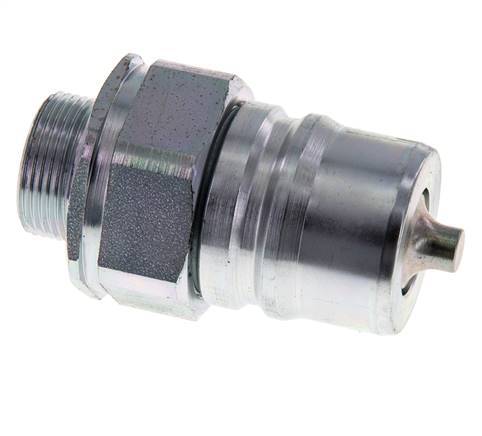

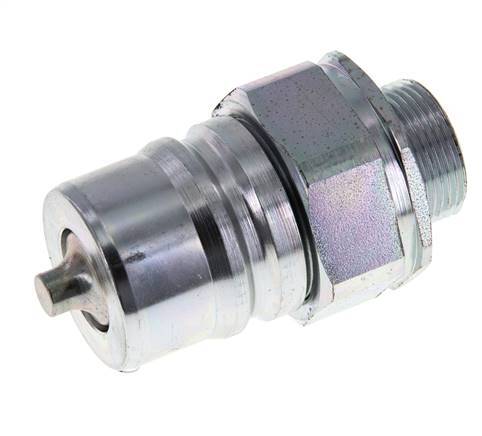

Steel DN 25 Hydraulic Coupling Plug 18 mm L Compression Ring ISO 7241-1 A/8434-1 D 34.3mm
Steel DN 25 hydraulic coupling plug with 18 mm L (light) compression ring. The maximum operating pressure is 225 bar (3263 psi). The coupling is suitable for temperatures between -20 to 100 °C (-4 to 212 °F). The coupling adheres the ISO 7241-1 A and DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- $55.37
Description
Steel DN 25 hydraulic coupling plug with 18 mm L (light) compression ring. They are typically used for liquid lines to quickly connect and disconnect secure connections.
The 18 mm L (light) compression ring connection allows it to securely connect pipes together without soldering. The maximum operating pressure is 225 bar (3263 psi). The coupling is suitable for temperatures between -20 to 100 °C (-4 to 212 °F). The steel housing has a galvanic zink plated surface protection. The coupling complies with the ISO 7241-1 A and DIN EN ISO 8434-1 (DIN 2353) standard.
Pros:
- Streamlining design of the flow rate range
- Push-Pull design: Coupling can be decoupled by pushing or pulling the sleeve
- Adheres to ISO 7241-1 A worldwide standard and DIN EN ISO 8434-1 (DIN 2353)
- Can be combined with other manufacturers, such as Parker, Rectus, Cejn, Stucci, Faster or Snap-Tite
