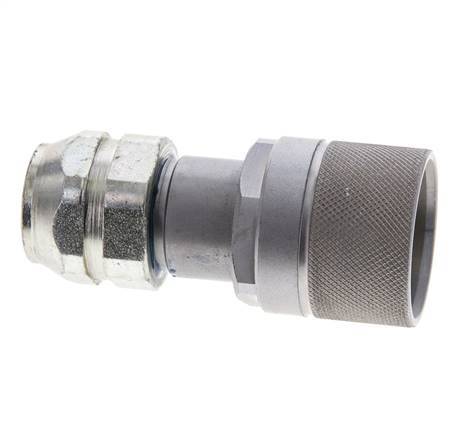

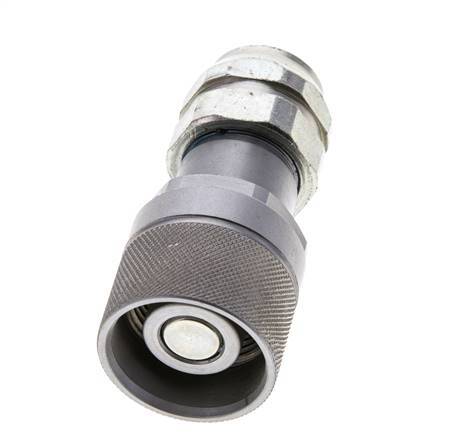

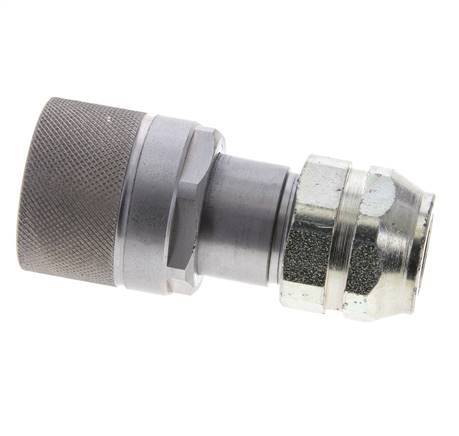

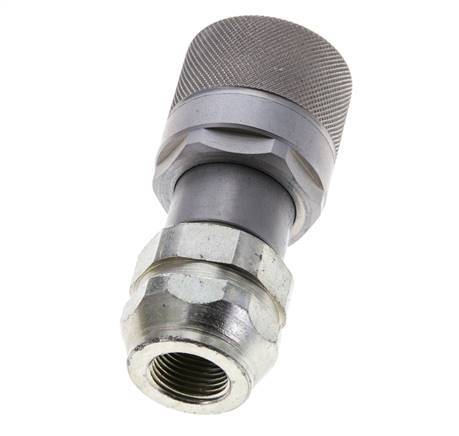

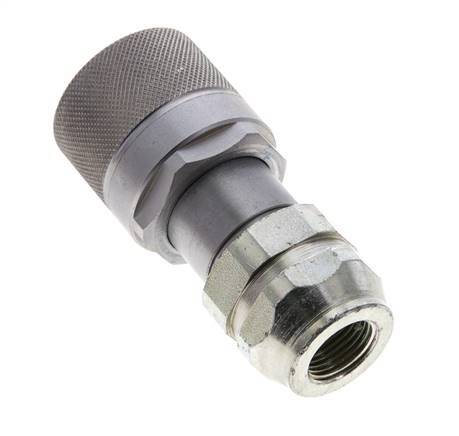

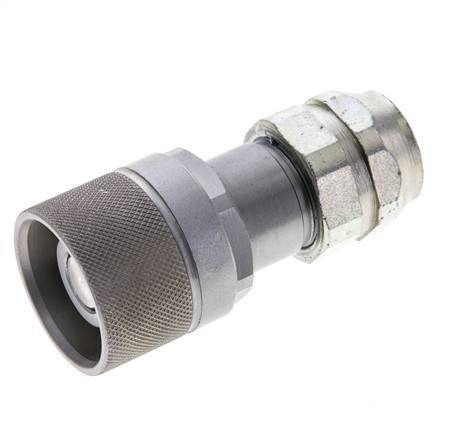

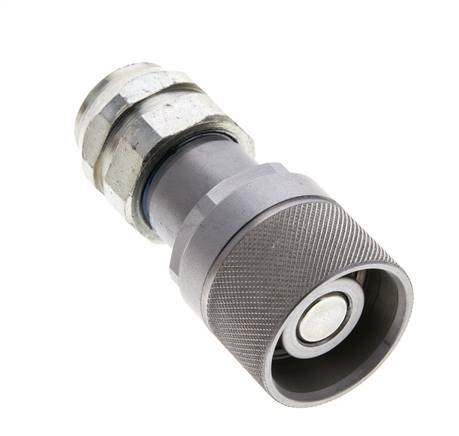

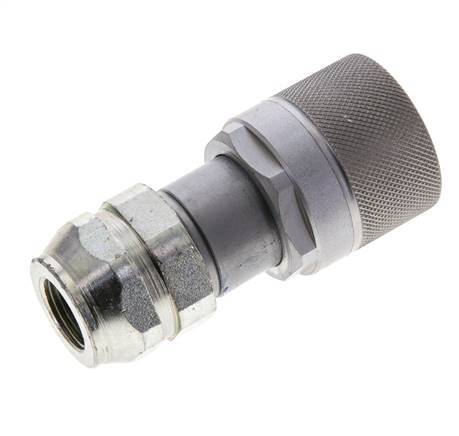

Steel DN 8.7 Flat Face Hydraulic Plug G 3/8 inch Female Threads ISO 16028 D M30 x 2
Steel DN 8.7 flat face hydraulic plug with G 3/8 inch female threads. The maximum operating pressure is 350 bar (5075 psi). The coupling is suitable for temperatures between -25 to 125 °C (-13 to 257 °F). The coupling adheres the ISO 16028.
- Regular price
- $154.06
Description
Steel DN 8.7 flat face hydraulic plug with G 3/8 inch female threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.
The G 3/8 inch female threads allow for it to be threaded onto a matching male threaded part. The maximum operating pressure is 350 bar (5075 psi). The coupling is suitable for temperatures between -25 to 125 °C (-13 to 257 °F). The steel housing has a galvanic zink plated surface protection. The coupling complies with the ISO 16028 standard.
Note: Can be coupled with the residual pressure in the plug up to 250 bar (sleeve with residual pressure up to 100 bar)
Pros:
- No dirt can get in as the coupling can simply be wiped clean due to the smooth flat face surface
- Axial forces can be absorbed well due to the coupling's design, especially suited for use on hydraulic hoses
- Can be coupled while under pressure
- Adheres to ISO 16028, allowing it to be interchangeable between brands
