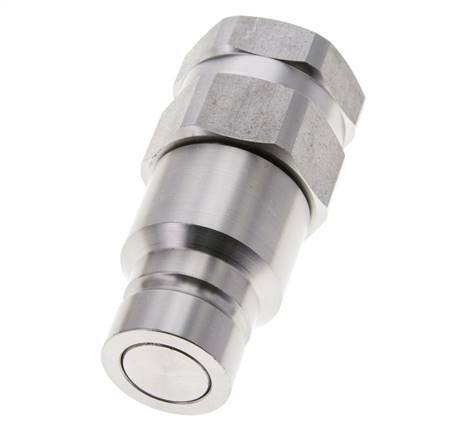

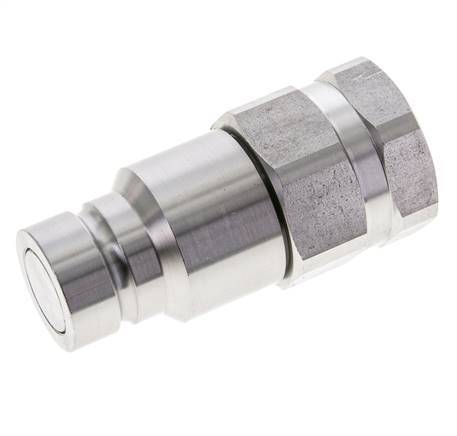

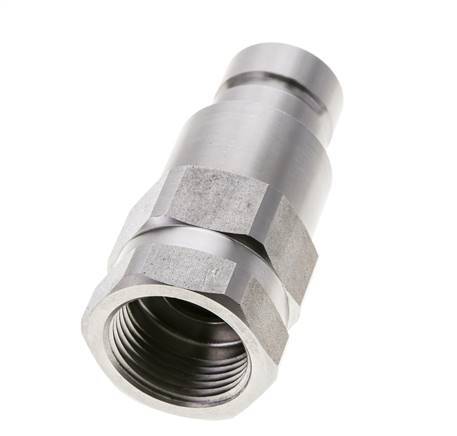

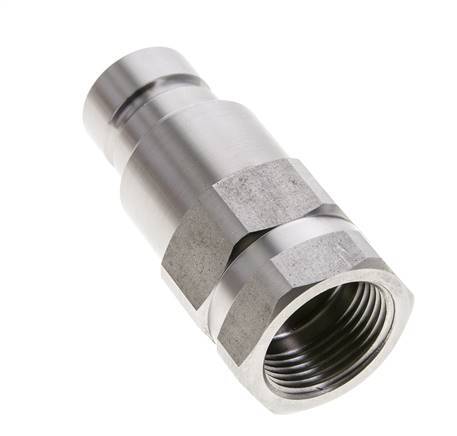

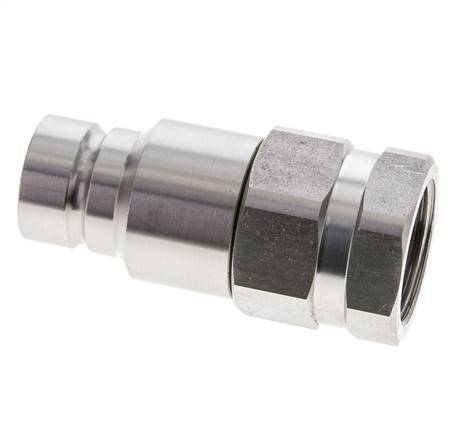

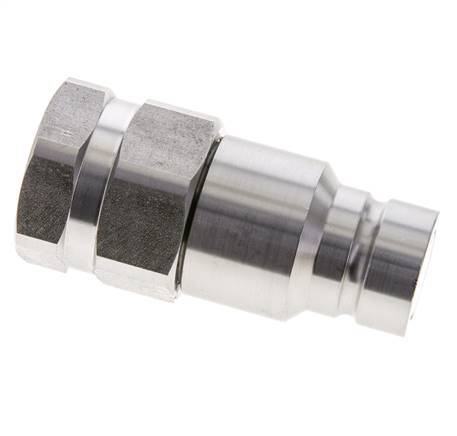

Stainless Steel DN 16 Flat Face Hydraulic Plug G 1 inch Female Threads ISO 16028 D 30mm
Stainless steel DN 16 flat face hydraulic plug with G 1 inch female threads. The maximum operating pressure is 250 bar (3625 psi). The coupling is suitable for temperatures between -25 to 200 °C (-13 to 392 °F). The coupling adheres the ISO 16028.
- Regular price
- $479.28
Description
Stainless steel DN 16 flat face hydraulic plug with G 1 inch female threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.
The G 1 inch female threads allow for it to be threaded onto a matching male threaded part. The maximum operating pressure is 250 bar (3625 psi). The coupling is suitable for temperatures between -25 to 200 °C (-13 to 392 °F). The housing material is stainless steel 303 (1.4305). The coupling complies with the ISO 16028 standard.
Pros:
- No dirt can get in as the coupling can simply be wiped clean due to the smooth flat face surface
- Axial forces can be absorbed well due to the coupling's design, especially suited for use on hydraulic hoses
- Adheres to ISO 16028, allowing it to be interchangeable between brands
