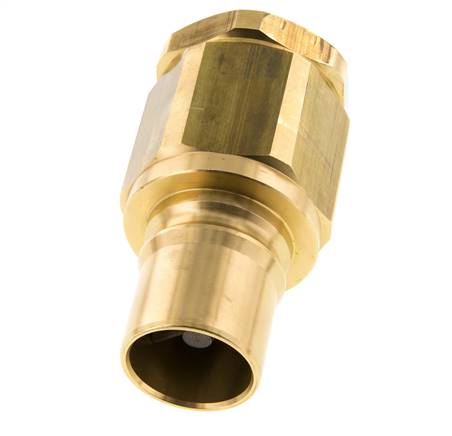

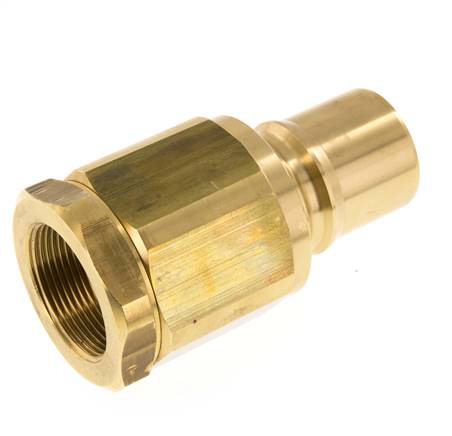

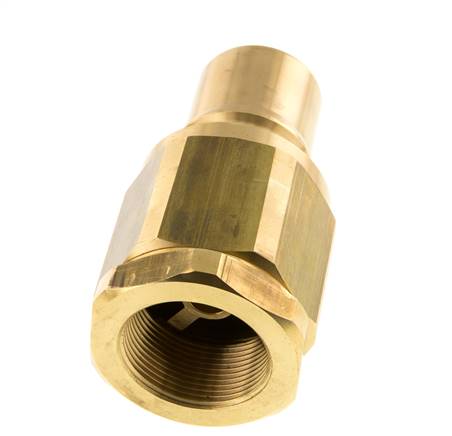

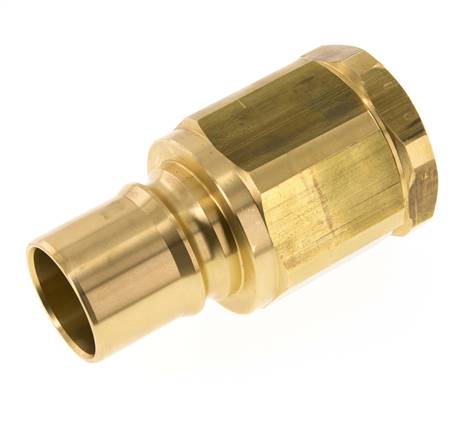

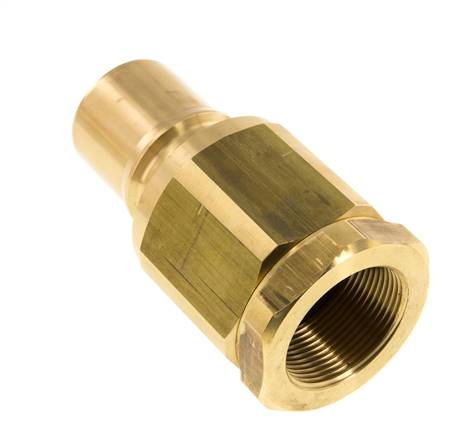

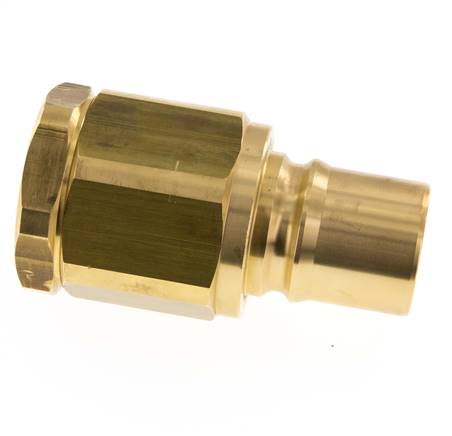

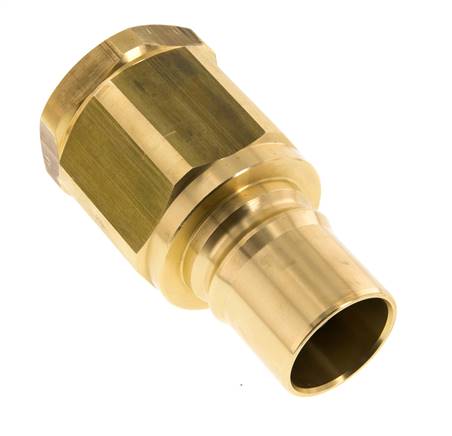

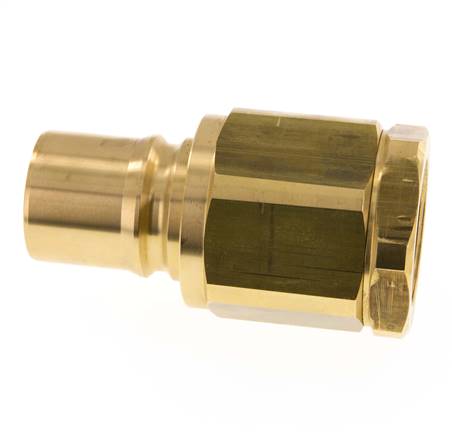

Brass DN 50 Hydraulic Coupling Plug G 2 inch Female Threads ISO 7241-1 B D 63.2mm

Brass DN 50 Hydraulic Coupling Plug G 2 inch Female Threads ISO 7241-1 B D 63.2mm
Brass DN 50 Hydraulic Coupling Plug G 2 inch Female Threads ISO 7241-1 B D 63.2mm
Image may vary slightly
See specifications for accurate information.
Reference: F22YC
Brand: Tameson

Brass DN 50 hydraulic coupling plug with G 2 inch female threads. The maximum operating pressure is 80 bar (1160 psi). The coupling is suitable for temperatures between -25 to 160 °C (-13 to 320 °F). The coupling adheres the ISO 7241-1 B.

View all
$1167.22
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 4 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

Brass DN 50 hydraulic coupling plug with G 2 inch female threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The G 2 inch female threads allow for it to be threaded onto a matching male threaded part. The maximum operating pressure is 80 bar (1160 psi). The coupling is suitable for temperatures between -25 to 160 °C (-13 to 320 °F). The coupling complies with the ISO 7241-1 B standard.

Pros:

  • Adheres to ISO 7241-1 B worldwide standard
  • They can be combined with other manufacturers, such as Parker, Rectus, Cejn, Stucci, Faster or Snap-Tite
  • Brass or stainless steel couplings are suitable for applications with high demand for chemical resistance

Downloads

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
2 inch
Nominal diameter (mm)
50
Plug diameter
63.2 mm
Socket diameter
105 mm
Connection type
Inner thread cylindrical BSPP-G
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Brass
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
FKM (FPM)
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
80
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-25
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
160
Standard
Meet the requirements of an ISO or DIN Standard
ISO 7241-1 B
Shape
Plug (male)
With dust cap
No
