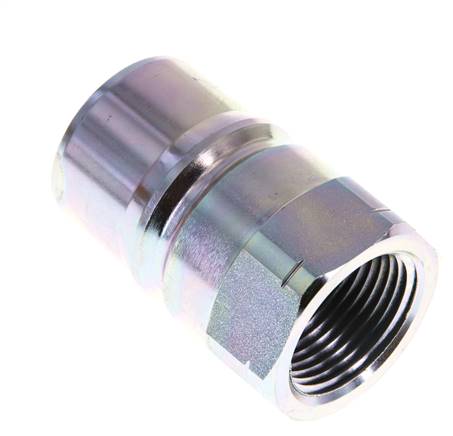

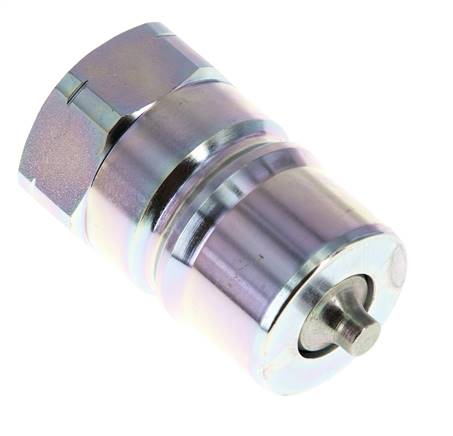

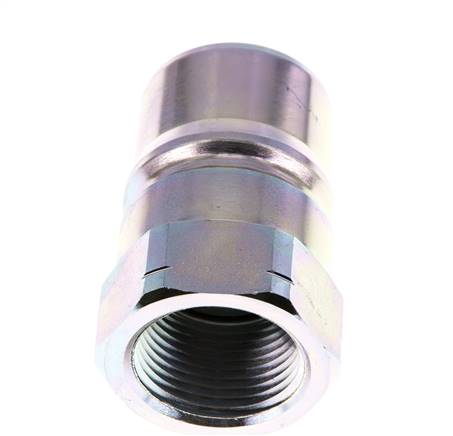

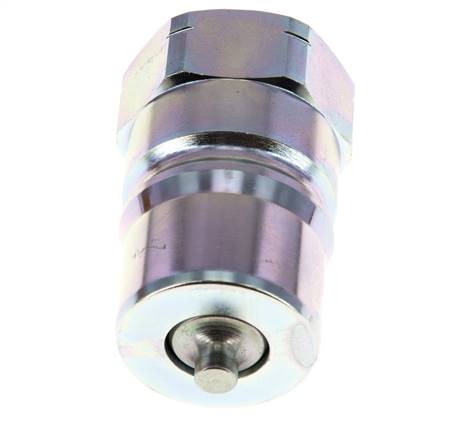

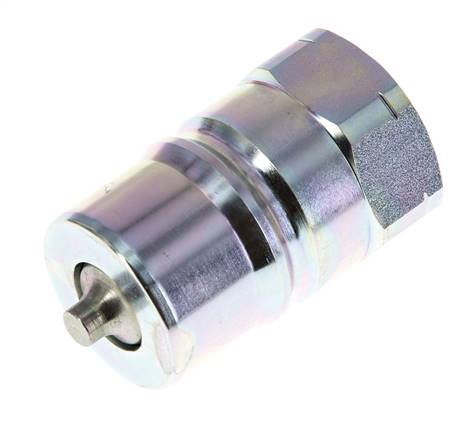

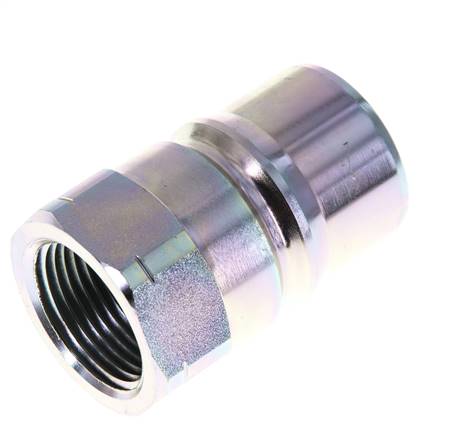

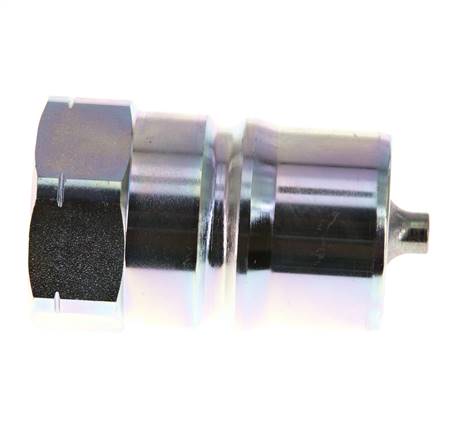

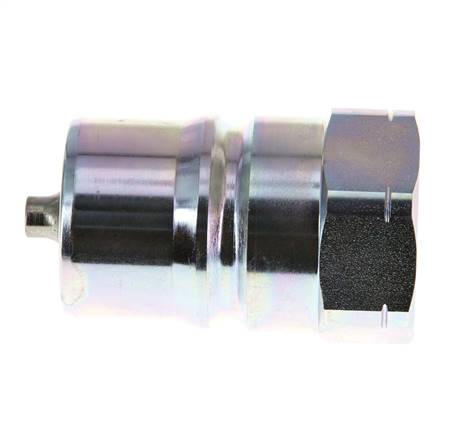

Steel DN 40 Hydraulic Coupling Plug 1 1/2 inch Female NPT Threads ISO 7241-1 B D 44.5mm

Steel DN 40 Hydraulic Coupling Plug 1 1/2 inch Female NPT Threads ISO 7241-1 B D 44.5mm
Steel DN 40 Hydraulic Coupling Plug 1 1/2 inch Female NPT Threads ISO 7241-1 B D 44.5mm
Image may vary slightly
See specifications for accurate information.
Reference: F22WX
Brand: Tameson

Steel DN 40 hydraulic coupling plug with 1 1/2 inch female NPT threads. The maximum operating pressure is 120 bar (1740 psi). The coupling is suitable for temperatures between -25 to 120 °C (-13 to 248 °F). The coupling adheres the ISO 7241-1 B.

View all
$429.38
excl VAT
In stock +0 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 0 days. Up to 1 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 2 - 3 business days

Customers rate us: 4.96 / 5

515 reviews at TrustedShops

Description
Specifications
Related products

Description

Steel DN 40 hydraulic coupling plug with 1 1/2 inch female NPT threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The 1 1/2 inch female NPT threads allow for it to be threaded onto a matching male threaded part. The maximum operating pressure is 120 bar (1740 psi). The coupling is suitable for temperatures between -25 to 120 °C (-13 to 248 °F). The steel housing has a galvanic zink plated surface protection. The coupling complies with the ISO 7241-1 B standard.

Pros:

  • Adheres to ISO 7241-1 B worldwide standard
  • They can be combined with other manufacturers, such as Parker, Rectus, Cejn, Stucci, Faster or Snap-Tite

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
1 1/2 inch
Nominal diameter (mm)
40
Plug diameter
44.5 mm
Socket diameter
75 mm
Connection type
Inner thread conical (NPT)
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Steel
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
NBR (nitrile rubber)
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
120
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-25
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
120
Standard
Meet the requirements of an ISO or DIN Standard
ISO 7241-1 B
Shape
Plug (male)
Surface protection
Galvanic zink plated
With dust cap
No
