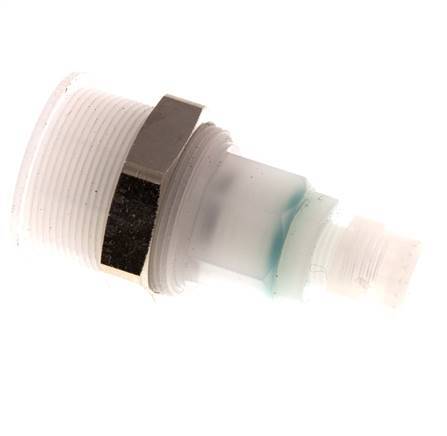

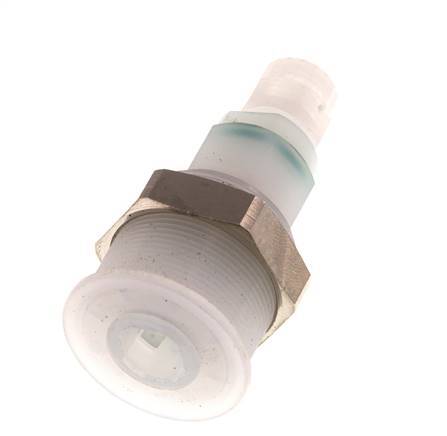

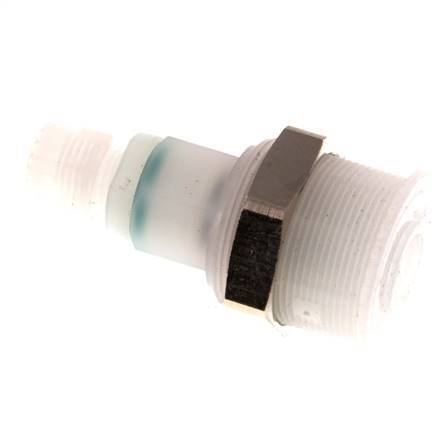

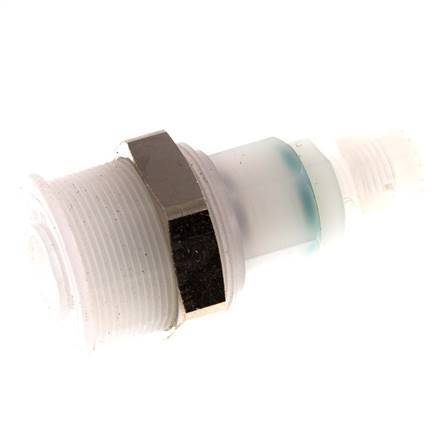

PVDF DN 5 Coupling Socket 4x6 mm Union Nut Pull-Off
Reference:
F22S4
Brand:
Tameson
Polyvinylidene fluoride (PVDF) DN 5 coupling socket with 4x6 mm union nut. 'Pull-off' design: decouple by simply pulling the plug and hose. The operating pressure range is 0 to 80 bar (0 to 1160 psi). The coupling is suitable for temperatures between -20 to 120 °C (-4 to 248 °F). The seal material is FKM.
- Regular price
- $118.12
excl VAT
Shipping to United States: Free
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days
Description
Specifications
Downloads
Description
Polyvinylidene fluoride (PVDF) DN 5 coupling socket with 4x6 mm union nut. A pneumatic coupling is used to quickly connect air tools to a compressed air line. These sockets have a special 'pull-off' design, which allows decoupling by simply pulling on the plug and hose.
The operating pressure range is 0 to 80 bar (0 to 1160 psi). The coupling is suitable for temperatures between -20 to 120 °C (-4 to 248 °F). The seal material is FKM.
Pros:
- DN 5 plastic couplings are compatible with the metal quick couplings DN 5
- These are often considered a good alternative to brass couplings
- They are a cost-efficient alternative to stainless steel versions
- These sockets have a special 'pull-off' design, which allows decoupling by simply pulling on the plug and hose
