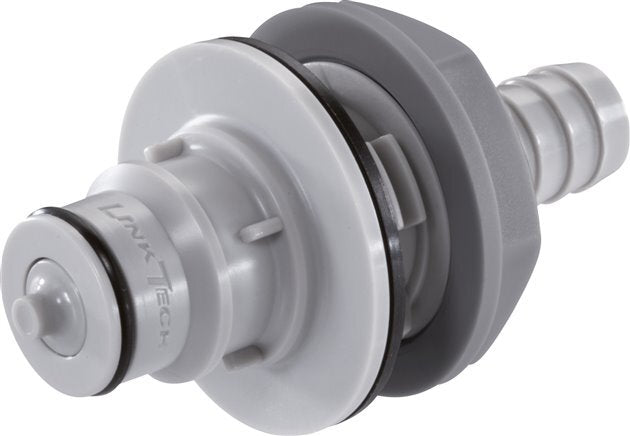

PP DN 9.5 Linktech Coupling Plug 9.5 mm Hose Pillar Bulkhead 60 Series
Notice: This product is discontinued
Polypropylene (PP) DN 9.5 LinkTech coupling plug with 9.5 mm hose pillar and bulkhead thread. The operating pressure range is -0.8 to 4.2 bar (-12 to 61 psi), making them suitable for vacuums. The coupling is suitable for temperatures between 0 to 70 °C (32 to 158 °F). The flow rate is 1200 - 4100 l/min (for air) and 15 - 57 l/min (for water).
Notice: This product is discontinued
Description
Polypropylene (PP) DN 9.5 LinkTech coupling plug and bulkhead thread. This product can be used on pneumatic and liquid lines to quickly connect tools and lines together.
Easily mount a hose over the 9.5 mm hose pillar. Optionally, order a hose clamp for proper fixation of the hose. The plug has bulkhead thread to mount it to a panel. This coupling is suitable for vacuum applications. The operating pressure range is -0.8 to 4.2 bar (-12 to 61 psi). The coupling is suitable for temperatures between 0 to 70 °C (32 to 158 °F). The rated flow rate is 1200 - 4100 l/min (for air) and 15 - 57 l/min (for water).
At temperatures above 27 °C, there is a max pressure rating reduction (40 °C: max 3.4 bar, 50 °C: max 2.7 bar, 60 °C: max 2.2 bar, 70 °C: max 1.7 bar).
It is connected to another component by inserting a plug into the sleeve until you hear a "click". Pressing the release button disconnects the plug.
To sterilize the coupling, you can use: formalin, isopropyl alcohol, ethyl alcohol, ethylene oxide, gamma radiation
Suitable for: Suited for use with many chemicals. Not resistant to mineral oils.
Pros:
- LinkTech couplings are resistant to most mild chemicals and they are suitable for chemical and medical applications
- LinkTech couplings are twist lock coupling and they are easy to use with audible click when coupled
- These couplings are interchangeable with the CPC-Colder products
- The plug has bulkhead thread to mount it to a panel
- It can be used for vacuum applications
