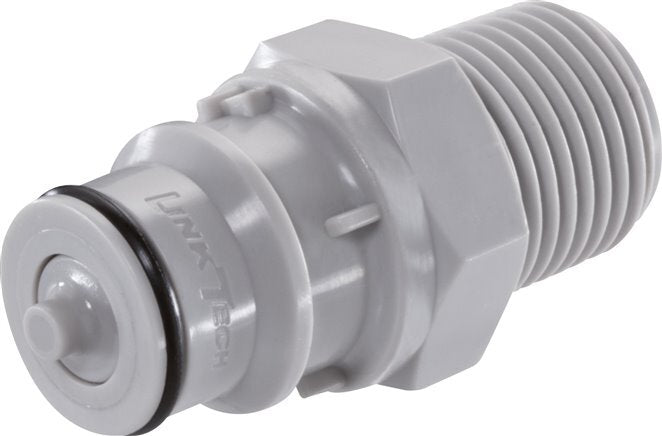

PP DN 9.5 Linktech Coupling Plug 3/8 inch Male NPT Threads 60 Series
Notice: This product is discontinued
Polypropylene (PP) DN 9.5 LinkTech coupling plug with 3/8 inch male NPT threads. The operating pressure range is -0.8 to 4.2 bar (-12 to 61 psi), making them suitable for vacuums. The coupling is suitable for temperatures between 0 to 70 °C (32 to 158 °F). The flow rate is 1200 - 4100 l/min (for air) and 15 - 57 l/min (for water).
Notice: This product is discontinued
Description
Polypropylene (PP) DN 9.5 LinkTech coupling plug with 3/8 inch male NPT threads. This product can be used on pneumatic and liquid lines to quickly connect tools and lines together.
The 3/8 inch male NPT threads allow for it to be threaded onto a matching female threaded part. This coupling is suitable for vacuum applications. The operating pressure range is -0.8 to 4.2 bar (-12 to 61 psi). The coupling is suitable for temperatures between 0 to 70 °C (32 to 158 °F). The rated flow rate is 1200 - 4100 l/min (for air) and 15 - 57 l/min (for water).
At temperatures above 27 °C, there is a max pressure rating reduction (40 °C: max 3.4 bar, 50 °C: max 2.7 bar, 60 °C: max 2.2 bar, 70 °C: max 1.7 bar).
It is connected to another component by inserting a plug into the sleeve until you hear a "click". Pressing the release button disconnects the plug.
To sterilize the coupling, you can use: formalin, isopropyl alcohol, ethyl alcohol, ethylene oxide, gamma radiation
Suitable for: Suited for use with many chemicals. Not resistant to mineral oils.
Pros:
- LinkTech couplings are resistant to most mild chemicals and they are suitable for chemical and medical applications
- LinkTech couplings are twist lock coupling and they are easy to use with audible click when coupled
- It can be used for vacuum applications
