POM DN 6.4 Linktech Coupling Socket 3/8 inch Male NPT Threads Double Shut-Off 50 Series

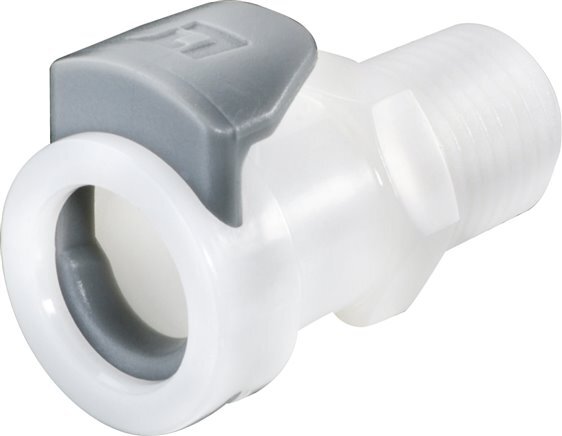

Polyoxymethylene (POM) DN 6.4 LinkTech coupling socket with 3/8 inch male NPT threads. This product can be used on pneumatic and liquid lines to quickly connect tools and lines together.

The 3/8 inch male NPT threads allow for it to be threaded onto a matching female threaded part. This coupling is suitable for vacuum applications. The coupling has a non-return valve to prevent backflow and the push-in socket also closes when disconnected. This is considered a double-sided shut-off design. This is considered a double-sided shut-off design. The operating pressure range is -0.8 to 8.3 bar (-12 to 120 psi). The coupling is suitable for temperatures between -40 to 80 °C (-40 to 176 °F). The rated flow rate is 700 - 1500 l/min (for air) and 10 - 17 l/min (for water). The seal material is NBR.

It is connected to another component by inserting a plug into the sleeve until you hear a "click". Pressing the release button disconnects the plug. Plugs with or without a shut-off valve and of different materials will still work with this coupling.

To sterilize the coupling, you can use: formalin, isopropyl alcohol, ethyl alcohol

Pros:

• LinkTech couplings are resistant to most mild chemicals and they are suitable for chemical and medical applications
• LinkTech couplings are twist lock coupling and they are easy to use with audible click when coupled
• It can be used for vacuum applications
• The socket has a double sided shut-off design, which keeps the line pressurized and prevents backflow
• It has high resistance to mineral oils
