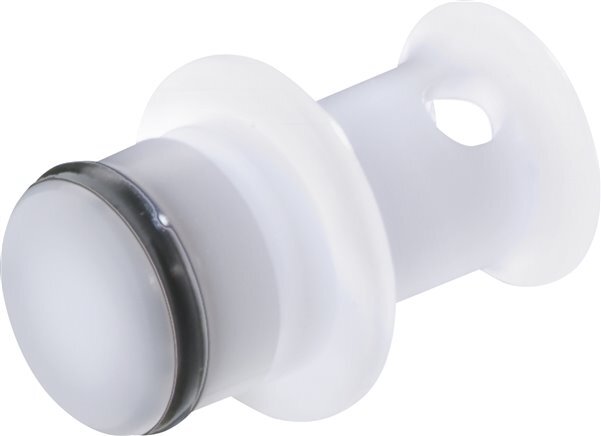

POM DN 6.4 Linktech Coupling Plug Double Shut-Off 40 Series
Notice: This product is discontinued
Polyoxymethylene (POM) DN 6.4 LinkTech coupling plug. The coupling has a non-return valve to prevent backflow and the push-in socket also closes when disconnected. The operating pressure range is -0.8 to 8.3 bar (-12 to 120 psi), making them suitable for vacuums. The coupling is suitable for temperatures between -40 to 80 °C (-40 to 176 °F). The flow rate is 560 - 2100 l/min (for air) and 6 - 18 l/min (for water).
Notice: This product is discontinued
Description
Polyoxymethylene (POM) DN 6.4 LinkTech coupling plug. This product can be used on pneumatic and liquid lines to quickly connect tools and lines together.
This coupling is suitable for vacuum applications. The coupling has a non-return valve to prevent backflow and the push-in socket also closes when disconnected. This is considered a double-sided shut-off design. This is considered a double-sided shut-off design. The operating pressure range is -0.8 to 8.3 bar (-12 to 120 psi). The coupling is suitable for temperatures between -40 to 80 °C (-40 to 176 °F). The rated flow rate is 560 - 2100 l/min (for air) and 6 - 18 l/min (for water).
It is connected to another component by inserting a plug into the sleeve until you hear a "click". Pressing the release button disconnects the plug.
To sterilize the coupling, you can use: formalin, isopropyl alcohol, ethyl alcohol
Pros:
- LinkTech couplings are resistant to most mild chemicals and they are suitable for chemical and medical applications
- LinkTech couplings are twist lock coupling and they are easy to use with audible click when coupled
- It can be used for vacuum applications
- The plug has a double sided shut-off design, which keeps the line pressurized and prevents backflow
- It has high resistance to mineral oils
