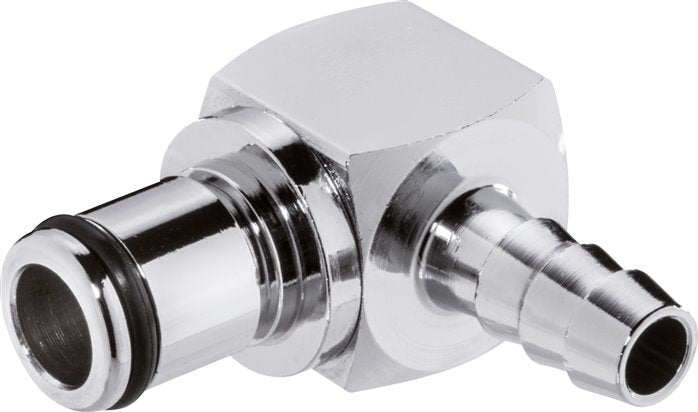

Brass DN 6.4 Linktech Coupling Plug 6.4 mm Hose Pillar 90-deg 40 Series
Notice: This product will be discontinued in the future
Brass DN 6.4 LinkTech coupling plug with 6.4 mm hose pillar. The operating pressure range is -0.8 to 17.3 bar (-12 to 251 psi), making them suitable for vacuums. The coupling is suitable for temperatures between -40 to 80 °C (-40 to 176 °F). The flow rate is 560 - 2100 l/min (for air) and 6 - 18 l/min (for water). The bend angle is 90 deg.
Notice: This product will be discontinued in the future
Description
Brass DN 6.4 LinkTech coupling plug. This product can be used on pneumatic and liquid lines to quickly connect tools and lines together.
Easily mount a hose over the 6.4 mm hose pillar. Optionally, order a hose clamp for proper fixation of the hose. This coupling is suitable for vacuum applications. The operating pressure range is -0.8 to 17.3 bar (-12 to 251 psi). The coupling is suitable for temperatures between -40 to 80 °C (-40 to 176 °F). The rated flow rate is 560 - 2100 l/min (for air) and 6 - 18 l/min (for water). The brass housing has a chromium-plated surface protection. The bend angle is 90 deg.
It is connected to another component by inserting a plug into the sleeve until you hear a "click". Pressing the release button disconnects the plug.
To sterilize the coupling, you can use: formalin, isopropyl alcohol, ethyl alcohol, gamma radiation, heating to max +121 °c (uncoupled)
Operating range: For applications with increased pressures or mechanical loads (e.g. due to frequent coupling). High resistance to mineral oils.
Pros:
- LinkTech couplings are resistant to most mild chemicals and they are suitable for chemical and medical applications
- LinkTech couplings are twist lock coupling and they are easy to use with audible click when coupled
- It can be used for vacuum applications
