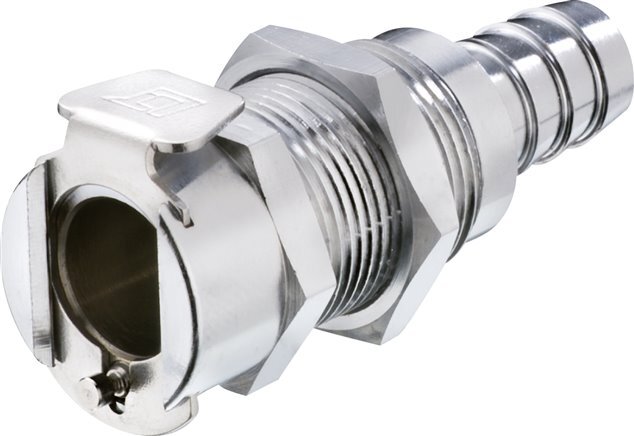

Brass DN 6.4 Linktech Coupling Socket 6.4 mm Hose Pillar Bulkhead 40 Series

Brass DN 6.4 LinkTech coupling socket and bulkhead thread. This product can be used on pneumatic and liquid lines to quickly connect tools and lines together.

Easily mount a hose over the 6.4 mm hose pillar. Optionally, order a hose clamp for proper fixation of the hose. The socket has bulkhead thread to mount it to a panel. This coupling is suitable for vacuum applications. The operating pressure range is -0.8 to 17.3 bar (-12 to 251 psi). The coupling is suitable for temperatures between -40 to 80 °C (-40 to 176 °F). The rated flow rate is 560 - 2100 l/min (for air) and 6 - 18 l/min (for water). The seal material is NBR. The brass housing has a chromium-plated surface protection.

It is connected to another component by inserting a plug into the sleeve until you hear a "click". Pressing the release button disconnects the plug. Plugs with or without a shut-off valve and of different materials will still work with this coupling.

To sterilize the coupling, you can use: formalin, isopropyl alcohol, ethyl alcohol, gamma radiation, heating to max +121 °c (uncoupled)

Operating range: For applications with increased pressures or mechanical loads (e.g. due to frequent coupling). High resistance to mineral oils.

Pros:

• LinkTech couplings are resistant to most mild chemicals and they are suitable for chemical and medical applications
• LinkTech couplings are twist lock coupling and they are easy to use with audible click when coupled
• The socket has bulkhead thread to mount it to a panel
• It can be used for vacuum applications
