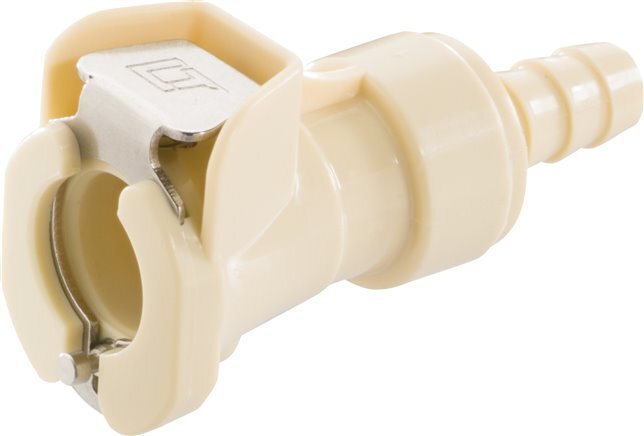

PP DN 6.4 Linktech Coupling Socket 9.5 mm Hose Pillar Beige 40 Series
Notice: This product is discontinued
Polypropylene (PP) DN 6.4 LinkTech coupling socket with 9.5 mm hose pillar. The operating pressure range is -0.8 to 8.3 bar (-12 to 120 psi), making them suitable for vacuums. The coupling is suitable for temperatures between 0 to 70 °C (32 to 158 °F). The flow rate is 560 - 2100 l/min (for air) and 6 - 18 l/min (for water). The seal material is EPDM. It has a beige color.
Notice: This product is discontinued
Description
Polypropylene (PP) DN 6.4 LinkTech coupling socket. This product can be used on pneumatic and liquid lines to quickly connect tools and lines together.
Easily mount a hose over the 9.5 mm hose pillar. Optionally, order a hose clamp for proper fixation of the hose. This coupling is suitable for vacuum applications. The operating pressure range is -0.8 to 8.3 bar (-12 to 120 psi). The coupling is suitable for temperatures between 0 to 70 °C (32 to 158 °F). The rated flow rate is 560 - 2100 l/min (for air) and 6 - 18 l/min (for water). The seal material is EPDM.
At temperatures above 27 °C, there is a max pressure rating reduction (40 °C: max 7 bar, 50 °C: max 6.5 bar, 60 °C: max 5.9 bar, 70 °C: max 5.2 bar).
It is connected to another component by inserting a plug into the sleeve until you hear a "click". Pressing the release button disconnects the plug. Plugs with or without a shut-off valve and of different materials will still work with this coupling.
To sterilize the coupling, you can use: formalin, isopropyl alcohol, ethyl alcohol, ethylene oxide, gamma radiation
Suitable for: Suited for use with many chemicals. Not resistant to mineral oils.
Pros:
- LinkTech couplings are resistant to most mild chemicals and they are suitable for chemical and medical applications
- LinkTech couplings are twist lock coupling and they are easy to use with audible click when coupled
- It can be used for vacuum applications
