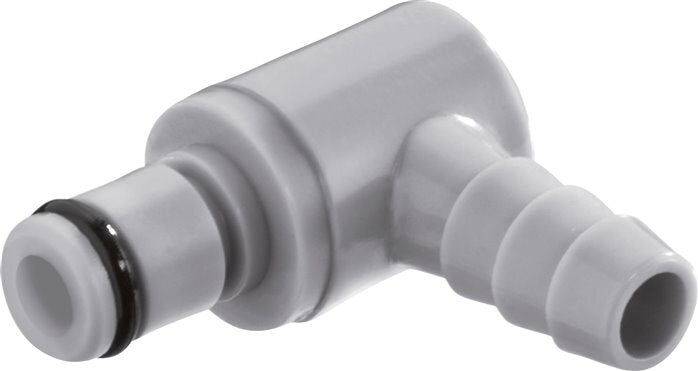

PP DN 3.2 Linktech Coupling Plug 3.2 mm Hose Pillar Grey 90-deg 20 Series
Notice: This product is discontinued
Polypropylene (PP) DN 3.2 LinkTech coupling plug with 3.2 mm hose pillar. The operating pressure range is -0.8 to 8.3 bar (-12 to 120 psi). The coupling is suitable for temperatures between 0 to 70 °C (32 to 158 °F). The flow rate is 50 - 500 l/min (for air) and 0.4 - 6.5 l/min (for water). It has a grey color. The bend angle is 90 deg.
Notice: This product is discontinued
Description
Polypropylene (PP) DN 3.2 LinkTech coupling plug. This product can be used on pneumatic and liquid lines to quickly connect tools and lines together.
Easily mount a hose over the 3.2 mm hose pillar. Optionally, order a hose clamp for proper fixation of the hose. The operating pressure range is -0.8 to 8.3 bar (-12 to 120 psi). The coupling is suitable for temperatures between 0 to 70 °C (32 to 158 °F). The rated flow rate is 50 - 500 l/min (for air) and 0.4 - 6.5 l/min (for water). The bend angle is 90 deg.
At temperatures above 27 °C, there is a max pressure rating reduction (40 °C: max 7 bar, 50 °C: max 6.5 bar, 60 °C: max 5.9 bar, 70 °C: max 5.2 bar).
It is connected to another component by inserting a plug into the sleeve until you hear a "click". Pressing the release button disconnects the plug.
To sterilize the coupling, you can use: formalin, isopropyl alcohol, ethyl alcohol, ethylene oxide, gamma radiation
Suitable for: Suited for use with many chemicals. Not resistant to mineral oils.
Pros:
- LinkTech couplings are resistant to most mild chemicals and they are suitable for chemical and medical applications
- LinkTech couplings are twist lock coupling and they are easy to use with audible click when coupled
