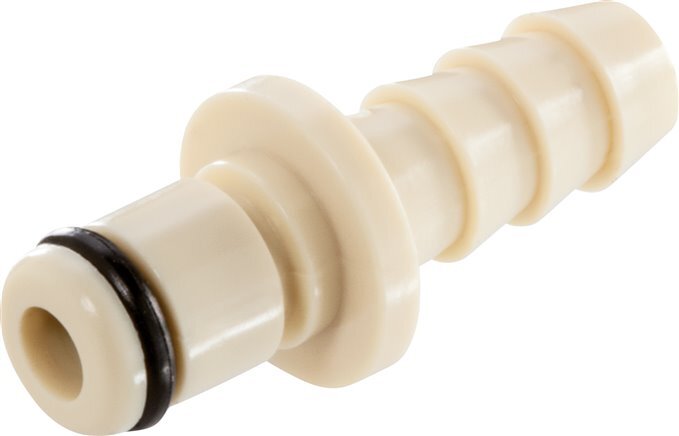

PP DN 3.2 Linktech Coupling Plug 3.2 mm Hose Pillar Double Shut-Off Beige 20 Series

Polypropylene (PP) DN 3.2 LinkTech coupling plug. This product can be used on pneumatic and liquid lines to quickly connect tools and lines together.

Easily mount a hose over the 3.2 mm hose pillar. Optionally, order a hose clamp for proper fixation of the hose. The coupling has a non-return valve to prevent backflow and the push-in socket also closes when disconnected. This is considered a double-sided shut-off design. This is considered a double-sided shut-off design. The operating pressure range is -0.8 to 8.3 bar (-12 to 120 psi). The coupling is suitable for temperatures between 0 to 70 °C (32 to 158 °F). The rated flow rate is 50 - 500 l/min (for air) and 0.4 - 6.5 l/min (for water).

At temperatures above 27 °C, there is a max pressure rating reduction (40 °C: max 7 bar, 50 °C: max 6.5 bar, 60 °C: max 5.9 bar, 70 °C: max 5.2 bar).

It is connected to another component by inserting a plug into the sleeve until you hear a "click". Pressing the release button disconnects the plug.

To sterilize the coupling, you can use: formalin, isopropyl alcohol, ethyl alcohol, ethylene oxide, gamma radiation

Suitable for: Suited for use with many chemicals. Not resistant to mineral oils.

Pros:

• LinkTech couplings are resistant to most mild chemicals and they are suitable for chemical and medical applications
• LinkTech couplings are twist lock coupling and they are easy to use with audible click when coupled
• The plug has a double sided shut-off design, which keeps the line pressurized and prevents backflow
