PP DN 3.2 Linktech Coupling Socket 1/8 inch Male NPT Threads Grey 20 Series
Notice: This product is discontinued

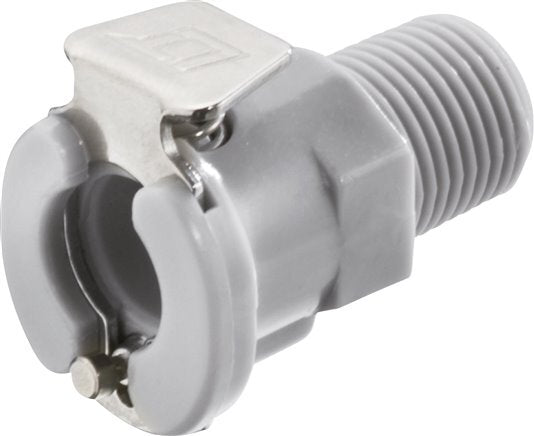

Polypropylene (PP) DN 3.2 LinkTech coupling socket with 1/8 inch male NPT threads. The operating pressure range is -0.8 to 8.3 bar (-12 to 120 psi). The coupling is suitable for temperatures between 0 to 70 °C (32 to 158 °F). The flow rate is 50 - 500 l/min (for air) and 0.4 - 6.5 l/min (for water). The seal material is EPDM. It has a grey color.
Notice: This product is discontinued
Description
Polypropylene (PP) DN 3.2 LinkTech coupling socket with 1/8 inch male NPT threads. This product can be used on pneumatic and liquid lines to quickly connect tools and lines together.
The 1/8 inch male NPT threads allow for it to be threaded onto a matching female threaded part. The operating pressure range is -0.8 to 8.3 bar (-12 to 120 psi). The coupling is suitable for temperatures between 0 to 70 °C (32 to 158 °F). The rated flow rate is 50 - 500 l/min (for air) and 0.4 - 6.5 l/min (for water). The seal material is EPDM.
At temperatures above 27 °C, there is a max pressure rating reduction (40 °C: max 7 bar, 50 °C: max 6.5 bar, 60 °C: max 5.9 bar, 70 °C: max 5.2 bar).
It is connected to another component by inserting a plug into the sleeve until you hear a "click". Pressing the release button disconnects the plug. Plugs with or without a shut-off valve and of different materials will still work with this coupling.
To sterilize the coupling, you can use: formalin, isopropyl alcohol, ethyl alcohol, ethylene oxide, gamma radiation
Suitable for: Suited for use with many chemicals. Not resistant to mineral oils.
Pros:
- LinkTech couplings are resistant to most mild chemicals and they are suitable for chemical and medical applications
- LinkTech couplings are twist lock coupling and they are easy to use with audible click when coupled
