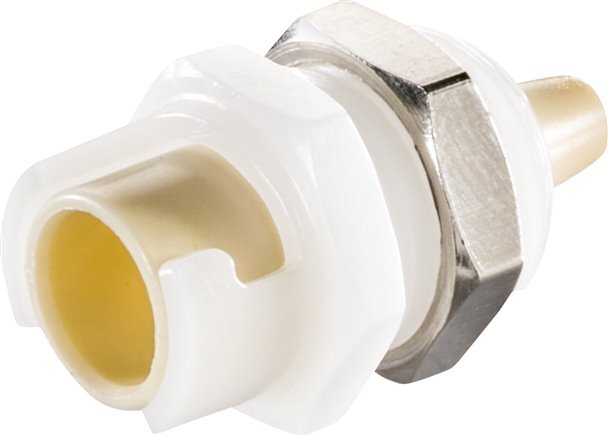

PP DN 1.6 Linktech Coupling Socket 3.2 mm Hose Pillar Bulkhead 10 Series

Polypropylene (PP) DN 1.6 LinkTech coupling socket and bulkhead thread. This product can be used on pneumatic and liquid lines to quickly connect tools and lines together.

Easily mount a hose over the 3.2 mm hose pillar. Optionally, order a hose clamp for proper fixation of the hose. The socket has bulkhead thread to mount it to a panel. This coupling is suitable for vacuum applications. The operating pressure range is -0.8 to 7 bar (-12 to 102 psi). The coupling is suitable for temperatures between 0 to 80 °C (32 to 176 °F). The rated flow rate is 40 - 200 l/min (for air) and 0.3 - 2.6 l/min (for water). The seal material is EPDM.

It is connected to another component by screwing a plug into the sleeve until you hear a "click". Plugs with or without a shut-off valve and of different materials will still work with this coupling. When coupled, the hose screw connection is able to rotate freely independent from the coupling, preventing any bends and twists in the hose. It is ideally used for Luer connectors in the medical industry.

To sterilize the coupling, you can use: formalin, isopropyl alcohol, ethyl alcohol, ethylene oxide, gamma radiation

Suitable for: Suited for use with many chemicals. Not resistant to mineral oils.

Pros:

• LinkTech couplings are resistant to most mild chemicals and they are suitable for chemical and medical applications
• LinkTech couplings are twist lock coupling and they are easy to use with audible click when coupled
• When coupled, the hose screw connections inside the bayonet connectors can be rotated freely and thus prevent the hose from becoming bent or twisted
• The socket has bulkhead thread to mount it to a panel
• It can be used for vacuum applications
