Eaton T0 20A 3-Pole Emergency Stop Main Switch - 081588

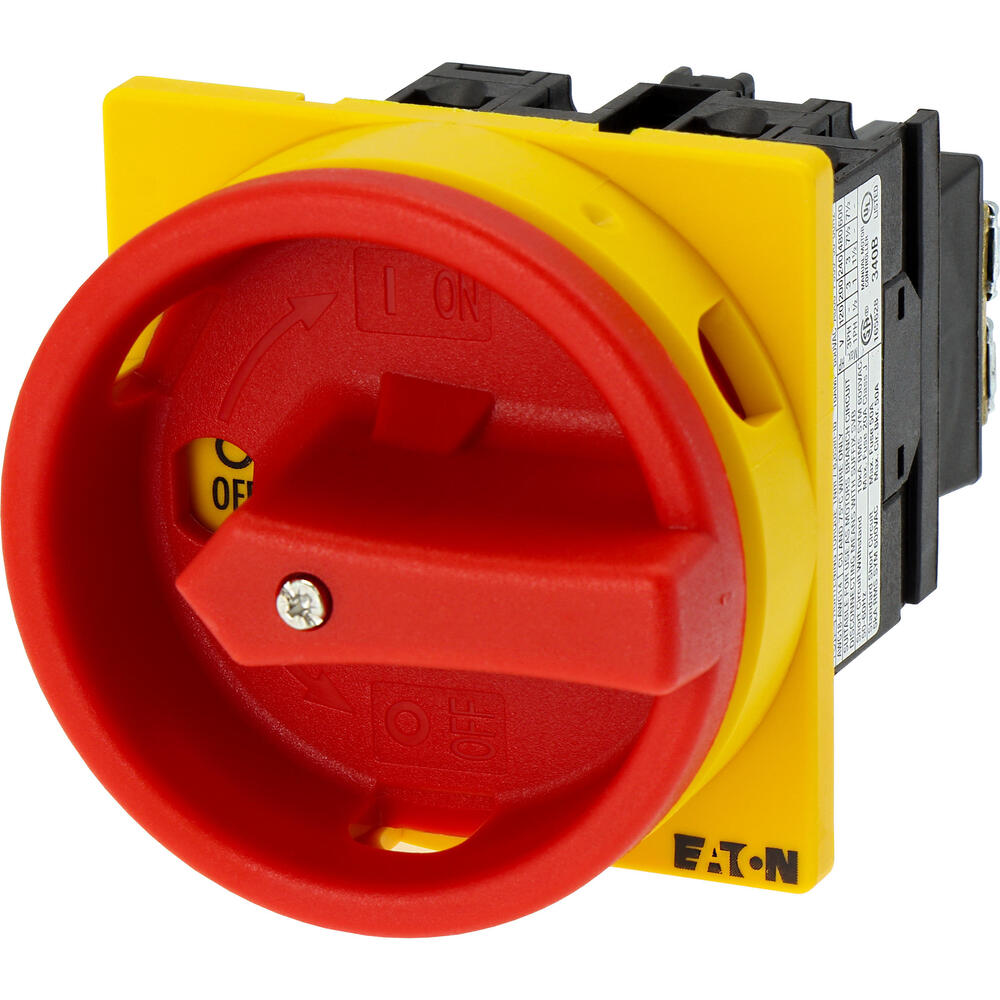

Industrial-grade 3-pole main switch with emergency stop function featuring a red rotary handle and yellow locking ring. Rated for 20A continuous current and 5.5kW motor load at 400V AC-23A. Offers IP65 front protection, 90° switching angle, and lockable OFF position. Designed for flush mounting with 2 contact units. Compliant with IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, and UL standards.
- Regular price
- $66.33 USD
We sell only to registered businesses
Description
Industrial-grade 3-pole main switch with emergency stop function featuring a red rotary handle and yellow locking ring. Rated for 20A continuous current and 5.5kW motor load at 400V AC-23A. Offers IP65 front protection, 90° switching angle, and lockable OFF position. Designed for flush mounting with 2 contact units. Compliant with IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, and UL standards.
Pros:
- IP65 front protection rating for harsh environments

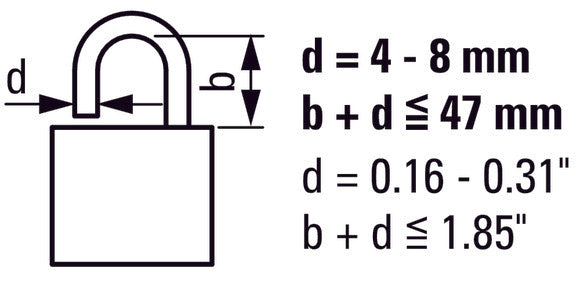

- Lockable in OFF position for maintenance safety
- Emergency stop function with visible status indication
- Multiple international safety certifications
