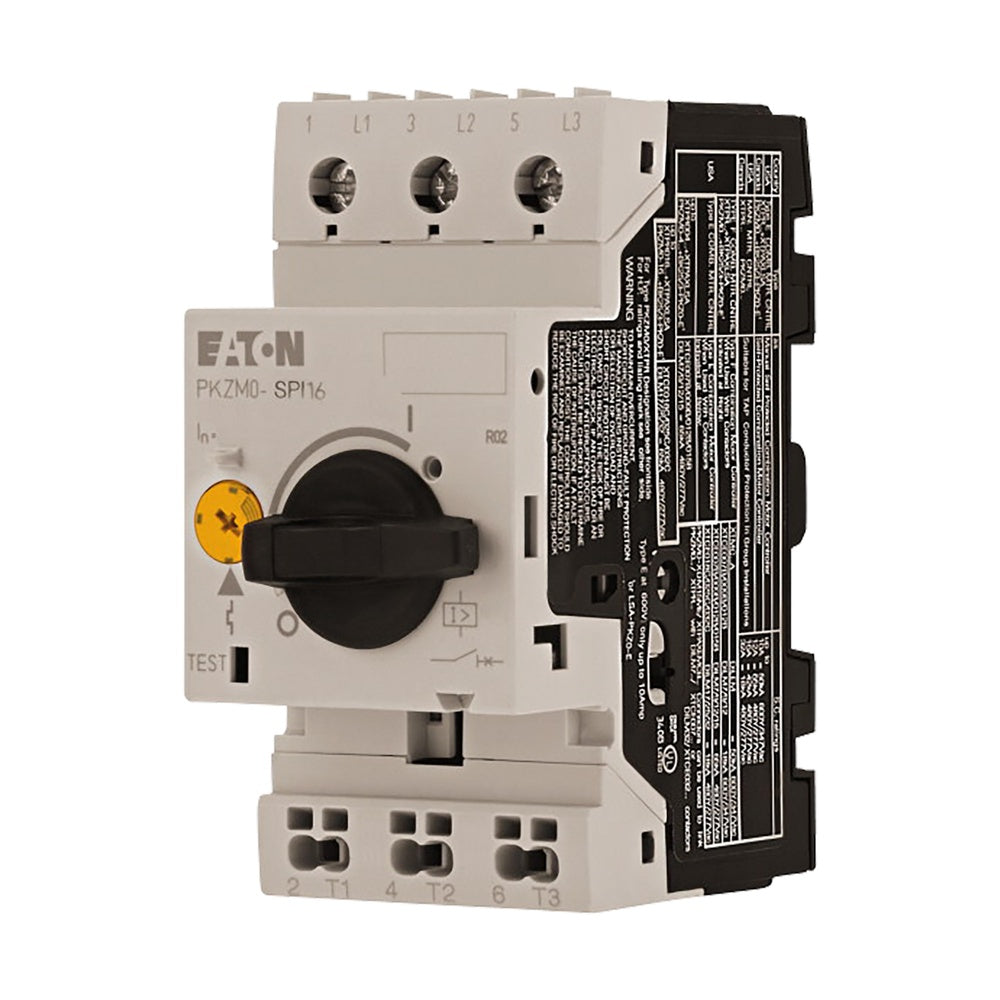

Eaton PKZM0 Motor Protection Circuit Breaker 1.6-2.5A - 199183
IEC/EN 60947-compliant motor protection circuit breaker featuring thermomagnetic switch-off technology and thermal protection. Rated for 1.6-2.5A with 150kA breaking capacity at 400V AC. Operates at 0.75kW (400V AC-3) with phase failure sensitivity. Features push-in and screw terminals, IP20 protection rating, and operating temperature range of -25°C to +55°C.
- Regular price
- $92.64 USD
We sell only to registered businesses
Description
IEC/EN 60947-compliant motor protection circuit breaker featuring thermomagnetic switch-off technology and thermal protection. Rated for 1.6-2.5A with 150kA breaking capacity at 400V AC. Operates at 0.75kW (400V AC-3) with phase failure sensitivity. Features push-in and screw terminals, IP20 protection rating, and operating temperature range of -25°C to +55°C.
Pros:
- High breaking capacity of 150kA at 400V AC
- Dual terminal options: push-in and screw connections
- Built-in phase failure protection
- Wide operating temperature range
