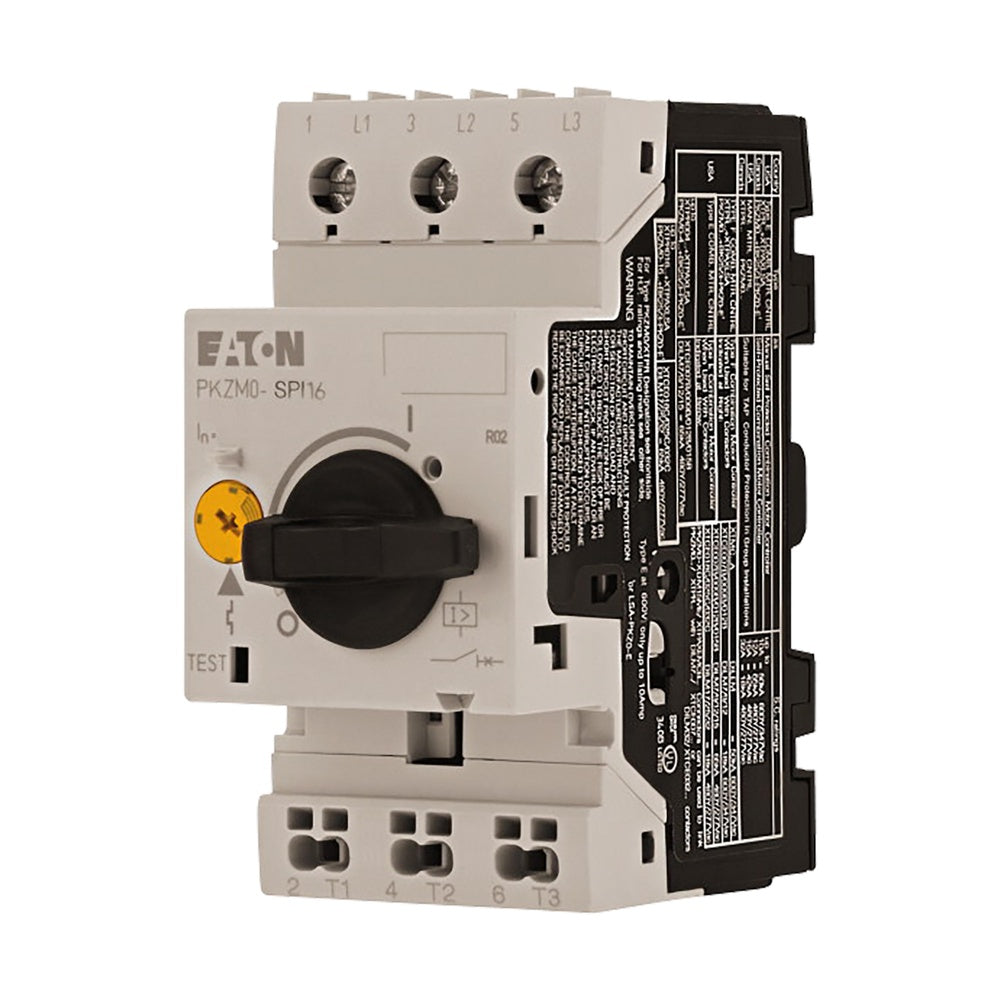

Eaton PKZM0 Motor Protection Circuit Breaker 1-1.6A - 199182
Industrial motor protection circuit breaker with thermomagnetic switch-off technology and 1-1.6A overload protection range. Features 150kA short-circuit breaking capacity at 400V AC, thermal protection, and phase failure sensitivity. Rated for 0.55kW operation power at AC-3 400V, with IP20 device protection rating. Supports multi-directional supply input and operates in temperatures from -25°C to +55°C.
- Regular price
- $92.58 USD
We sell only to registered businesses
Description
Industrial motor protection circuit breaker with thermomagnetic switch-off technology and 1-1.6A overload protection range. Features 150kA short-circuit breaking capacity at 400V AC, thermal protection, and phase failure sensitivity. Rated for 0.55kW operation power at AC-3 400V, with IP20 device protection rating. Supports multi-directional supply input and operates in temperatures from -25°C to +55°C.
Pros:
- High 150kA short-circuit breaking capacity at 400V AC
- Built-in thermal and phase failure protection
- Flexible installation with multi-directional supply input
- Wide operating temperature range -25°C to +55°C
