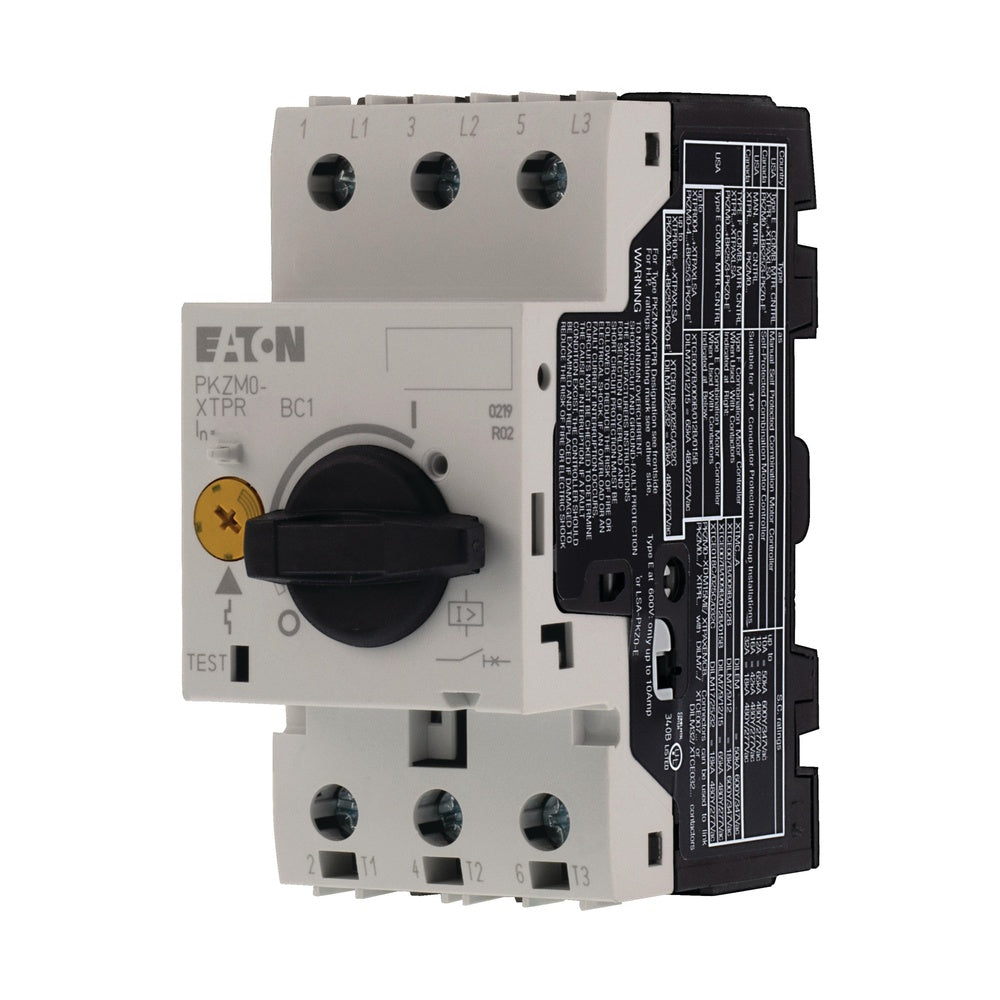

Eaton PKZM0-4-T 3-Pole Transformer Circuit Breaker 2.5-4A - 088914

Notice: This product will be discontinued in the future

Discontinued
Eaton PKZM0-4-T 3-Pole Transformer Circuit Breaker 2.5-4A - 088914
Eaton PKZM0-4-T 3-Pole Transformer Circuit Breaker 2.5-4A - 088914
Eaton PKZM0-4-T 3-Pole Transformer Circuit Breaker 2.5-4A - 088914
Eaton PKZM0-4-T 3-Pole Transformer Circuit Breaker 2.5-4A - 088914
Eaton PKZM0-4-T 3-Pole Transformer Circuit Breaker 2.5-4A - 088914
Eaton PKZM0-4-T 3-Pole Transformer Circuit Breaker 2.5-4A - 088914
Eaton PKZM0-4-T 3-Pole Transformer Circuit Breaker 2.5-4A - 088914
Eaton PKZM0-4-T 3-Pole Transformer Circuit Breaker 2.5-4A - 088914
Eaton PKZM0-4-T 3-Pole Transformer Circuit Breaker 2.5-4A - 088914
Eaton PKZM0-4-T 3-Pole Transformer Circuit Breaker 2.5-4A - 088914
Eaton PKZM0-4-T 3-Pole Transformer Circuit Breaker 2.5-4A - 088914
Eaton PKZM0-4-T 3-Pole Transformer Circuit Breaker 2.5-4A - 088914
Eaton PKZM0-4-T 3-Pole Transformer Circuit Breaker 2.5-4A - 088914
Eaton PKZM0-4-T 3-Pole Transformer Circuit Breaker 2.5-4A - 088914
Eaton PKZM0-4-T 3-Pole Transformer Circuit Breaker 2.5-4A - 088914
Eaton PKZM0-4-T 3-Pole Transformer Circuit Breaker 2.5-4A - 088914
Reference: E3XC6
Brand: EATON INDUSTRIES
Mfr. Part: 088914

Industrial-grade 3-pole transformer circuit breaker with adjustable overload protection (2.5-4A range) and instant short-circuit release. Features phase failure sensitivity, 690V rated operating voltage, and IP20 protection rating. Includes screw terminals for secure connections and snap fitting capability. Compatible with auxiliary contacts and voltage release accessories.

View all

Notice: This product will be discontinued in the future

Description
Specifications
Downloads

Description

Industrial-grade 3-pole transformer circuit breaker with adjustable overload protection (2.5-4A range) and instant short-circuit release. Features phase failure sensitivity, 690V rated operating voltage, and IP20 protection rating. Includes screw terminals for secure connections and snap fitting capability. Compatible with auxiliary contacts and voltage release accessories.

Pros:

  • Adjustable overload protection range of 2.5-4A
  • Phase failure sensitive for enhanced protection
  • High operating voltage rating of 690V
  • Compatible with auxiliary contacts and voltage releases

Downloads

Installation and Maintenance (EN)
pdf
Download
Installation and Maintenance (EN)
pdf
Download
Installation and Maintenance (EN)
pdf
Download
Brochure (EN)
pdf
Download
Compliance and Certification (EN)
pdf
Download
Compliance and Certification (EN)
pdf
Download

Specifications

Rated permanent current Iu
4 A
Rated voltage
690..690 V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
150 kA
Overload release current setting
2.5..4 A
Adjustment range short-term delayed short-circuit release
0..0 A
Adjustment range undelayed short-circuit release
84..84 A
Integrated earth fault protection
No
Type of electrical connection of main circuit
Screw connection
Device construction
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
Yes
DIN rail (top hat rail) mounting optional
Yes
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
With switched-off indicator
Yes
With integrated under voltage release
No
Number of poles
3
Position of connection for main current circuit
Other
Type of control element
Turn button
Complete device with protection unit
No
