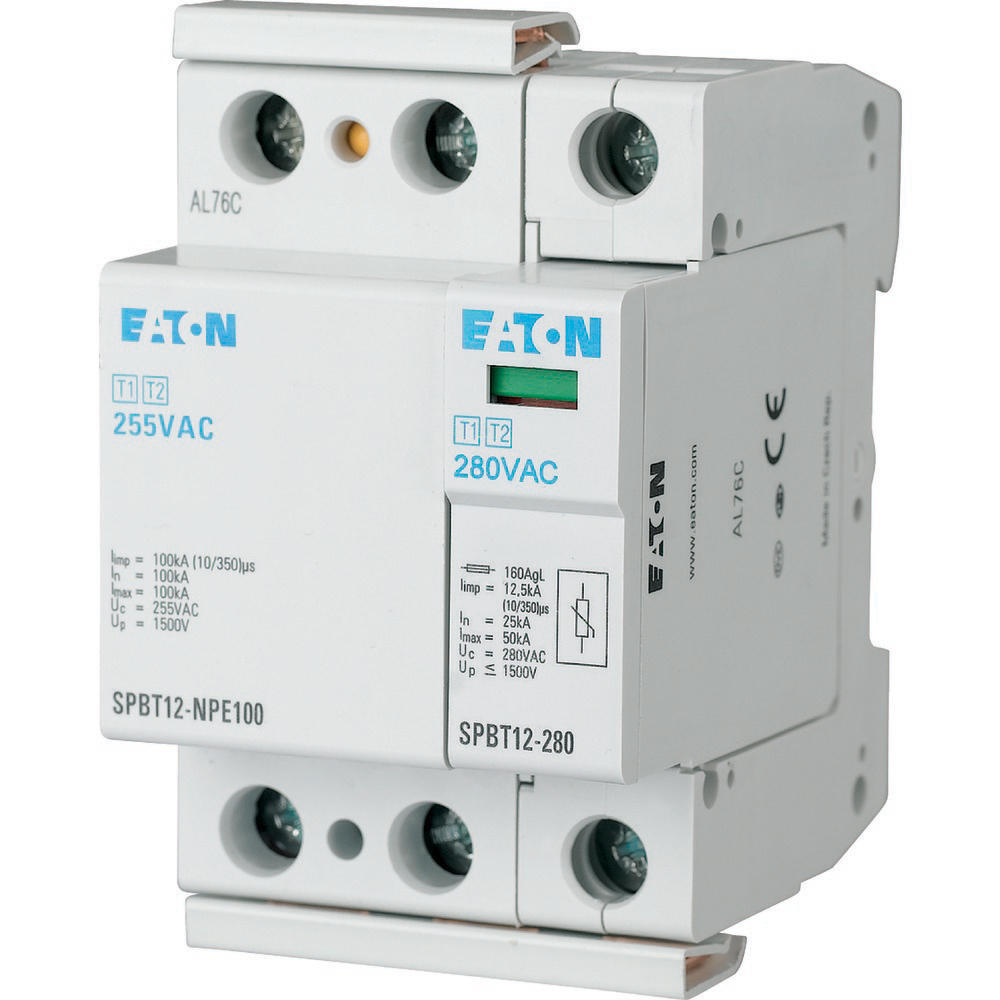

Eaton Lightning Current And Surge Arresters Kit TN-S/TT 1+NPE - 158308
The Eaton Industries Xpole combined energy technology arrestor is compatible with TN, TN-S, TT, and other network forms. It has 2 poles and a maximum continuous voltage of AC 280V. Its lightning impulse (10/350) is 12.5kA, nominal voltage AC 280V, and safety levels of 1.5kV L-N and 100kV N-PE. The device is suitable for protecting consumer systems against transient overvoltages caused by direct and indirect lightning strikes and switching operations in compliance with IEC 60364-5-53 section 534 and IEC 61643-1. The device falls under SPD-type T1, T2 according to EN 61643-11 standards and adheres to lightning protection classes III and IV as per IEC 62305. Please note, this type does not include remote signaling.
- Regular price
- $621.59 USD
We sell only to registered businesses
Description
The Eaton Industries Xpole combined energy technology arrestor is compatible with TN, TN-S, TT, and other network forms. It has 2 poles and a maximum continuous voltage of AC 280V. Its lightning impulse (10/350) is 12.5kA, nominal voltage AC 280V, and safety levels of 1.5kV L-N and 100kV N-PE. The device is suitable for protecting consumer systems against transient overvoltages caused by direct and indirect lightning strikes and switching operations in compliance with IEC 60364-5-53 section 534 and IEC 61643-1. The device falls under SPD-type T1, T2 according to EN 61643-11 standards and adheres to lightning protection classes III and IV as per IEC 62305. Please note, this type does not include remote signaling.
