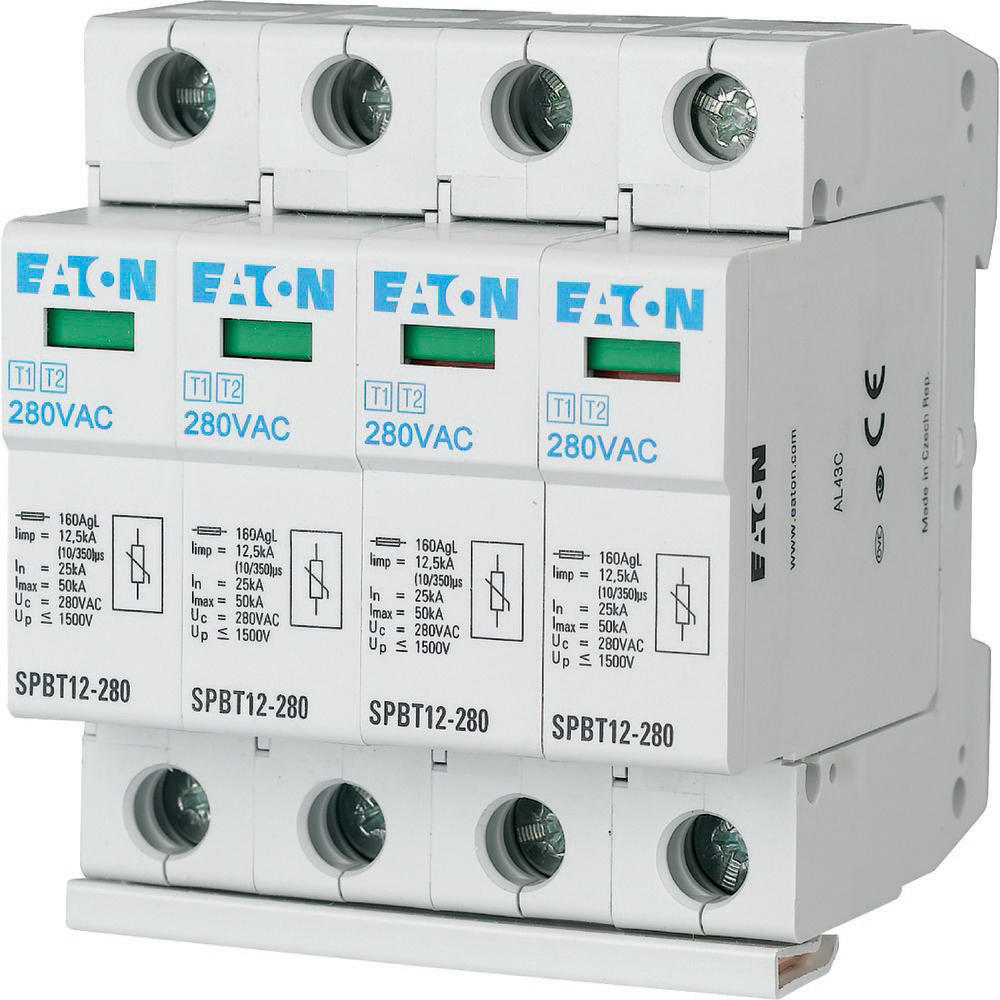

Eaton Lightning Current And Surge Arrester TN-S Set 4P - 158331
The Eaton Industries Xpole combined surge protector is suitable for energy technology applications, compatible with TN, TN-S, and other network forms. It features 4 poles, and can handle a lightning surge (10/350) of 12.5kA. It operates at a maximum continuous voltage of AC 280V and a nominal voltage of AC 280V. The device boasts a safety level of 1.5kV and an L-PE safety level of 1.5kV. It includes a maximum overcurrent protection and 160A series. Created to protect consumer systems from transient overvoltages due to direct and indirect lightning strikes and switching operations, it complies with IEC 60364-5-53 section 534, is an iI according to IEC 61643-1 and is an SPD-type T1, T2 according to EN 61643-11. It meets lightning protection classes III and IV per IEC 62305 and does not include remote signaling.
- Regular price
- $265.23 USD
We sell only to registered businesses
Description
The Eaton Industries Xpole combined surge protector is suitable for energy technology applications, compatible with TN, TN-S, and other network forms. It features 4 poles, and can handle a lightning surge (10/350) of 12.5kA. It operates at a maximum continuous voltage of AC 280V and a nominal voltage of AC 280V. The device boasts a safety level of 1.5kV and an L-PE safety level of 1.5kV. It includes a maximum overcurrent protection and 160A series. Created to protect consumer systems from transient overvoltages due to direct and indirect lightning strikes and switching operations, it complies with IEC 60364-5-53 section 534, is an iI according to IEC 61643-1 and is an SPD-type T1, T2 according to EN 61643-11. It meets lightning protection classes III and IV per IEC 62305 and does not include remote signaling.
