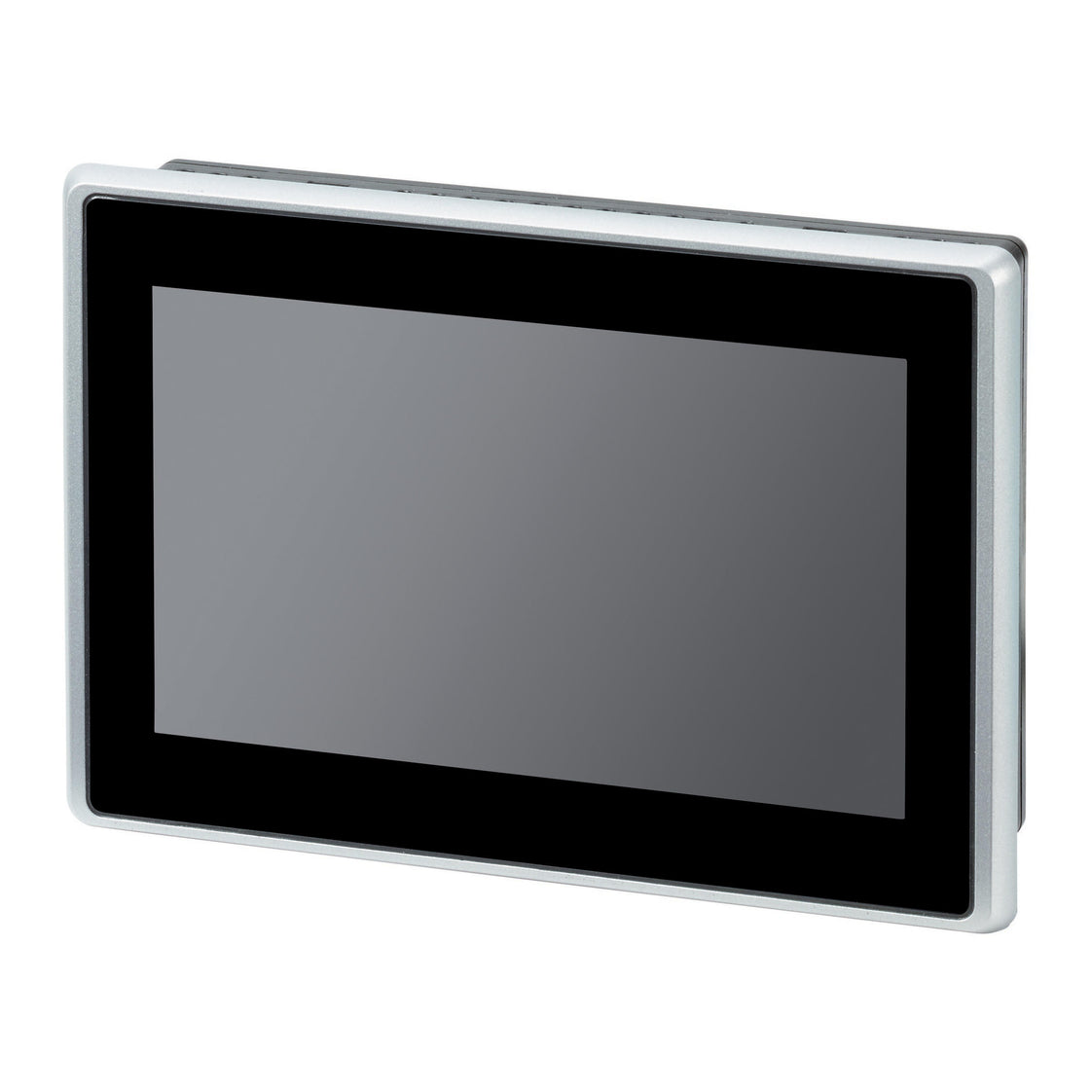

EATON INDUSTRIES XV Graphic Panel - 179650

EATON INDUSTRIES XV Graphic Panel - 179650
Image may vary slightly
See specifications for accurate information.
Reference: E374E
Brand: EATON INDUSTRIES
Mfr. Part: 179650

Eaton XV-303 Control panel with PLC, 24 V DC, 7 Inches PCT-Display, 1024x600 pixels, 2xEthernet, 1xRS232, 1xRS485, 1xCAN, 1xSD card slot.

View all
Regular price
$1945.77
excl VAT

In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 1 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Description
Specifications
Downloads

The "Multi-Touch Display with PLC, XV-303, belongs to the product range XV300 7z. Its function is HMIC-PLC with integrated PLC. This control panel comes with a second Ethernet port. The common features of this model series include an Ethernet interface, CAN, USB device, USB Host, RS232, RS485 and a slot for an SD card. The operating system is Windows Embedded Compact 7 Pro and it includes an integrated runtime visualization software license.

The display type is color display, TFT, anti-glare. It utilizes capacitive multi-touch technology (PCT). The number of colors it supports is 16777216 (Color depth 24 bit). The resolution is WSVGA, 1024 x 600 Pixel. It is possible to use it in portrait format. The screen diagonal is 7 inches, in widescreen.

The enclosure is made of plastic, and the glass panel is in a plastic frame. The operating system is Windows Embedded Compact 7 Pro. It includes a PLC license. No license certificates are required for onboard interfaces. The built-in interfaces include:

  • 2 x Ethernet 10/100 Mbps,
  • 1 x RS232,
  • 1 x RS485,
  • 1 x CANopen/easyNet,
  • 1 x USB host 2.0, and
  • 1 x USB device.

The front type is anti-glare tempered glass in a plastic bezel. It is designed for flush mounting. There is one slot for an SD card. Memory card automation is optionally available with an SD card. However, it does not include pluggable communication cards. The touch sensor is a multi-touch touch panel. The heat dissipation is 14.4 W.

The degree of protection is IP65 in the front as per EN 60529-1, IP20 on the rear as per EN 60529-1, NEMA 4X, and NEMA12 as per NEMA 250-2003.
