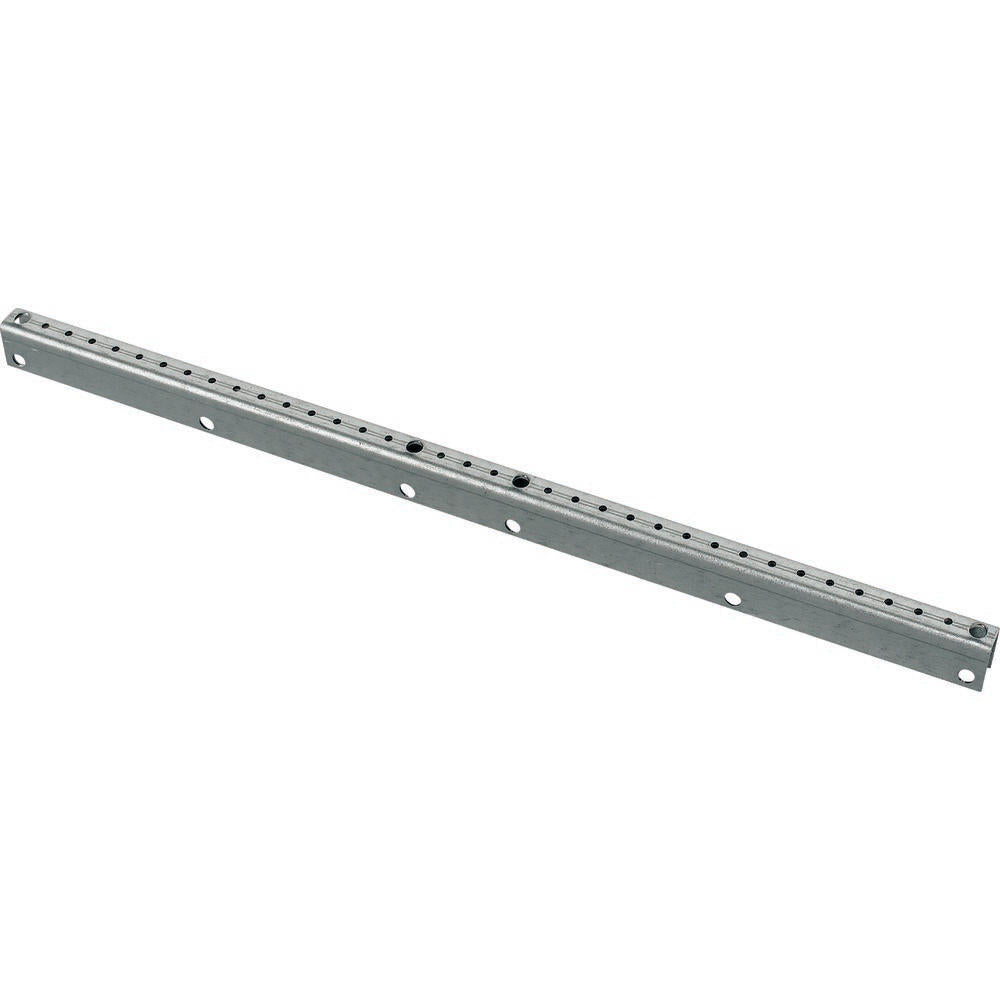

Eaton Horizontal Mounting Rail 715mm For Module Width 750mm - 143853

Eaton Horizontal Mounting Rail 715mm For Module Width 750mm - 143853
Eaton Horizontal Mounting Rail 715mm For Module Width 750mm - 143853
Image may vary slightly
See specifications for accurate information.
Reference: E3J6C
Brand: EATON INDUSTRIES
Mfr. Part: 143853

The Eaton Industries XBoard XVTL EP profile for cabinet/desk is a steel-based product with a length of 16mm. It is designed using metrical specifications and features a screw fixation. This profile has a height of 16mm for the supporting rail. The EP system is a standard flush-mounting system intended for surface mounting. It comes with factory-finished, type-tested switchgear assemblies. The surface of the product is galvanized for better durability and performance.

View all
Note: product cannot be returned
$14.56
excl VAT
In stock +16 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 16 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 18 - 19 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Eaton Industries XBoard XVTL EP profile for cabinet/desk is a steel-based product with a length of 16mm. It is designed using metrical specifications and features a screw fixation. This profile has a height of 16mm for the supporting rail. The EP system is a standard flush-mounting system intended for surface mounting. It comes with factory-finished, type-tested switchgear assemblies. The surface of the product is galvanized for better durability and performance.

Downloads

Specifications

Length (mm)
25
Width (mm)
The product's width without packaging.
715
Height (mm)
The product's height without packaging.
16
Slit width (mm)
9.5
Material thickness (mm)
2
Profile shape
U-profile
Model
Singular profile
Type of perforation
3 sides punched
Hole width (mm)
3.6
With toothing
No
Snap-off
No
Load bearing capacity (kN)
0
Area moment of inertia Iy (cm4)
0
Area of inertia Iz (cm4)
0
Moment of resistance Wy (cm³)
0
Moment of resistance Wz (cm³)
0
Suitable for circuit integrity
No
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Steel
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Other
Surface protection
The type of surface protection of the component.
Galvanic/electrolytic zinc plated
Color
Other
RAL-number
0
Weight (kg)
0.582
