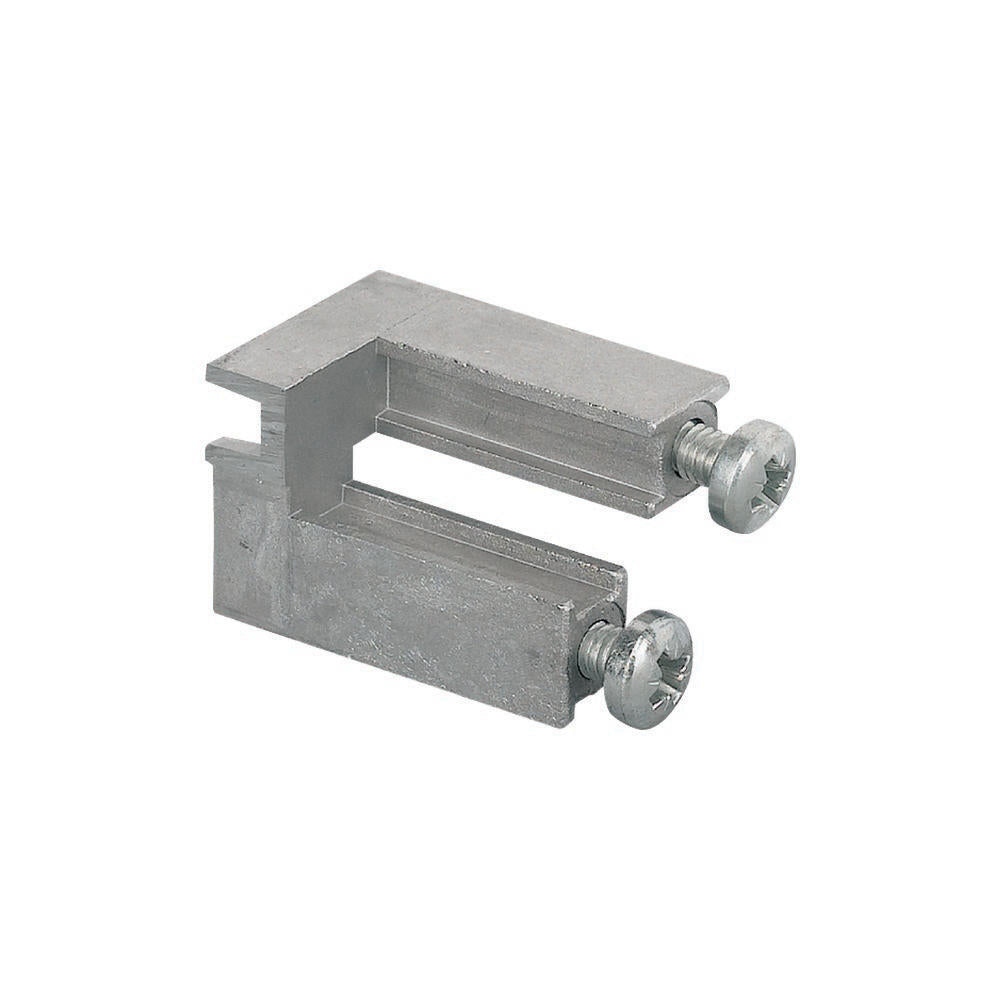

Eaton EPTV05 Half Angle Connector Set - 143862

Eaton EPTV05 Half Angle Connector Set - 143862
Eaton EPTV05 Half Angle Connector Set - 143862
Image may vary slightly
See specifications for accurate information.
Reference: E3J6K
Brand: EATON INDUSTRIES
Mfr. Part: 143862

The Eaton Industries XBoard XVTL EP profile is an integral component for cabinet or desk assemblies, fabricated from robust steel and designed to a metric standard. Its installation necessitates the use of screw attachments, boasting a length of 32mm. The profile also comes with a galvanized surface finish for extra durability and resistance. This component forms part of the standard flush-mounting EP system, which is a type-tested solution designed explicitly for the surface mounting of factory-finished switchgear assemblies.

View all
$6.96
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 42 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Eaton Industries XBoard XVTL EP profile is an integral component for cabinet or desk assemblies, fabricated from robust steel and designed to a metric standard. Its installation necessitates the use of screw attachments, boasting a length of 32mm. The profile also comes with a galvanized surface finish for extra durability and resistance. This component forms part of the standard flush-mounting EP system, which is a type-tested solution designed explicitly for the surface mounting of factory-finished switchgear assemblies.

Downloads

Specifications

Length (mm)
54
Width (mm)
The product's width without packaging.
28.5
Height (mm)
The product's height without packaging.
32
Slit width (mm)
9.5
Material thickness (mm)
2
Profile shape
U-profile
Model
Singular profile
Type of perforation
3 sides punched
Hole width (mm)
3.6
With toothing
No
Snap-off
No
Load bearing capacity (kN)
0
Area moment of inertia Iy (cm4)
0
Area of inertia Iz (cm4)
0
Moment of resistance Wy (cm³)
0
Moment of resistance Wz (cm³)
0
Suitable for circuit integrity
No
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Steel
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Other
Surface protection
The type of surface protection of the component.
Galvanic/electrolytic zinc plated
Color
Other
RAL-number
0
Weight (kg)
0.075
