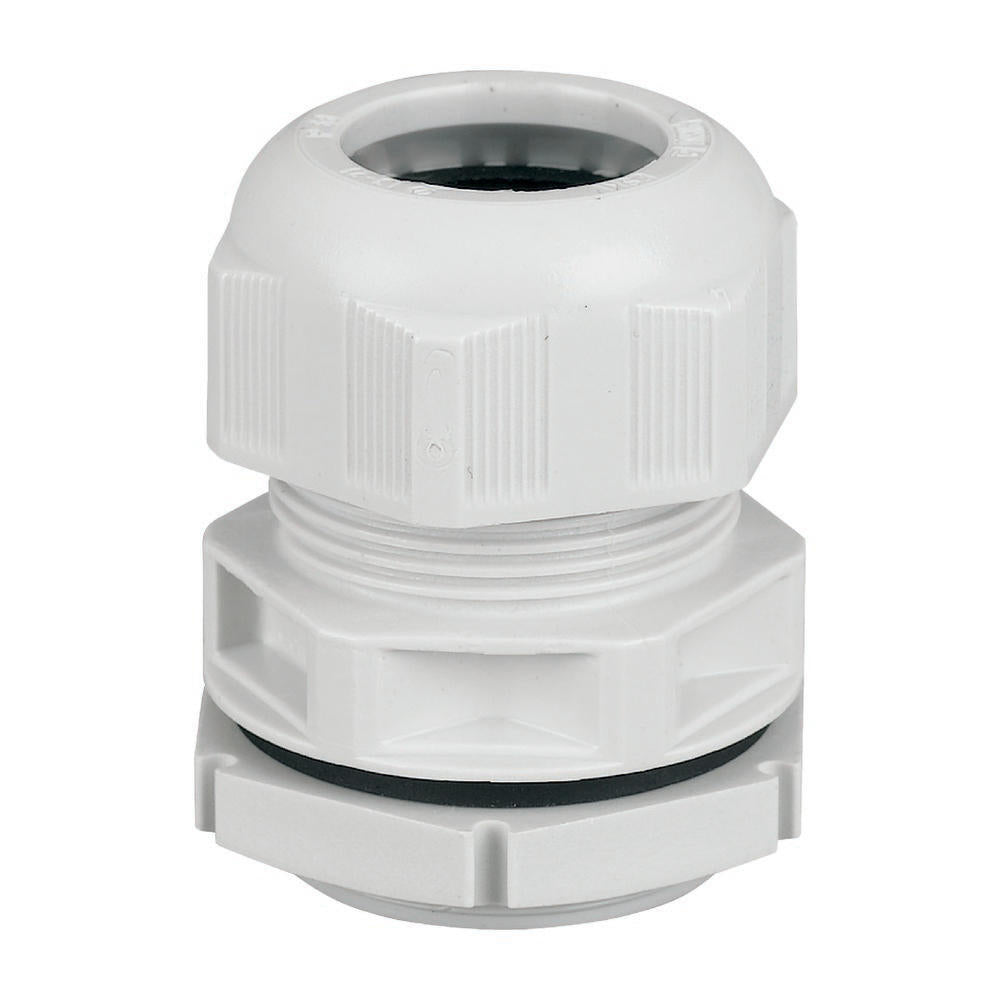

Eaton Cable Gland M63 RAL 7035 IP68 - 214835
Notice: This product will be discontinued in the future
This Eaton Industries switchgear is a gray, polyamide cable gland with a straight cable or tube entry and a metric thread type. It has a nominal thread size of metric/Pg 63, a nominal thread size in NPT/gas tube, and a thread pitch of 1.5mm. The thread length is 15mm, and it has a key width of 68mm. It's appropriate for cable diameters ranging from 34 - 48mm. It comes with a cable entry of M63, drilling dimensions of 63.5mm, and is suitable for NYM/NYY type cables, specifically 4-wire NYM 4x35mm². It is IP68 rated up to 5 bar for 30 minutes, is halogen-free and flammability classified as V2 according to UL94. It is also complete with a lock nut and built-in strain relief.
Notice: This product will be discontinued in the future
Description
This Eaton Industries switchgear is a gray, polyamide cable gland with a straight cable or tube entry and a metric thread type. It has a nominal thread size of metric/Pg 63, a nominal thread size in NPT/gas tube, and a thread pitch of 1.5mm. The thread length is 15mm, and it has a key width of 68mm. It's appropriate for cable diameters ranging from 34 - 48mm. It comes with a cable entry of M63, drilling dimensions of 63.5mm, and is suitable for NYM/NYY type cables, specifically 4-wire NYM 4x35mm². It is IP68 rated up to 5 bar for 30 minutes, is halogen-free and flammability classified as V2 according to UL94. It is also complete with a lock nut and built-in strain relief.
