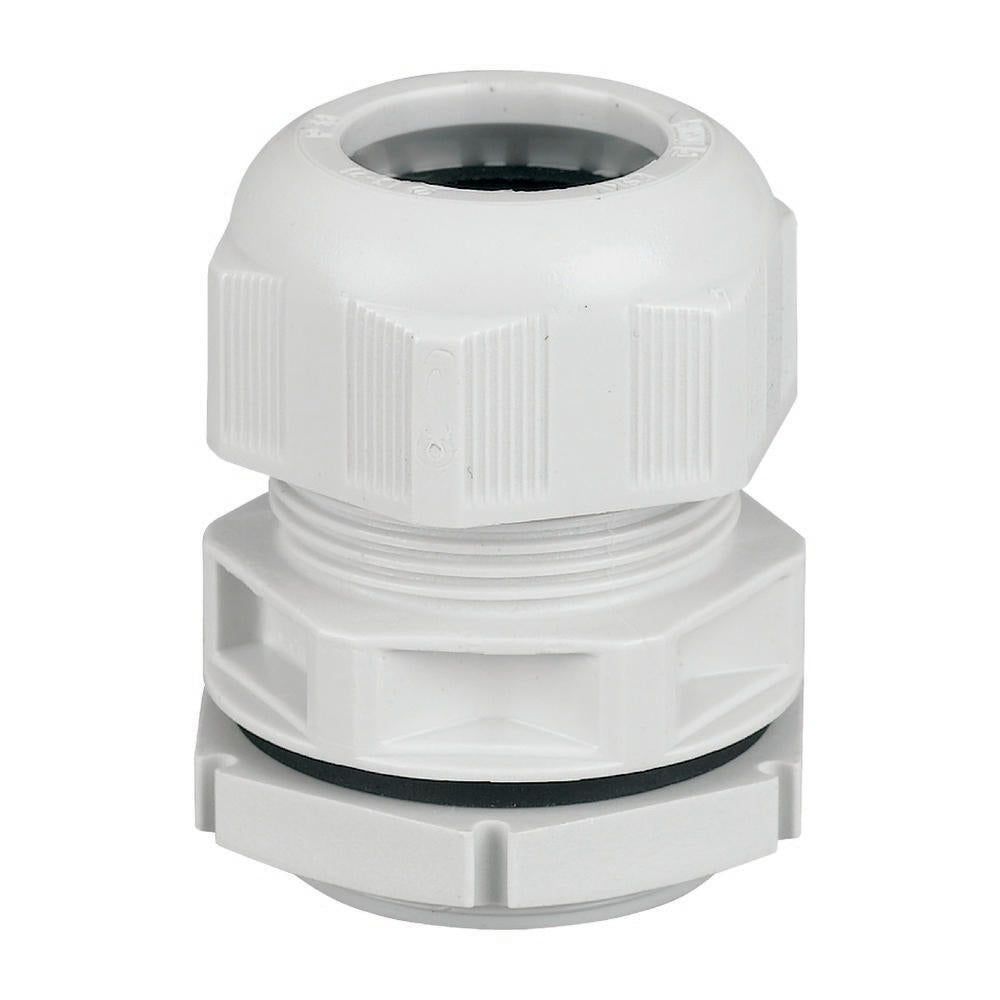

Eaton Cable Gland M20 RAL 7035 IP68 6-12mm Metric - 206910 [2 pieces]
Notice: This product will be discontinued in the future
![Eaton Cable Gland M20 RAL 7035 IP68 6-12mm Metric - 206910 [2 pieces]](http://tameson.com/cdn/shop/files/e3fse-00.d0954b73.jpg?v=1718840872)
![Eaton Cable Gland M20 RAL 7035 IP68 6-12mm Metric - 206910 [2 pieces]](http://tameson.com/cdn/shop/files/e3fse-00.d0954b73.jpg?height=232&v=1718840872&width=232)
The Eaton Industries CI K cable gland is designed for straight cable or pipe entry, constructed from gray plastic with a metric thread type. It has a nominal metric/Pg 20 thread size, an alternate nominal thread size in inch NPT/gas pipe. The thread pitch measures 1.5mm and the thread length is 10mm. Its key width is 30mm and it is suitable for cable diameters between 6 and 13mm. Drilling dimensions are 20.5mm. It can be utilized with NYM/NYY cable, 4-wire=H05VV-F4x2.5/3x4, and NYM 5x1.5/5x2.5mm². Its protection degree is IP68 up to 5 bar for 30 minutes, it is made from halogen-free polyamide, color is RAL 7035. It comes with a lock nut and built-in strain relief. Its flammability classification is V2 according to UL94.
Contains 2 pieces
Notice: This product will be discontinued in the future
Description
The Eaton Industries CI K cable gland is designed for straight cable or pipe entry, constructed from gray plastic with a metric thread type. It has a nominal metric/Pg 20 thread size, an alternate nominal thread size in inch NPT/gas pipe. The thread pitch measures 1.5mm and the thread length is 10mm. Its key width is 30mm and it is suitable for cable diameters between 6 and 13mm. Drilling dimensions are 20.5mm. It can be utilized with NYM/NYY cable, 4-wire=H05VV-F4x2.5/3x4, and NYM 5x1.5/5x2.5mm². Its protection degree is IP68 up to 5 bar for 30 minutes, it is made from halogen-free polyamide, color is RAL 7035. It comes with a lock nut and built-in strain relief. Its flammability classification is V2 according to UL94.
