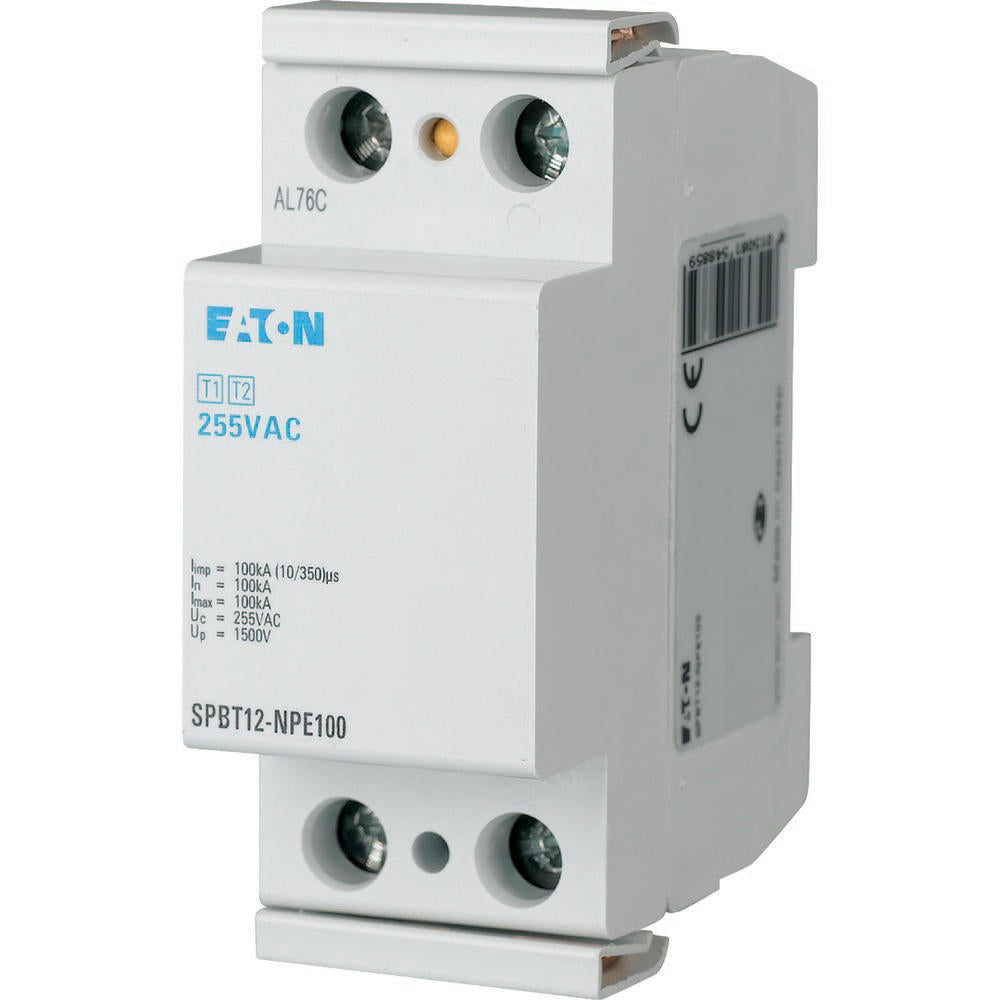

Eaton 100kA Lightning Current and Surge Arrester Unit - 158307
The Eaton Industries Xpole is a combined arrester for energy technology, designed to protect consumer systems against transient overvoltages caused by direct and indirect lightning strikes as well as switching operations. It operates within a TN network shape and other network forms, featuring 1 pole and a lightning impulse current (10/350) of 100kA. This device ensures maximum continuous voltage and nominal voltage at AC 255V, with a safety level of 1.5kV, and safety levels at N-PE 1.5kV and L-PE 1.5kV. Use this device in line with IEC 60364-5-53 section 534 standards and installation category II as per IEC 61643-1. It's a surge protection device of type T1 and T2 as per EN 61643-11, suitable for lightning protection classes III and IV as per IEC 62305.
- Regular price
- $498.48 USD
We sell only to registered businesses
Description
The Eaton Industries Xpole is a combined arrester for energy technology, designed to protect consumer systems against transient overvoltages caused by direct and indirect lightning strikes as well as switching operations. It operates within a TN network shape and other network forms, featuring 1 pole and a lightning impulse current (10/350) of 100kA. This device ensures maximum continuous voltage and nominal voltage at AC 255V, with a safety level of 1.5kV, and safety levels at N-PE 1.5kV and L-PE 1.5kV. Use this device in line with IEC 60364-5-53 section 534 standards and installation category II as per IEC 61643-1. It's a surge protection device of type T1 and T2 as per EN 61643-11, suitable for lightning protection classes III and IV as per IEC 62305.
