DN 25 C4400 Flange Seal Up To PN 40 DVGW/BAM/KTW/TA Luft [5 Pieces]
![DN 25 C4400 Flange Seal Up To PN 40 DVGW/BAM/KTW/TA Luft [5 Pieces]](http://tameson.com/cdn/shop/files/s2emw_00.ff6402e9.jpg?v=1718694354)
![DN 25 C4400 Flange Seal Up To PN 40 DVGW/BAM/KTW/TA Luft [5 Pieces]](http://tameson.com/cdn/shop/files/s2emw_00.ff6402e9.jpg?height=232&v=1718694354&width=232)

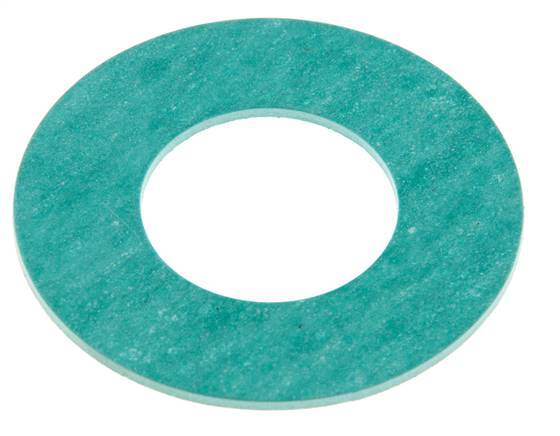

This flange seal has an inner diameter of 35 mm, an outer diameter of 70 mm and a thickness of 2 mm. The flange is made of C4400 aramid fiber with NBR and is suitable for oils, refrigerants, hot water, steam, gases, salt solutions, fuels, acids, hydrocarbons and lubricants. It can be used for DN 25 flanges up to PN 40.
Suitable for temperatures from -100 to 150°C (-148 to 302°F). Suitable for a max operating pressure of up to 40 bar (580 psi) and has a pressure stability of 25 N/mm2.
Contains 5 pieces
- Regular price
- $10.45 USD
Description
This flange seal has an inner diameter of 35 mm, an outer diameter of 70 mm and a thickness of 2 mm. The flange is made of C4400 aramid fiber with NBR and is suitable for oils, refrigerants, hot water, steam, gases, salt solutions, fuels, acids, hydrocarbons and lubricants. It can be used for DN 25 flanges up to PN 40.
Suitable for temperatures from -100 to 150°C (-148 to 302°F). Suitable for a max operating pressure of up to 40 bar (580 psi) and has a pressure stability of 25 N/mm2.
Pros:
- DVGW and BAM tested
- KTW recommended
- TA Luft certified
- Made of asbestos-free material
