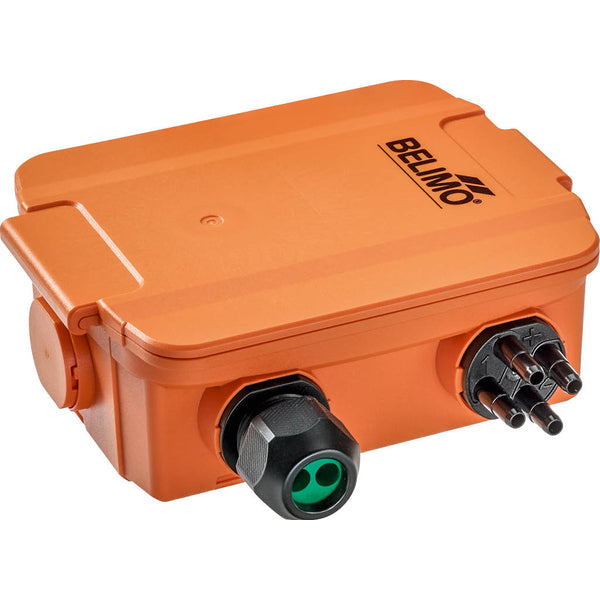

Belimo Differential Pressure Sensor -0.001..0.025bar 0-5V/0-10V Air Dual Modbus RTU 22ADP-154D
This Belimo differential pressure sensor is designed to measure differential pressure with a range of -0.001 to 0.025 bar. The power supply voltage is 24 V AC/DC. The differential pressure sensor has a protection rating of IP65. The pressure sensor communicates via Modbus RTU for efficient data transfer. The differential pressure sensor has two independent measuring systems, each with eight selectable ranges and an output of 0-5 V/0-10 V. This pressure sensor is designed to monitor the differential pressure of air and other non-aggressive, non-flammable gases. This differential pressure sensor is commonly used in HVAC systems to monitor air filters, fan V-belts, and fire and smoke control dampers.
- Regular price
- $359.64
Description
This Belimo differential pressure sensor is designed to measure differential pressure with a range of -0.001 to 0.025 bar. The power supply voltage is 24 V AC/DC. The differential pressure sensor has a protection rating of IP65. The pressure sensor communicates via Modbus RTU for efficient data transfer. The differential pressure sensor has two independent measuring systems, each with eight selectable ranges and an output of 0-5 V/0-10 V. This pressure sensor is designed to monitor the differential pressure of air and other non-aggressive, non-flammable gases. This differential pressure sensor is commonly used in HVAC systems to monitor air filters, fan V-belts, and fire and smoke control dampers.
Pros:
- Eight selectable differential pressure ranges for adaptability
- Sensor stores calculation formulas from major manufacturers
- Demonstrates excellent zero-point stability with high precision
- Choose between auto-zero or manual calibration for flexibility
- Offers the option of two independent measurement systems for added versatility
